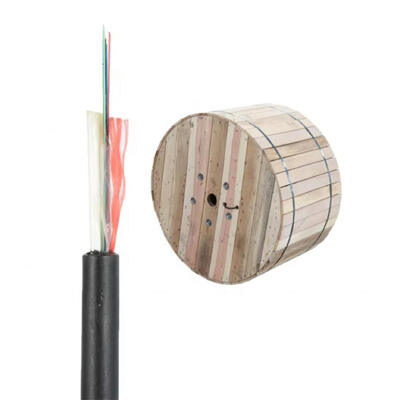

Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable 100M 200M Span
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-M/ADSS-G652D-xxFO |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | wooden roll, wooden pallet |
| Delivery Time | 3~5 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 10,000km/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | PE, LDPE, HDPE | Name | Outdoor Fiber Optic Cable |
|---|---|---|---|
| Length | 2km~3km Each Roll | Cable Type | Mini ADSS |
| Fiber | Single Mode | Cores | 2 Cores To 24 Cores |
| Color | Black | Diameter | 6.5mm |
| Part Number | KCO-M/ADSS-G652D-xxFO | ||
| Highlight | ASU fiber optic cable with warranty,Mini ADSS outdoor fiber optic cable,fiber optic cable 100M 200M span |
||
Product Description
ASU Fiber Optic Cable / Mini ADSS Outdoor Fiber Optic Cable
Aerial 6fo 12fo 24fo ASU fiber optic cable / Mini ADSS Outdoor Fiber Optic Cable with 100M-200M span capabilities.
What is ASU Fiber Optic Cable?
ASU Fiber Optic Cable (Aerial Self-Supporting Universal Cable) is a non-armored uni-tube optical cable with fibers placed in loose buffer tubes. The cable core is protected with jelly to prevent water intrusion and migration, and covered with a black polyethylene outer jacket. Two embedded FRP or metallic wires provide desired tension.
This robust, all-dielectric cable is designed for overhead deployment on utility poles, featuring integrated strength members (like FRP) for self-support, eliminating messenger wires, and resisting electromagnetic interference. Ideal for telecom, data center, and access networks requiring high-speed, reliable aerial connectivity.

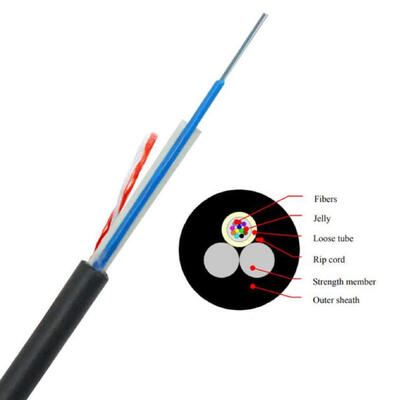

ASU Fiber Optical Structure
ASU Fiber Optic Cable Advantages
- Faster Speeds & Larger Capacity: Transmits data via light for high bandwidth
- Durability: Weatherproof materials withstand harsh outdoor conditions
- Cost-Effective Installation: Self-supporting design reduces labor and materials
ASU Fiber Optic Cable Characteristics
- Large span lengths with maximum span over 1700 meters
- Non-metallic material with high insulating properties and lightning-proof performance
- Special anti-track outer sheath protection with strong anti-electro-corrosion ability
- Aramid yarn ensures tensile resistance and provides good bullet-proof performance
- Light weight with small diameter, reducing ice and wind loads as well as tower load
- Can be installed without shutting off power
Applications
- Outdoor deployment
- Suitable for aerial and pipeline laying methods
- Long distance and local area network communication
Cable Mechanical Characteristics
| Item | Contents | Value |
|---|---|---|
| Loose tube | Number | 1 |
| Outer diameter (mm) | 2.1 | |
| Thickness | 0.3 | |
| Materials | PBT | |
| Water blocking | Tube filling compound | |
| Strength member | Materials | FRP |
| Diameter (mm) | 2.0 | 2.5 | |
| Number | 2 | |
| Water blocking | Material | Water blocking yarn |
| Sheath | Material | HDPE |
| Color | Black | |
| Rip cord | Number | 1.2 |
| Cable diameter (mm) Approx | 6.5±0.5 | 7.5±0.5 | |
| Cable weight (kg/km) Approx | 45 | 65 | |
| Span (m) | 80 | 120 | |
| MAT | 690 | 980 | |
Fiber Characteristics
| Fiber style | Unit | MM |
|---|---|---|
| Condition | nm | 850/1300 |
| Attenuation | dB/km ≤3.0/1.0 | |
| Dispersion | 1550nm Ps/(nm*km) | Dispersion |
| 1625nm Ps/(nm*km) | ||
| Bandwidth | 850nm MHZ.KM | Bandwidth |
| 1300nm MHZ.KM | ||
| Zero dispersion wavelength | nm | ≧ 1295, ≤1320 |
| Zero dispersion slope | nm | |
| PMD Maximum Individual Fiber | ≤0.11 | |
| PMD Design Link Value | Ps(nm2*km) | |
| Fibre cutoff wavelength λc | nm | |
| Cable cutoff wavelength λcc | nm | |
| MFD | 1310nm um | |
| 1550nm um | ||
| Numerical Aperture (NA) | 0.200+/-0.015 | |
| Step (mean of bidirectional measurement) | dB | ≤0.10 |
| Irregularities over fiber length and point | dB | ≤0.10 |
Fiber Color Coding
Blue
Orange
Green
Brown
Grey
White
Red
Black
Yellow
Violet
Pink
Aqua
OEM/ODM Service
We offer comprehensive OEM and ODM services. You can display your own brand logo on the cable, packaging bag, label, or any other location as required.
Packing
- Standard export packing
- Carton box, wooden box, wooden pallet
Shipping
- International express: UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
