LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection

  • LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection
  • LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection
  • LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number LSH-SC/APC-SM-SX-xM-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector LSH SC/APC Mode Single Mode
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 3.0mm
Length 1.0m, 2.0m, 3.0m,4.0m Core 9/125
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description

LSH SC/APC Auto Shutter Connector Fiber Opic Jumper Patch Cord LSZH PVC FTTH



LSH SC/APC Auto Shutter Connector Fiber Opic Jumper Patch Cord is the perfect fit for in-house fiber network with sophisticated dust and laser protection mechanism. Can make with LSZH or PVC or Armored Cable. It is easy to plug in/out, both shutters on connector and adapter can be opened and closed automatically when the connector is being plugged into or pulled out of the adapter, rightly avoiding dust or other contamination and eliminating safety concerns caused by laser contact.



Ordering options:

1 Connector type: LSH SC/APC

2 Ferrule End-face: APC

3 Core Type: Single mode 9/125 G652D/ G657A/ G655

4 Cable Diameter: φ3.0mm, φ2.0mm, φ0.9mm

5 Cable Length: 1, 2, 3, 5, 7, 10, 15 meters or customized

6 Cable type: PVC, LSZH



Features:

  • Anti-rotation protection
  • Compatible with standard SC adapters
  • Automatic shutter consisting of plastic, as protection against laser radiation as well as dust
  • Shutter resistant up to 0,5 Watt laser power at a wavelength of 1550 nm
  • Ø 2.5 mm, Zirconia, axially spring-loaded Ferrule
  • Cable diameter 3.0mm
  • 200 Mating cycles
  • Strain relief≥ 150 N
  • Operating temperature -40°C to +85°C
  • Storage temperature -40°C to +85°C
  • Versions: Simplex / multimode; Simplex / singlemode; Simplex / singlemode APC 8°

Application:

- CATV

- Active dvice termination

- Telecommunication networks

- Metro

- High speed rail way

- Local Area Networks(LANs)

- Data Processing networks

- Test Equipment

- Premise installations.

- Wide Area Networks(WANs)



Product Photos:

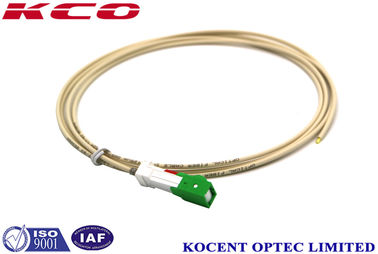

LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection 0

LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection 1

LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection 2

LSH SC/APC Fiber Optic Patch Cord LSZH PVC FTTH Auto Shutter Connector Anti Rotation Protection 3



Specification:

Mode SM MM
Polish UPC APC PC
Insertion Loss

Typical ≤0.2dB

Maximum ≤0.3dB

 ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB (1000 times mating)
Tensile Strengh > 10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity

≤0.2dB (+25+65 93 R.H.100 hours)



A patch cord is a fiber optic cable used to attach one device to another for signal routing.Normally, there are 4 types connector: FC/SC/LC/ST.. 3 types ferrule: PC, UPC, APC…



Fiber Optical Patch Cord Summary:

A fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver and the terminal box.

Patch cords are important and effective in networking. They provide interconnection between the optical transmission equipment and the patch panel in the wiring closet.



About Fiber optic connector , the ITU call it as a kind of passive light component which can connect two or more fiber lines stably but not always. It can make a close connection for fiber cable and make a wonderful transmission for the light energy.



OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.





Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea
