Single Mode Simplex High Return Loss MPO Adapter and MTP Adapter Fiber Optic Adapter

  • Single Mode Simplex High Return Loss MPO Adapter and MTP Adapter Fiber Optic Adapter
  • Single Mode Simplex High Return Loss MPO Adapter and MTP Adapter Fiber Optic Adapter
  • Single Mode Simplex High Return Loss MPO Adapter and MTP Adapter Fiber Optic Adapter
  • Single Mode Simplex High Return Loss MPO Adapter and MTP Adapter Fiber Optic Adapter
Place of Origin Guangdong, China
Brand Name kCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number MPO-adt
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 3~5 working days
Payment Terms Western Union,T/T,L/C
Supply Ability 500,000pcs/month
Product Details
Material Plastic Durability 0.3dB
IL 0.3dB Wave Length 1260~1650nm
Type MPO-MPO Operating Temperature -40~+70 Degree
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

Up to Down MPO/APC Single Mode Simplex With Flange Fiber Optic Adapter — MTP Adaptor, Green.

The MPO adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve that holds the two ferrules together. The MPO adapter comes standard in black for plastic, or metal housing for die cast. The MTP Connector Adapter has an SC footprint, reduced flange, is aqua-colored, and comes with 2 dust caps.

The adapter body is made of Polyethermide, the spring clip is made of stainless steel, and the dust cap is made of polycarbonate — all selected to reduce the potential for debris generation. It is configured with an Opposed Key Orientation, meaning the connectors are key-up to key-down. It works for any MTP Connector from 4 fiber to 72 fiber and is widely used in trunk cabling and cassettes. It meets appropriate standards and is perfect for your parallel optics and MTP Adapter needs.

Key Features
  • Meets IEC 61754-7 and TIA/EIA 604-5 standards for MPO/MTP interfaces
  • Internal shutter is available
  • Keyway available for key-up to key-up or key-up to key-down configurations
  • Low insertion loss, high return loss
  • High precision of mechanical dimensions
  • High reliability & stability
  • Ceramic or Bronze sleeve options
  • PC, APC, UPC polish options
  • Simplex / Duplex configurations
  • Hybrid adapter optional
Applications
  • Widely used in ODF and telecommunication networks
  • Optical communication systems
  • Optical instruments and measuring appliances
  • Optical fiber sensors
  • CATV
  • Active device termination
  • Metro networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Test equipment
  • Premise installations
  • Gigabit Ethernet
  • Video transmission
Product Pictures

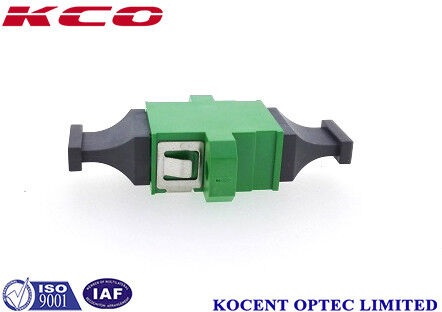

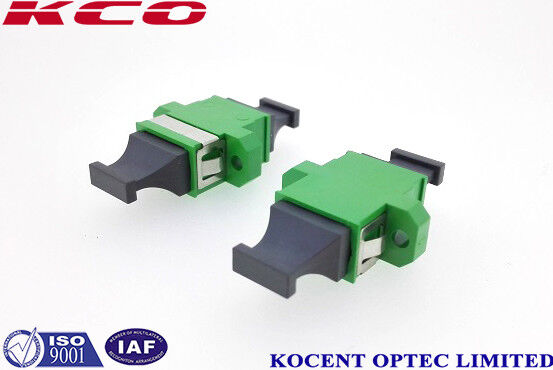

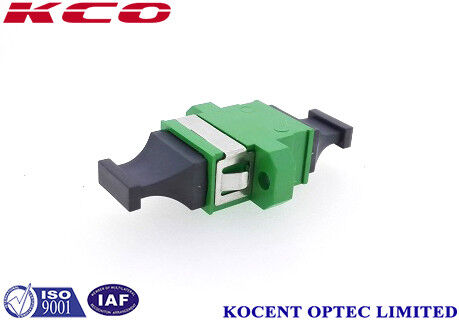

MPO APC Single Mode Simplex Fiber Optic Adapter with green housing and flange, front view MPO APC Single Mode Simplex Fiber Optic Adapter with dust caps, angled view showing keyway orientation
Specifications
Housing UL-Rated Plastic or Die Cast
Clip & Shutter Stainless Steel
Durability < 0.3dB change, 500 mating cycles
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +85℃
Environmental & Mechanical Properties
Properties Test Condition Conformance Test Result
Vibration 10–55Hz, 1.5mm, 60min IEC61300-2-1 ≤0.2dB
Mating Durability 1000 Mating, clean every 25 mating IEC61300-2-2 ≤0.2dB
Impact 1.5m, 8 drops IEC61300-2-6 ≤0.2dB
Strength of Coupling Mechanism 40N, 10Min, L=22–28cm IEC61300-2-12 ≤0.2dB
Temperature Cycling 40ºC to +75ºC, 40 cycles IEC61300-2-22 ≤0.2dB
Temperature Humidity Cycling 40ºC, 95%, 96Hr IEC61300-2-21 ≤0.2dB
Operating Temperature -40ºC to +85ºC — ≤0.2dB
Storage Temperature -40ºC to +85ºC — ≤0.2dB
OEM / ODM Service

If you want to display your own brand LOGO on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Packing

According to standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
MPO APC fiber optic adapter packaging and shipping configuration view
