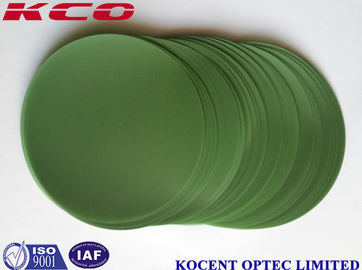

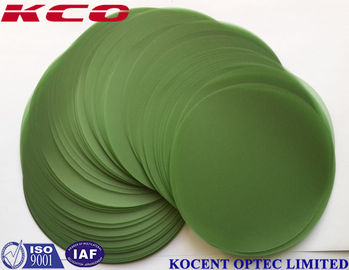

127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish

  • 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish
  • 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish
  • 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001
Model Number KCO-30u
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-30 Grade 30um
Polishing Scope Ceramic Ferrule, Metal Ferrule Disk Size Φ127mm(5inch)
Sheet Size 127mm Thickness 30um
Highlight

fiber optic polishing machine

,

fiber optic cutting machine
Leave a Message
Product Description
127mm 30U 15U 9U 3U 1U Glue Removing Optical Fiber Polishing Machine Film Lapping Pad Diamond Grinding Paper
Product Description
127mm 30U Glue Removing Fiber Optic Polishing Film Lapping Pad Diamond Grinding Paper

The fiber optic polishing film, also called fiber optic grinding film, is available in both cost-effective Chinese versions and high-quality Japanese versions.

Key Features
  • Essential final item in fiber optic jumper wire grinding procedure
  • Minimizes scratches with no binding left on fiber surface after polishing
  • Long service life effectively reduces jumper costs
  • Coated with precisely graded minerals (diamond, aluminum oxide, silicon carbide, etc.) on high-strength polyester backing
  • Available in 0.01-45 μm grades, with or without PSA (Pressure Sensitive Adhesive) backing
  • Designed for high volume manufacturing with quick change tooling
  • APC back reflection as low as -70 dB, UPC back reflection as low as -60 dB
  • Insertion loss 0.2 dB typical with super centering accuracy
  • Evenly-sprayed particles on coated surfaces
  • Combines advantages of fixed and dissociated polishing modes
  • Suitable for dry, water or oil medium polishing
  • Durable polishing rate compared to existing polishing films
Product Images
127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish 0 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish 1 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish 2 127mm 30um Diamond Grinding Paper for Ceramic Ferrule Polishing with Uniform Finish 3
Applications
Product Type Application
D (Diamond)
  • Lapping for Fiber optic connector, fiber array, glass pig tail
  • Polishing for magnetic heads and hard disks
  • Lapping and polishing for optical glasses, optical crystal, LED
  • Lapping and polishing for Semiconductor wafer
  • Edge polishing for silicon wafer
SC (Silicon Carbide)
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
  • Fine finishing and polishing for magnetic heads
AO (Aluminum Oxide)
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in Solar cells
  • Polishing for hard disks
  • Polishing for ITO
  • Lapping and polishing for optical crystal
CO (Cerium Oxide)
  • The final polishing for fiber optical connectors
  • Polishing for optical devices
SO (Silicon Oxide) The final super-precise polishing of optical fiber connector
Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20 White
16 White
15 Yellow-Green Tawny Light Green Brown
12 Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5 Gray-green White
3 Pink Tan Pink & White
2 Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow White White
0.3 White Dark Red
0.2 Grey
0.1 Light Brown White
0.02 Transparent
0.01 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water

Standard Size: Disk: Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch)
Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch)
Note: Other film sizes are available upon request.
