Corner Pressure Fiber Optic Polishing Equipment SC/UPC 36 Connector Polishing Jigs
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001 |
| Model Number | KCO-4JIG-SCU-36A |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T, Western Union, L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-4JIG-SCU-36A | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | SC/UPC Connector | Disk Size | 179mm |
| Connector | 36 Connector | Machine | Corner Pressure Polishing Machine |
| High Light | fiber optic polishing machine,fiber optic cutting machine |
||
Product Description

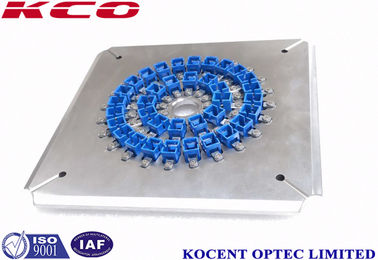

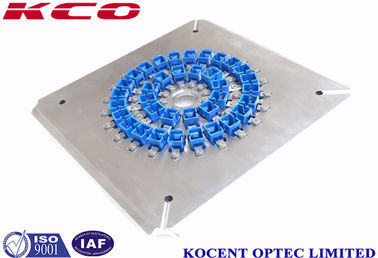

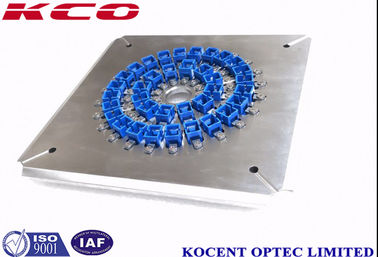

Corner Pressure Polishing Machine SC/UPC 36 Connector Polishing Jigs
Description:
This polishing jigs is designed for corner pressure fiber optic polishing machine only. It has 36 SC/UPC adapter on the jigs, maximum can polish 36 connectors each time, increase grinding efficiency
Feature:
- High quality steel construction, high precision.
- The interference rate of 2. is over 90%.
- The use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.
- Each grinding disc can be fitted with a plurality of grinding heads (centers 8-12, four horns, 18-24 heads), and the production efficiency is high.
- Adapters interchangeable to extend the service life of the grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable. The utility model saves the number of the grinding disk and saves the production cost.
- Grinding can be integrated grinding disk, also suitable for rework.
- According to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.
Product pictures:
Applications:
| Product Type | Application |
| D |
· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing) ·Polishing for magnetic heads and hard disks ·Lapping and polishing for optical glasses, optical crystal , LED ·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.) ·Edge polishing for silicon wafer |
| SC |
·Epoxy and glass removal ·Lapping and polishing for plastic ferrules ·Fine finishing and polishing for magnetic heads |
| AO |
·Polishing for fiber optical connectors ·Polishing for silicon wafer used in Solar cells ·Polishing for hard disks ·Polishing for ITO ·Lapping and polishing for optical crystal |
| CO |
·The final polishing for fiber optical connectors ·Polishing for optical devices |
| SO | ·The final super-precise polishing of optical fiber connector |
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) | ||
| Grit Size/um | 30 | Green | Light Green | Green | |||
| 20 | White | ||||||
| 16 | White | ||||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |||
| 12 | Yellow | ||||||
| 9 | Blue | Orange | Gray-green | Blue | |||
| 6 | Yellow | ||||||
| 5 | Gray-green | White | |||||
| 3 | Pink | Tan | Pink & White | ||||
| 2 | Gray-green | Bright Green | |||||
| 1 | off-white | Lavender | Gray-green | Blue | |||
| 0.5 | off-white | Brown-yellow | White | White | |||
| 0.3 | White | Dark Red | |||||
| 0.2 | Grey | ||||||
| 0.1 | Light Brown | White | |||||
| 0.02 | Transparent | ||||||
| 0.01 | Transparent | ||||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water | ||
| Standard Size |
Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) |
||||||
|
Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch) |
|||||||
| Note: Other film sizes are available upon request. | |||||||
Fiber Optic Patch Cord Production Process:
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
