Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green

  • Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green
  • Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green
  • Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green
  • Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green
  • Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-FOFC-SCA-N
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-FOFC-SCA-N Color Green
Insertion Loss 0.3dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
Highlight

ftth fast connector

,

field installable fiber optic connector
Leave a Message
Product Description
Telecom Field Installable Fiber Optic Connector 0.3dB 3D SC/APC SC/APC Green Color

New Design Telecom Fiber Optic Fast Connector 0.3dB 3D SC/APC SC/APC Green 5cm 5.5cm 6cm

Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China. All of our fast connectors meet Telecom requirements.

Key Features
  • 3D pass reach more than 80%
  • Free logo print for quantity more than 10k (pcs)
  • Free logo lettering for quantity more than 100k (pcs)
  • Field-installable optical fiber connector for FTTH networks
  • Compatible with single-mode or multimode fiber
  • Supports 900um, 3.0mm and cable buffered types
  • Fast installation with low insertion loss
Technical Data
  • Optical fiber: 2.0mmx3.1mm butterfly type
  • Plug type: SC APC, SC UPC
  • Diameter of fiber: 0.125mm
  • Fiber Mode: single mode
  • Insertion Loss: less than 0.5dB (0.2dB type)
  • 3D performance: pass 80%
Applications
  • Connections at the desk for LAN environments
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber (FTTx) applications
  • Repair/replacement requirements
  • Equipment test leads
Specifications
Item Parameter
Cable Scope 3.0 x 2.0 mm Bow-type Drop Cable
Fiber Diameter 125μm (652 & 657)
Coating Diameter 250μm
Mode SM
Operation Time about 15s (exclude fiber presetting)
Insertion Loss ≤ 0.25dB (1310nm & 1550nm)
Return Loss ≤ -45dB
Success Rate >98%
Reusable Times >10 times
Tensile Strength >3 N
Tighten Strength of Coating >10 N
Storage Temperature -40~+85°C
Working Temperature -15~+70°C

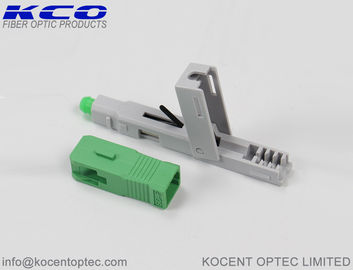

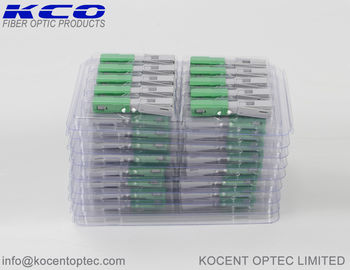

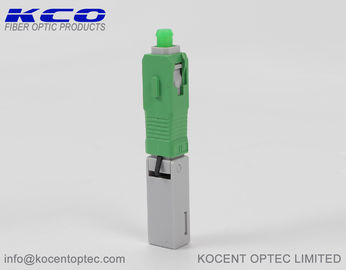

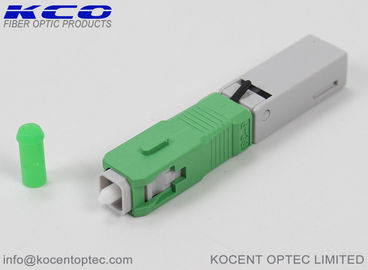

Product Images
Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green 0 Telecom Field Installable Fiber Optic Fast Connector with 0.3dB Insertion Loss 55dB Return Loss and 3D Pass SC/APC Green 1
Packing Information
  • Standard ex-work: 1000pcs/carton/40*22*35cm/10.8kg
  • Custom packing available upon request
  • Standard export packing options:
    • Carton box
    • Wooden box
    • Wooden pallet
Shipping Options
  • International express: UPS, TNT, DHL, etc
  • International air: CA, AA, EA, etc
  • By sea
OEM/ODM Service

We offer custom branding services for your orders. You can display your own brand LOGO on the goods, packaging, labels or any visible area. Our OEM and ODM service is available for all quantities.
