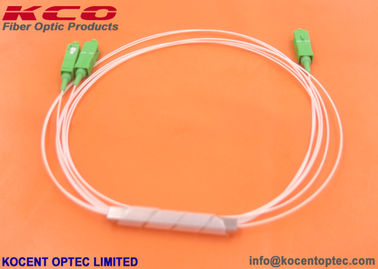

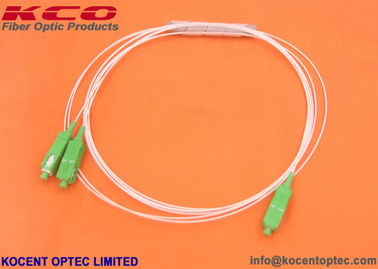

Durable Mini Tube Fiber Optic Cable Splitter 1x2 PLC 0.9mm 1.0m LSZH SC/APC LC/APC

  • Durable Mini Tube Fiber Optic Cable Splitter 1x2 PLC 0.9mm 1.0m LSZH SC/APC LC/APC
  • Durable Mini Tube Fiber Optic Cable Splitter 1x2 PLC 0.9mm 1.0m LSZH SC/APC LC/APC
  • Durable Mini Tube Fiber Optic Cable Splitter 1x2 PLC 0.9mm 1.0m LSZH SC/APC LC/APC
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-PN-164SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m
Splitter Type 1*2 1x2 Split Way 1 Way Input & 2 Way Output
Connector SC/APC Cable 0.9mm
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description

1*2 1x2 Mini Tube Fiber Optical Splitter PLC 0.9mm 1.0m LSZH SC/APC LC/APC



Kocent Optec Limited provide OEM service for all type of fiber optic splitter product. Such as: Mini blockless type splitter, ABS box typer splitter, LGX box type Splitter, rack mount type splitter and distriuntion box type splitter.

With closed supply chain, we can supply splitter and its around products such as: patch cord, pigtail, adapter, termination box, splice box, attenuator, fast conenctor, ...

Welcome to contact with our sales team to get best support from them.



Descriptions:

Planar lightwave circuit splitter (PLC Splitter) is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity. It widely used in PON(EPON/GPON) networks to realize optical signal power splitting.



The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984

for GPON, G.987 for 10G-GPON.
- Low Insertion Loss
- Broadband Operation
- Excellent Uniformity
- Low Polarization Dependent Loss
- Low excess loss & High performance







Features:

- Low insertion loss.

- Low Polarization Dependent Loss.

- Excellent Environmental Stability.

- Excellent Mechanical Stability.

- Meet Telcordia GR-1221 and GR-1209.



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



Descriptions:

Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

The standard LGX mental box housing provides a plug-and-play method for integration in the network, which eliminates any risks during installation. It eliminates the need for splicing machines on the field and there is no need for skilled personnel for deployement.

1x64 LGX cassttle module fiber optic plc splitte is also called 1*64 LGX module optical fiber plc splitter, plc fiber optic splitter, plc optical fiber splitter, fiber optical splitter, plc fiber splitter, plc optical splitter.



Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Durable Mini Tube Fiber Optic Cable Splitter 1x2 PLC 0.9mm 1.0m LSZH SC/APC LC/APC 0



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
