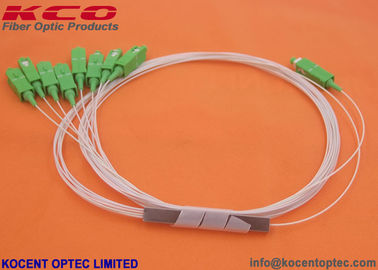

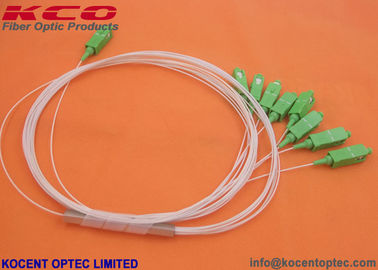

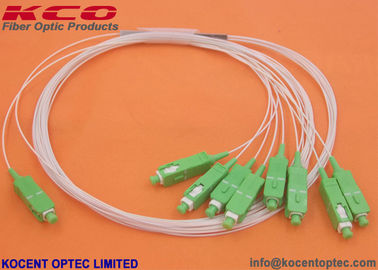

Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength

  • Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength
  • Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength
  • Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength
  • Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-Mini-18SCA-0.9-1.0-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m (ex-work)
Splitter Type 1*8 1x8 Split Way 1 Way Input & 8 Way Output
Connector SC/APC Cable 0.9mm
Highlight

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description
Mini Fiber Optic PLC Splitter 1x8 Steelless Tube Type
Product Description

1×4 1x4 Blockless Fiber Optic Splitter PLC with 0.9mm diameter and available in 1.0m, 1.5m, or 2.0m lengths with LSZH SC/APC connectors.

Kocent Optec Limited provides OEM services for all types of fiber optic splitters including Mini blockless type, ABS box type, LGX box type, rack mount type, and distribution box type splitters.

With a closed supply chain, we can also provide related products such as patch cords, pigtails, adapters, termination boxes, splice boxes, attenuators, and fast connectors.

Quick Information
  • Type: Mini Blockless Steelless Fiber Optic Splitter PLC
  • Way: 1×8 1x8 1X8
  • Pigtail cable diameter: 0.9mm
  • Pigtail length: 1.0m (ex-work), optional: 0.3m, 0.5m, 1.5m, 2.0m, 3.0m
  • Connector: SC/APC (ex-work), optional: w/o connector, SC/UPC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000
  • Packing: 1pc/bag, 100pcs/small box
Specifications
Specification 1x2 1x4 1x8 1x16 1x32 1x64 1x128
Fiber type G.652.D/G.657.A2
Operating wavelength 1260nm~1650nm
Max.Insert loss(dB) ≤3.8 ≤7.2 ≤10.5 ≤13.8 ≤17.1 ≤20.1 ≤23.7
Port insertion loss uniformity(dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.5 ≤2.0 ≤2.0
Inter-wavelength insertion loss uniformity(dB) ≤0.8 ≤0.8 ≤0.8 ≤1.0 ≤1.0 ≤1.0 ≤1.2
Return loss(dB) (output terminal) ≥50 ≥50 ≥50 ≥50 ≥50 ≥50 ≥50
Return loss(dB) (output open circuit) ≥18 ≥20 ≥22 ≥24 ≥28 ≥28 ≥30
Direction (dB) ≥55 ≥55 ≥55 ≥55 ≥55 ≥55 ≥55
Product Details

Fiber optic Planar Lightwave Circuit (PLC) splitter is an optical power management device fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

  • High strength stainless steel construction, passes salt spray test
  • Ferrule core less than 0.5μm
  • 100% new raw material, ROHS compliant
  • Low insertion loss and PDL
  • Compact design with good channel-to-channel uniformity
  • Wide operating wavelength: 1260nm to 1650nm
  • Wide operating temperature: -40℃ to 85℃
Key Features
  • 1xN and 2xN splitters tailored per application
  • Low Insertion Loss and low PDL
  • Superior uniformity across channels
  • Wide operation wavelength and temperature range
  • High stability and reliability
  • Compliant with Telcordia GR-1209 and GR-1221 standards
  • YD/T 2000.1-2009 compliance (TLC Product Certificate)
Applications
  • Fiber to The Point (FTTX)
  • Fiber to The Home (FTTH)
  • Passive Optical Networks (PON)
  • Gigabit Passive Optical Networks (GPON)
  • Local Area Networks (LAN)
  • Cable Television (CATV)
  • Test Equipment
OEM/ODM Service

We offer custom branding services for your logo on cables, packaging bags, labels, or any other location. Our OEM and ODM services are ready to accommodate your requirements.

Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength 0
Packing

Standard export packing options include carton boxes, wooden boxes, and wooden pallets.

Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength 1
Shipping
  • International express services: UPS, TNT, DHL, etc.
  • International air freight: CA, AA, EA, etc.
  • Sea freight available
Mini Fiber Optic PLC Splitter 1x8 with 0.9mm Cable and 1.0m Length for 1260nm~1650nm Wavelength 2
