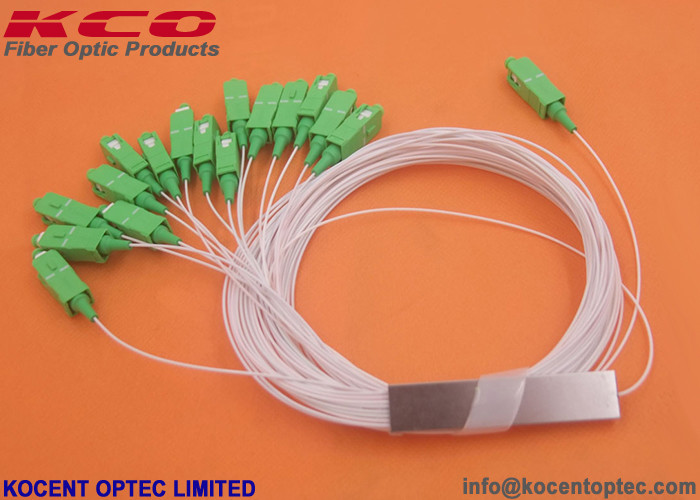

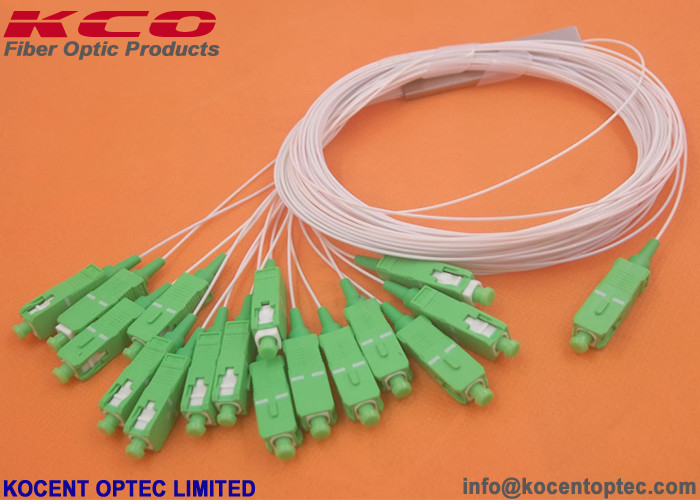

Blockless Type Optic Fiber PLC Splitter 1x16 High Strength With SC/APC Adapter

  • Blockless Type Optic Fiber PLC Splitter 1x16 High Strength With SC/APC Adapter
  • Blockless Type Optic Fiber PLC Splitter 1x16 High Strength With SC/APC Adapter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-PLC-Mini-116SCA-0.9-1.0-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steelless Tube Type Length 1.0m (ex-work)
Splitter Type 1*16 1x16 Split Way 1 Way Input & 16 Way Output
Connector SC/APC Cable 0.9mm
High Light

Planar Lightwave Circuit Splitter

,

PLC Optical Splitter
Leave a Message
Product Description

1*16 1x16 Optic Fiber PLC Splitter Mini Blockless Type With SC/APC Adapter

FTTH Splitter Box



Kocent Optec Limited provide OEM service for all type of fiber optic splitter product. Such as: Mini blockless type splitter, ABS box typer splitter, LGX box type Splitter, rack mount type splitter and distriuntion box type splitter.

With closed supply chain, we can supply splitter and its around products such as: patch cord, pigtail, adapter, termination box, splice box, attenuator, fast conenctor, ...

Welcome to contact with our sales team to get best support from them.



Quick Information:

- Type: Mini Blockless Steelless Fiber Optic Splitter PLC

- Way: 1*16 1x16 1X16

- Pigtail cable diameter: 0.9mm

- Pigtail tube color:

Ex-work: white

Optional:  yellow, multi-color, ...

- Pigtail length:

Ex-work: 1.0m

Optional: 0.3m, 0.5m, 1.5m, 2.0m, 3.0m

- Connector:

Ex-work: SC/APC

Optional: w/o connector, SC/UPC, LC/UPC, LC/APC, FC/UPC, FC/APC, ST/UPC, E2000, ...

- Packing:

1pc/bag

50pcs/ small box



Specifications:

1×16 Single Mode PLC Splitter Data Sheet
Operating Wavelength(nm) 1260-1650 Inspected Date
P/N: KCO-PLC-Mini-116SCA-0.9-1.0-LSZH
Fiber Type G.657A with 0.9mm lose tube Fiber Length(m) ≥1.0
Connector Type SC/APC Package Dimension(mm) 60×12×4
Storage Temperature -40~+85℃ Operating Temperature -40~+85℃
Item IL(dB) PDL(dB) RL(dB)
Wavelength(nm) 1310 1550 1310 1550 1310 1550
Spec. MAX13.6 MAX 0.25 ≥55
Port1 13.11 13.34 0.03 0.03 Pass Pass
Port2 13.26 13.41 0.03 0.03 Pass Pass
Port3 13.28 13.15 0.04 0.03 Pass Pass
Port4 13.39 13.09 0.04 0.02 Pass Pass
Port5 13.35 13.03 0.03 0.04 Pass Pass
Port6 13.48 13.40 0.04 0.04 Pass Pass
Port7 13.33 13.45 0.03 0.02 Pass Pass
Port8 13.26 13.33 0.04 0.03 Pass Pass
Port9 13.02 13.33 0.03 0.04 Pass Pass
Port10 13.46 13.38 0.02 0.03 Pass Pass
Port11 13.27 13.25 0.02 0.04 Pass Pass
Port12 13.46 13.15 0.04 0.02 Pass Pass
Port13 13.24 13.17 0.04 0.03 Pass Pass
Port14 13.15 13.42 0.03 0.04 Pass Pass
Port15 13.32 13.44 0.03 0.03 Pass Pass
Port16 13.02 13.19 0.03 0.03 Pass Pass
Input N/A Pass Pass
MAX. 13.48 13.45 0.04 0.04 N/A
MIN. 13.02 13.03 0.02 0.02 N/A
Average 13.28 13.28 0.03 0.03 N/A
Uniformity(≤1.0dB) 0.46 0.473 Directivity(dB) ≥55







Descriptions:

- Fiber optic Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations.

- Adopt high strength stainless steel, pass salt spray test

- Ferrule core is less than 0.5um

- Adopt 100% new raw material, ROHS compliance

- Low Insertion loss

- Low PDL Compact Design

- Good channel-to-channel uniformity

- Wide Operating Wavelength: from 1260nm to 1650nm

- Wide Operating Temperature: from -40℃ to 85℃



 Features:

- 1xN and 2xN splitters tailored per application

- Low Insertion Loss and low PDL

- Superior Uniformity

- Wide Operation Wavelength

- Wide Operation Temperature

- High Stability and Reliability

- Telcordia GR-1209 and GR-1221 Compliance

- YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)



Applications:

- Fiber to The Point (FTTX).

- Fiber to The Home (FTTH).

- Passive Optical Networks (PON).

- Gigabit Passive Optical Networks (GPON).

- Local Area Networks (LAN).

- Cable Television (CATV).

- Test Equipment.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Blockless Type Optic Fiber PLC Splitter 1x16 High Strength With SC/APC Adapter 0



Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
