0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly

  • 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly
  • 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly
  • 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly
  • 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly
  • 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-SOC-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SOC-SCA Color Green
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
Highlight

field installable fiber optic connector

,

quick connect fiber optic connectors
Leave a Message
Product Description
0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB

SC/APC SOC 0.9mm Fiber Optic Fast Connector Splice On Connector Field Assembly FTTH 0.2dB. Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China. All our fast connectors meet Telecom requirements.

Logo print is free for quantities over 10,000 pieces. Logo lettering is free for quantities over 100,000 pieces. Contact our sales team for OEM and ODM orders.

Product Description

This Fusion Splice-on Connector functions as an optical fiber fusion with the welding point located inside the connector, eliminating the need for additional protection equipment. The factory pre-polished ferrule removes the requirement for field polishing, adhesives, and crimping, reducing operator error and connector scrap. Compared to mechanical fast connectors, this design improves lifespan and reduces maintenance costs.

The embedded optical fiber ensures precise factory polishing of the ceramic face, with controlled radius of curvature, apex offset, and fiber end projection. High concentricity ceramic ferrule guarantees low insertion loss and high return loss. The V-groove cutting mechanism and refractive index matching cream ensure high stability and performance.

Technical Data
  • Optical fiber: 0.9mm cable
  • Plug type: SC APC, SC UPC
  • Diameter of fiber: 0.125mm
  • Fiber Mode: single mode
  • IL: less than 0.5dB (0.2dB type)
  • 3D: pass 80%
Applications
  • LAN environment desktop connections
  • Patch panels
  • Direct equipment termination
  • Fiber to the Subscriber (FTTx) applications
  • Repair/replacement requirements
  • Equipment test leads
Specifications
Part No. KCO-SOC-SCU/SCA
Interferometer UPC Type | APC Type
Radius Of Curvature 7mm~25mm | 5mm~12mm
Apex Offset Max. 50µm | Max. 50µm
Fiber Height -50nm~50nm | -50nm~50nm
Tile Error on APC 8˚ None | ±0.3
Operating temp. -40°C~+70°C
Storage temp. -40°C~+80°C
Connector Type SC
Conformance TIA/EIA 604-3
Ferrule Ceramic (Zirconia)
Housing Color Single Mode PC type: Blue | Single Mode APC type: Green
Cable type Ф0.9mm
Dimension 55mm

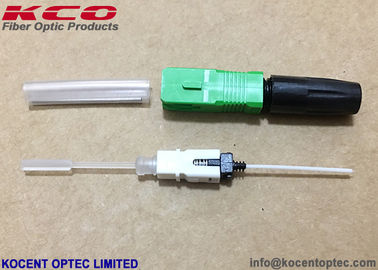

Product Photos
0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly 0 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly 1 0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly 2

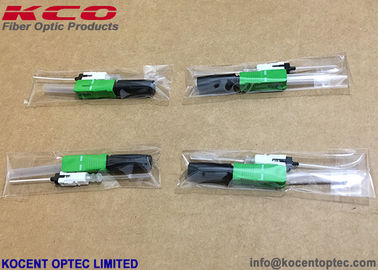

Packing Information

Standard ex-work packing: 2000pcs/carton, 40×22×35cm, 10.8kg. Custom packing available upon request.

OEM/ODM Service

We offer custom branding services for cables, packaging, labels, and other components. Our OEM and ODM services are available for your specific requirements.

Shipping Options
  • International express: UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • Sea freight
0.9mm SC/APC Fiber Optic Fast Connector with 0.2dB Insertion Loss and 50mm Length for Field Assembly 3
