0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB

  • 0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB
  • 0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB
  • 0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB
  • 0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-SOC-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-SOC-SCA Color Green
Insertion Loss 0.2dB Return Loss 55dB
3D Pass Length 50mm 55mm 60mm
High Light

field installable fiber optic connector

,

quick connect fiber optic connectors
Leave a Message
Product Description

SC/APC SOC 0.9mm Fiber Optic Fast Connector Splice On Connector Field Assembly FTTH 0.2dB



Kocent Optec Limited is one of leader supplier of fiber optic fast connector in China.
All of our fast connector meet Telecom requirement.

Logo print is free for quantity more than 10k (pcs). Logo Lettering is free for quantity more than 100k (pcs)

Contact with our sales team for your OEM and ODM order.



Description

This kind of Fusion Splice-on Connector is actually an optical fiber fusion, however the welding point is in the inner end of connector, which makes it no necessary for extra protection equipment, such as fiber protection plate(optical fiber splice tray), optical fiber terminal box, optical fiber distribution frame, after it finished splice fusion. The factory pre-polished ferrule eliminates the need for polishing, adhesives, and crimping in the field, which minimizes the potential for operator error and expensive connector scrap. Compared to mechanical optical fast connector, this new practical connector save V-groove mechanical connector maintenance and can improve the span life of welding point of connector and reduce maintenance cost.

The fast connector is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass
The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple cable clamp, special assembly fixtures to meet the requirements, the operator simple and quick.



Techenical Data:

Optical fiber: 0.9mm cable

Plug type: SC APC, SC UPC

Diameter of fiber: 0.125mm

Fiber Mode: single mode

IL: less 0.5dB (0.2dB type)

3D: pass 80%



Application:

Connections at the desk for LAN environments

Patch panels

Direct equipment termination

Fiber to the Subscriber (FTTx) applications

Repair/replacement requirements

Equipment test leads



Specification

Part No. KCO-SOC-SCU/SCA
Interferometer UPC Type APC Type
Radius Of Curvature 7mm~25mm 5mm~12mm
Apex Offset Max. 50µm Max. 50µm
Fiber Height -50nm~50nm -50nm~50nm
Tile Error on APC 8˚ None ±0.3
Operating temp. -40°C~+70°C
Storage temp. -40°C~+80°C



Connector Type SC
Conformance TIA/EIA 604-3
Ferrule Ceramic (Zirconia)
Housing Color

Single Mode PC type: Blue

Single Mode APC type: Green
Cable type Ф0.9mm
Dimension 55mm

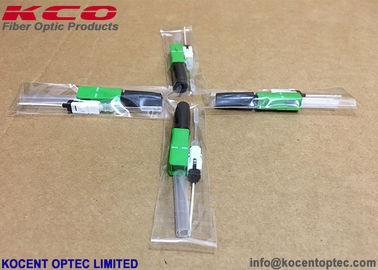

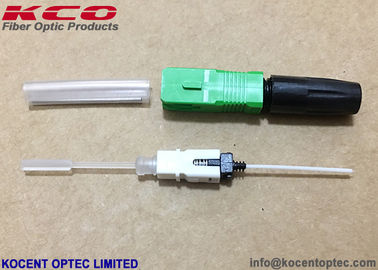

Product photo:

0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB 0

0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB 1

0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB 2





Packing Size

Ex-work: 2000pcs/carton/40*22*35cm/10.8kg

Can pack as customer request.



OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

0.9mm Splice On Fiber Optic Fast Connector SC/APC SOC Field Assembly FTTH 0.2dB 3
