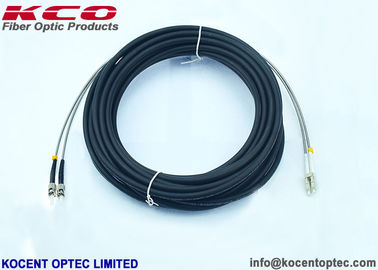

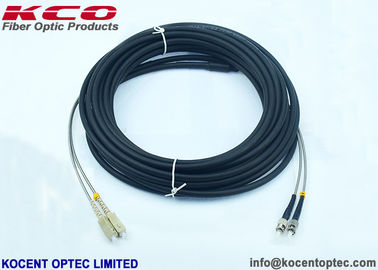

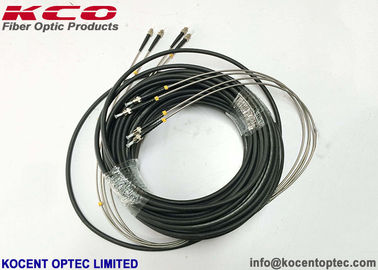

ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications

  • ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications
  • ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications
  • ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications
  • ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number STU-CPRI-2fo-7.0mm/2.0-LSZH-xm
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 ST/UPC, ST/APC, ST MM Connector 2 FC, LC, SC, ST, E2000, ...
Core 2 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
ST LC SC FC 2fo CPRI RRU BBU FTTA Fiber Optic Patch Cord Amored Field Army TPU LSZH
Product Description

ST 2fo CPRI RRU FTTA Optical Fiber Patch Cord Amored Non-armored Field Army TPU LSZH

CPRI fiber patch cable for the new generation wireless base stations (WCDMA/TD-SCDMA/WiMax/GSM). These products meet FTTA (fiber to the top of the tower) program requirements for outdoor environments and adverse weather conditions. Ideal for 3G, 4G, 5G and WiMax base stations and fiber-optic distributed zoom technology, CPRI fiber patch cables are rapidly becoming the standard connector interface.

KOCENT OPTEC LIMITED provides OEM and ODM services for all types of fiber optic patch cords, specializing in army field outdoor operations fiber optic patch cords including ODVA, NSN, PDLC, DLC, ODC, RRU, TPU, CPRI, Optitap, Mini SC, and OM3/OM4 patch cords. We supply various field operations fiber optic patch cords with different water-proof connectors for Telecom 3G, 4G, 5G, LTE, BBU, RRU, and RRH base stations.

Applications
  • Fiber-to-the-Antenna (FTTA): For latest mobile communication systems (GSM, UMTS, CMDA2000, TD-SCDMA, WiMAX, LTE) using fiber-optic feeders to link base stations with remote units.
  • Automation and Industrial Cabling: Provides highest reliability and operating safety with ruggedized design for mechanical and thermal robustness.
  • Surveillance Systems: ODC connectors preferred for compact size and robust design, easy installation in difficult areas.
  • Naval and Ship Building: High corrosion resistance for humid and salty environments with 20+ year lifespan.
  • Broadcast: Mobile cabling systems for temporary installations during events or natural hazards.
Parameters
Item Parameter
Connector ST/UPC
Insertion loss ≤0.3dB
Return loss ≥35dB
Fiber mode Multi-mode,50/125um
Operating wavelength 850nm,1310nm
Test wavelength 850nm,1310nm
Repeat ability ≤0.1dB
Interchange ability ≤0.2dB
Durability ≤0.2dB
Fiber length 1m,2m.. Any length optional
Length and tolerance 10cm
Operating temperature -40~+85°C
Storage temperature -40~+85°C
Quick Information
  • Connector End 1: ST
  • Connector End 2: ST, Optional: LC, FC, SC, ST, E2000, ....
  • Cable: Armored, Optional: non-armored
  • Cover: LSZH, Optional: TPU, PE
  • Outer Diameter: 7.0mm, Optional: 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm
  • Inner Diameter: 2.0mm, Optional: 0.9mm, 0.6mm
  • Fanout part: 2.8mm armored, Optional: 3.0mm non-armored, 2.0mm non-armored
  • Color: Black
  • Length: 5m, 10m, 20m, 30m, 40m, 50m, 60m, 70m, 80m, 90m, 100m, 150m, 200m, 300m, 500m, ...
Features
  • Open bulkhead for easy access to SFP
  • Positive mechanical feedback when fully mated
  • One-hand mating
  • Plug has tolerance free design, fully free floating on Z-axis
  • No cable buckling during or after installation
  • Cost effective metal die cast bulkhead
  • Field installable version available
  • Water proof, dust proof and corrosion resistant
  • Good mechanical and environmental characteristics
  • Flame retardant characteristics meet relevant standards
  • Soft, flexible, water blocked, UV resistant, easy to lay and splice
  • Bulkhead cutout allows transceiver removal without opening PRH
  • Robust bayonet locking for easy, fast, and secure mating
CPRI Patch Cord Constructions
ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 0 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 1 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 2
Product Photos
ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 3 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 4 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 5 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 6 ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 7
Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count 2 cores 4 cores 6 cores 8 cores 12 cores 24 cores 48 cores
Fiber Type SM G.652D G.657A (A1, A2, B3, ...)
MM OM1 OM2 OM3 OM4 OM5)
Jacket Materials LSZH TPU PE
Cable diameter 4.8mm 5.0mm 5.5mm 6.0mm 6.5mm 7.0mm
Testing Wavelengths SM: 1310±30nm 1550±30nm
MM: 850±30nm 1300±30nm
Insertion Loss(dB)
TIA/EIA-455-107		 ≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃
OEM/ODM Service

We offer custom branding services for your logo on cables, packaging, labels, or any visible location. Our OEM and ODM services are fully equipped to meet your requirements.

ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 8
Packing & Shipping

Packing: Standard export packing in carton boxes, wooden boxes, or wooden pallets.

Shipping Options:

  • International express (UPS, TNT, DHL)
  • International air (CA, AA, EA)
  • Sea freight
ST LC SC FC 2 Core Fiber Optic Patch Cord with 50/125um Multi-mode and Insertion Loss ≤0.2dB for FTTA Applications 9
