IP67 Outdoor Water Proof Fiber Optic Adapter Mini SC APC UPC Waterproof Socket

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xP/N | KCO-ADT-HW-SCA/U | Application | Outdoor |
---|---|---|---|
Protection Level | IP67 | Insertion Loss | 0.2dB |
Return Loss | 55dB | Cover | Plastic |
Color | Black | Connector | SC Type (APC, UPC, PC) |
Highlight | fiber optic pigtail cables,patch cord pigtail |
Mini SC Panel APC UPC Water-Proof IP67 Fiber Optic Adapter For FTTA FTTH
Introduction:
- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
- With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment.
- We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.
- Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
- The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
- The SC/APC and SC/UPC connectors mate to a standard adapter providing a common interface for FTTX applications
Characteristics:
- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability.
- Precise connector
- Excellent mechanical capability
Parameter:
- Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC. LC/APC, SC/APC, FC/APC, ST/APC
- Insertion Loss:
<=0.2db
<=0.3db
- Return Loss:
>=50db
>=60db
- Fiber type:
Single-mode: G652D, G655, G657A1, G657A2, G657B3
Multi-mode: OM1, OM2, OM3, OM4, OM5
- Operating wavelength: 1310, 1550nm, 850nm, 1490um
- Test wavelength: 1310,1550nm
- Repeatability: <=0.1dN
- Interchangeability: <=0.2dB
- Durability: <=0.2dB
- Length and tolerance: 10cm
- Operating Temperature: -40C ~ +85C
- Storage Temperature: -40C ~ +85C

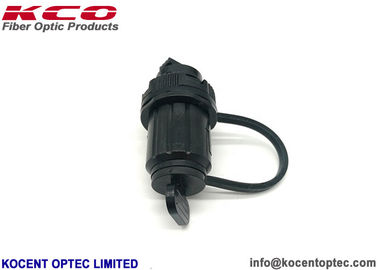

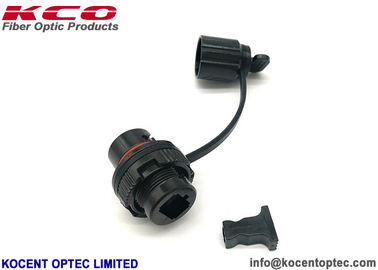

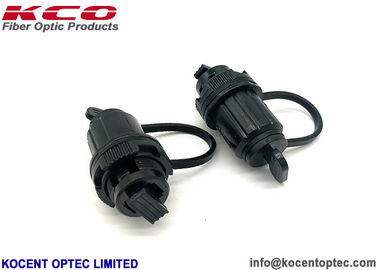

Products photo:
Features:
- The connectors are comply with IEC, Telcordia-GR-326-Core standards;
- Different size & color boot option;
- Low insertion loss; High return loss;
- 100% interferometer measurement;
Application:
- Telecommunication networks;
- Local area networks;
- CATV;
- Active device termination;
- Data center system networks;
- PON;
- Military exercise;
- Performance and so on.
Patch Cord Specifications:
Parameters | Standard Fiber Cable Assemblies |
Connector | Side A: SC with armored |
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ... | |
Fiber count |
2 cores |
Fiber Type |
SM |
MM |
|
Jacket Materials |
LSZH |
Cable diameter |
4.8mm |
Testing Wavelengths |
SM: |
MM: |
|
Insertion Loss(dB) TIA/EIA-455-107 |
≤ 0.3dB(PC/UPC/APC) |
≤ 0.3dB(UPC) | |
Return Loss(dB) TIA/EIA-455-107 |
≥45dB (PC/UPC) |
≥55dB (APC) | |
≥35dB (UPC) | |
Exchange ability | ≤ 0.2dB |
Cable Assemblies | Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord |
Operating Temperature | -14℃~+ 85℃ |
Storage Temperature | -40℃~+85℃ |
OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
