4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU

  • 4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
  • 4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
  • 4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-YZC04P
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector 1 YZC04P Connector 2 FC, LC, SC, ST, E2000, ...
Core 4fo Insertion Loss 1.0dB
Return Loss 55dB Cable Cover Material TPU
Color Black Application Tactical Army, Aviation
Cable Diameter 5.0mm Cable Length 500m
Rule Type KCO-Type 03
Leave a Message
Product Description
4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
Product Description
  • The 4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Connector is IP67 waterproof, 4 cores tactical fiber optic plug designed for rugged and field operating applications.
  • It is a rugged, field-deployable fiber optic connection system designed with a neutral bayonet locking structure for rapid, reliable mating in harsh outdoor and outdoor field environments.
  • It can be used in optical fiber communication networks , computer systems, Emergency communication, equipment repair and light path temporary connection.
  • It is designed for tactcal field fiber optic cable supporting, neutral bayonet locking structure supporting fastly connection with high water-proof and strong tension function.
  • It features a neutral / hermaphroditic bayonet locking mechanism, which allows for quick, blind-mate connections between any plug and socket, plug and plug, or socket and socket without requiring specific male/female orientation or separate adapters.
  • It is available Male Type Connector in 2f (YZC02P), 4f (YZC04P), 6f (YZC06P), 8f (YZC08P), 12f (YZC12P) and Female Type Connector in 2f (YZC02S), 4f (YZC04S), 6f (YZC06S), 8f (YZC08S), 12f (YZC12S)
Introduction
  • Kocent Optec Limited is a leading manufacturer of outdoor field fiber optic patch cords, specializing in waterproof connectors that be compatible with YZC, Fullaxs, OptiTap, Huawei Mini SC, Connector, PDLC, and ODVA models.
  • With over 13 years of production experience, we supply standard telecom and broadcast television grade patch cords. All products undergo testing before shipment, and we offer OEM and ODM services.
Key Features
  • Low insertion loss
  • High return loss
  • Optical Configuration: 4 Cores / 4 Pins (4P).
  • 100% interferometer measurement
  • Ingress Protection: IP67 rated
  • Large Operating Temperature: -40°C to +85°C
  • High mechanical strength aluminum alloy housing material
  • Dust proof and waterproof
  • High tension resistance
  • Hermaphroditic/Neutral Design
  • Environmental Resistance
Applications
  • 3G, 4G, 5G Base Stations
  • Aerospace & Defense systems
  • Broadcast & Marine/Vehicle Systems
  • Equipment diagnosis
  • Fiber optic sensors
  • Harsh Industrial Environments
  • FTTA/FFTP/BBU/RRU applications
  • Tactical communications, emergency network restoration, broadcast setups, and harsh industrial or mining sites.

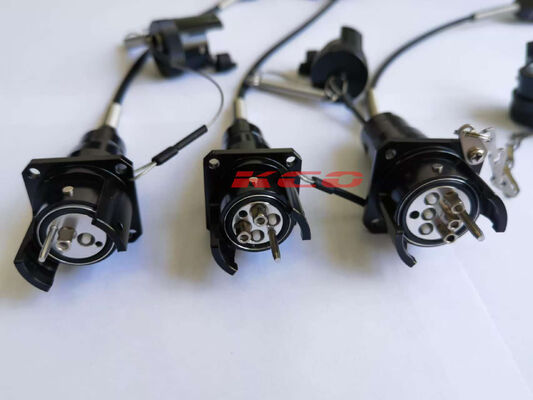

Product Image
4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU
Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: YZC04P
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei
Fiber count 4 cores
Fiber Type SM G.652D G.657A (A1, A2, B3, ...) G655
MM OM1 OM2 OM3 OM4 OM5
Jacket Materials PVC, LSZH, TPU
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss(dB)
TIA/EIA-455-107		 ≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107		 ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+85℃
Storage Temperature -40℃~+85℃
OEM/ODM Service

We offer custom branding options for cables, packaging, labels, and other components. Contact our sales team for OEM/ODM support.

4 Cores YZC04P Water-proof IP67 Tactical Fiber Optical Male Connector Patch Cord 5.0mm TPU

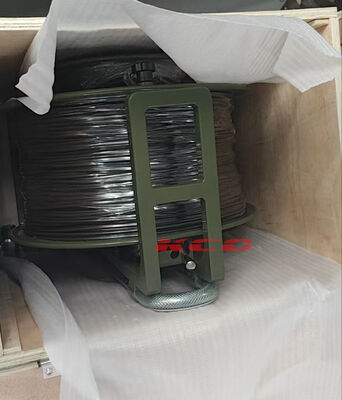

Packing & Shipping

Packing: Standard export packing including carton boxes, wooden boxes, and wooden pallets.

Shipping Options:

  • International express (UPS, TNT, DHL)
  • International air freight
  • Sea freight

Standard Export Ports: Shenzhen, Hongkong, Ningbo

Standard Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
