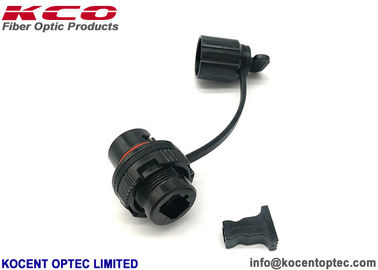

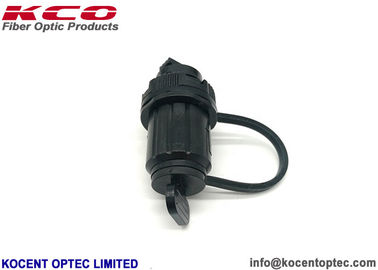

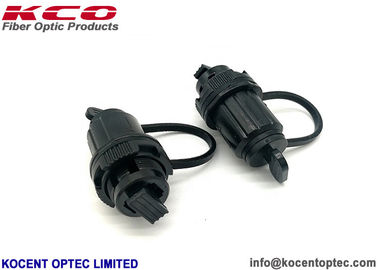

IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications

  • IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
  • IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
  • IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
  • IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-ADT-HW-SCA/U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-ADT-HW-SCA/U Application Outdoor
Protection Level IP67 Insertion Loss 0.2dB
Return Loss 55dB Cover Plastic
Color Black Connector SC Type (APC, UPC, PC)
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
IP67 Outdoor Water Proof Fiber Optic Adapter Mini SC APC UPC Waterproof Socket
Mini SC Panel APC UPC Water-Proof IP67 Fiber Optic Adapter For FTTA FTTH
Introduction
Kocent Optec Limited is a leading manufacturer of outdoor field fiber optic patch cords, specializing in waterproof connectors including Fullaxs Connector, Military Connector, PDLC, and ODVA. With over 10 years of production experience, we supply standard telecom and broadcast television grade patch cords, all tested before shipment. We offer OEM and ODM services.
Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity. The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing for easy connection to multi-port terminals or in-line extension receptacles. The SC/APC and SC/UPC connectors mate to standard adapters for FTTX applications.
Characteristics
  • Low insertion loss and back reflection loss
  • Good exchangeability
  • Good durability
  • High temperature stability
  • Precise connector
  • Excellent mechanical capability
Technical Parameters
  • Connector type: LC/UPC, SC/UPC, FC/UPC, ST/UPC, LC/APC, SC/APC, FC/APC, ST/APC
  • Insertion Loss: ≤0.2dB / ≤0.3dB
  • Return Loss: ≥50dB / ≥60dB
  • Fiber type: Single-mode (G652D, G655, G657A1, G657A2, G657B3) / Multi-mode (OM1, OM2, OM3, OM4, OM5)
  • Operating wavelength: 1310nm, 1550nm, 850nm, 1490um
  • Test wavelength: 1310nm, 1550nm
  • Repeatability: ≤0.1dN
  • Interchangeability: ≤0.2dB
  • Durability: ≤0.2dB
  • Length and tolerance: 10cm
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: -40°C to +85°C
Product Images
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications 0 IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications 1 IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications 2
Key Features
  • Compliant with IEC, Telcordia-GR-326-Core standards
  • Available in different sizes and color boot options
  • Low insertion loss and high return loss
  • 100% interferometer measurement
Applications
  • Telecommunication networks
  • Local area networks
  • CATV systems
  • Active device termination
  • Data center system networks
  • PON (Passive Optical Network)
  • Military applications
  • Performance installations
Patch Cord Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss(dB) TIA/EIA-455-107 ≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB) TIA/EIA-455-107 ≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃ to +85℃
Storage Temperature -40℃ to +85℃
OEM/ODM Service
We offer custom branding options for cables, packaging, labels, and other components through our OEM and ODM services.
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications 3
Packing & Shipping
Standard export packing options include carton boxes, wooden boxes, and wooden pallets. Shipping methods:
  • International express: UPS, TNT, DHL
  • International air: CA, AA, EA
  • Sea freight
IP67 Outdoor Waterproof Mini SC APC UPC Fiber Optic Adapter for FTTA FTTH Applications 4
