FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-HW-MNSCA-Armored-4.8mm-LSZH-xxxM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Connector 1 Huawei Mini SC/APC Connector 2 FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Fiber Type SM, MM
High Light

fiber optic pigtail cables


patch cord pigtail

Leave a Message
Product Description


FTTA Non-Armored Outdoor Field Fiber Optical Patch Cord With Huawei Mini SC APC H Connector

- Huawei MINI SC/APC to SC APC GYFJH Simplex SM G657A1 fiber Patch cable assembly
- Mini SC assemblies provide a robust and sealed connection solution for fiber to the home (FTTH) connectivity.
- The H connector end incorporates an SC/APC type connection within a slim, sealed, threaded polymer housing allowing easy connection to either a multi port terminal or in-line extension receptecal.
- The SC/APC connectors mate to a standard adapter providing a common interface for FTTX applications
- Provides superior weather resistance for FTTA and other outdoor applications.
- Allows flexibility to use factory terminated assemblies or pre-terminated or field installed assemblies
- Suitable for FTTA and outdoor temperature extremes Ensures functionality in harsh weather environments
- Can be installs without special tooling
- Threaded style coupling
- Provides bend protection for installation and long term use
- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: Fullaxs Connector, Military Connector, PDLC, ODVA, ...
-  With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.


Cable constructions:
Type 1: PVC/LSZH/TPU Kevlar + 2*Buffered 0.9mm fiber (4.8mm / 5.0mmmm);
Type 2: PVC/LSZH/TPU + Kevlar + 2*2.0mm cable (7.0mm)
Other cable construction welcome to customerize.

- Low insertion loss and back reflection loss
- Good exchangeability
- Good Durability
- High temperature stability.
- Precise connector
- Excellent mechanical capability
Insertion Loss: <=0.2dB
Return Loss: >=50dB
Fiber mode: Single-mode/ Multi-mode
Operating wavelength: 1310, 1550nm
Test wavelength: 1310,1550nm
Repeatability: <=0.1
Interchangeability: <=0.2dB
Durability: <=0.2dB
Fiber Length: 1m, 2m….. any length optional.
Length and tolerance: 10cm
Operating Temperature: -40C ~ +85C
Storage Temperature: -40C ~ +85C

- The connectors are comply with IEC, Telcordia-GR-326-Core standards;
- Different size & color boot option;
- Low insertion loss; High return loss;
- 100% interferometer measurement;
- Telecommunication networks;
- Local area networks;
- Active device termination;
- Data center system networks;
- PON;
- Military exercise;
- Performance and so on.

Products photo:

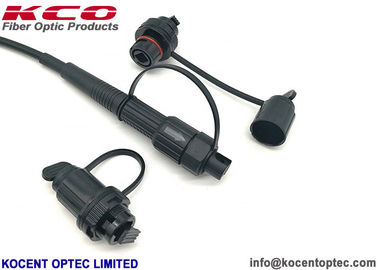

FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector 0

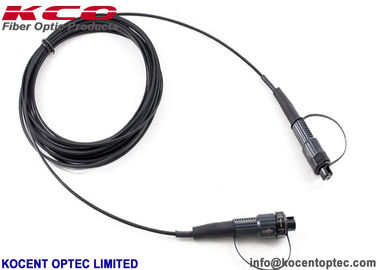

FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector 1




Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores

Fiber Type

G.657A (A1, A2, B3, ...)



Jacket Materials


Cable diameter


Testing Wavelengths




Insertion Loss(dB)
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃

OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

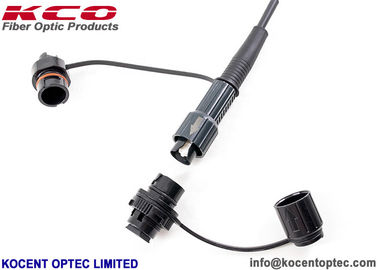

FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector 2

According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea: COSCO, HUYNDAI, ...
- Standard shipping port: Shenzhen, Hongkong, Ningbo

FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector 3
