Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover

  • Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover
  • Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover
  • Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover
  • Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-HW-MNSCA-Armored-4.8mm-LSZH-xxxM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 Huawei Mini SC/APC Connector 2 FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Fiber Type SM, MM
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description
FTTA Tactical Non Armored Fiber Optic Patch Cord Outdoor With Mini SC Connector
Product Description
FTTA Non-Armored Outdoor Field Fiber Optical Patch Cord With Huawei Mini SC APC H Connector
Key Features
  • Huawei MINI SC/APC to SC APC GYFJH Simplex SM G657A1 fiber Patch cable assembly
  • Robust and sealed connection solution for fiber to the home (FTTH) connectivity
  • SC/APC connectors mate to standard adapters for FTTX applications
  • Superior weather resistance for FTTA and outdoor applications
  • Threaded style coupling with bend protection
  • Installation possible without special tooling
  • Suitable for harsh weather environments and temperature extremes
Cable Constructions
  • Type 1: PVC/LSZH/TPU + Kevlar + 2*Buffered 0.9mm fiber (4.8mm / 5.0mm)
  • Type 2: PVC/LSZH/TPU + Kevlar + 2*2.0mm cable (7.0mm)
  • Custom cable constructions available
Technical Characteristics
  • Low insertion loss and back reflection loss
  • Excellent mechanical capability and durability
  • High temperature stability
  • Precise connector with good exchangeability
Technical Parameters
Insertion Loss ≤0.2dB
Return Loss ≥50dB
Fiber mode Single-mode/Multi-mode
Operating wavelength 1310, 1550nm
Test wavelength 1310,1550nm
Repeatability ≤0.1
Interchangeability ≤0.2dB
Durability ≤0.2dB
Operating Temperature -40°C ~ +85°C
Storage Temperature -40°C ~ +85°C
Additional Features
  • Compliant with IEC, Telcordia-GR-326-Core standards
  • Different size & color boot options available
  • 100% interferometer measurement
Applications
  • Telecommunication networks
  • Local area networks and data center systems
  • CATV and PON networks
  • Active device termination
  • Military applications
Manufacturer Information
Kocent Optec Limited is a leading manufacturer of outdoor field fiber optic patch cords with over 10 years of production experience. We specialize in waterproof connectors including Fullaxs, Military, PDLC, and ODVA types. All products are tested before shipment, and we offer OEM/ODM services.

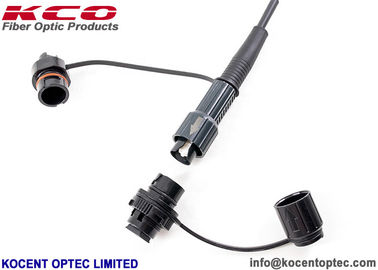

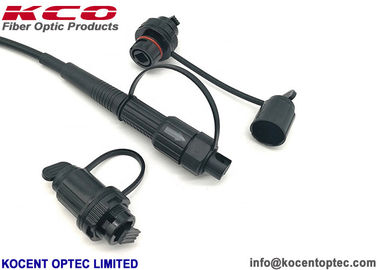

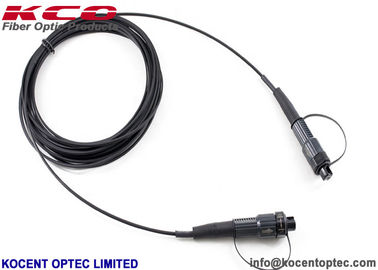

Product Images
Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover 0 Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover 1 Non Armored Outdoor Fiber Optic Patch Cord with Huawei Mini SC/APC Connector and LSZH/TPU Cover 2
Detailed Specifications
Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, etc.
Fiber count 2 cores, 4 cores, 6 cores, 8 cores, 12 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3, etc.)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
OEM/ODM Services
We offer custom branding options for cables, packaging, and labels. Our OEM and ODM services are available for all products.
Packaging & Shipping
  • Packaging: Standard export packing in carton boxes, wooden boxes, or pallets
  • Shipping Methods: International express (UPS, TNT, DHL), air freight, or sea freight
  • Standard Ports: Shenzhen, Hongkong, Ningbo
