SM Cable Fiber Optic Patch Cords Jumpers Single Mode DIN/UPC PVC LSZH PE OFNR

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number DIN/PC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 DIN/PC Connector 2 SC, LC, FC, ST
Fiber Count Simplex, Duplex, Multi-fibers Insertion Loss 0.2dB
Return Loss 50dB Fiber Type OS2, OM1, OM2, OM3, OM4, OM5
Color Yellow, Orange, Aqua, Violet, Lime Green Cover PVC, LSZH
High Light

fiber optic pigtail cables

,

patch cord pigtail

Leave a Message
Product Description



DIN / PC Patch Cord Fiber Optic Jumper Single Mode Simpex G657A2 Cable



Introduction:

1. Fiber patch cable is the fiber which connects the computer with equipment.

2. It is very convenient to connect and manage, thicker layer of protection, generally used in the connection between the Optical andthe terminal box.



Category:

FC patch cable, SC patch cable, ST patch cable, LC patch cable, MTRJ patch cable, MPO patch cable, MU patch cable, SMA patch cable, FDDI patch cable, E2000 patch cable, DIN patch cable, D4 patch cable and so on.

Normal fiber optic patch cable: FC-FC, FC-SC, FC-LC, FC-ST, SC-SC, SC-ST and so on



Patch cable length: 0.5m, 1m, 2m, 3m, 5m, 10m and so on



Characteristics:
1. Low insertion loss
2. Good repeatability
3. Big Return Loss
4. Mutual insert performance
5. Good temperature stability



Application:

1. An optical fiber communication system
2. Optical access network
3. Fiber-optic data transmission
4. Fiber optic CATV
5. A local area network (LAN)
6. Test equipment
7. Fiber optic sensors


Product Photo:

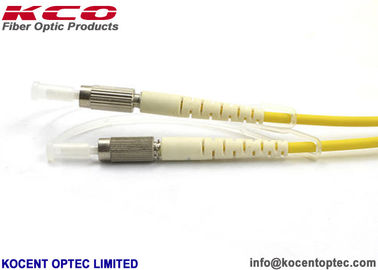

SM Cable Fiber Optic Patch Cords Jumpers Single Mode DIN/UPC PVC LSZH PE OFNR 0

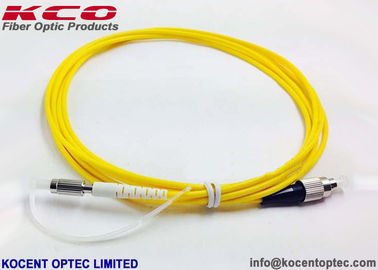

SM Cable Fiber Optic Patch Cords Jumpers Single Mode DIN/UPC PVC LSZH PE OFNR 1

Technical Data:
Data Unit FC, LC, SC Jumper SR, MU MT-RJ, MPO E2000
    SM MM SM MM SM MM SM
    PC UPC APC PC PC UPC PC PC UPC PC PC APC
Insert loss DB ≤0.3 ≤0.2 ≤0.3
≤0.3
≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.2 ≤0.2 ≤0.3 ≤0.3

Return loss
DB ≥45 ≥50 ≥60 ≥30 ≥45 ≥50 ≥30 ≥45 ≥50 ≥35 ≥55 ≥75
Work wavelength NM 1310,1510 1310,1510 1310,1510 1310,1510
Interchange ability DB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Vibration DB ≤0.2 ≤0.2 ≤0.2 ≤0.2
Work temperature -40 to 75 -40 to 75 -40 to 75 -40 to 75
Install temperature -40 to 85 -40 to 85 -40 to 85 -40 to 85
Fiber OD MM 3.0/2.0/0.9 3.0/2.0/0.9 3.0/2.0/0.9 3.0/2.0/0.9


OEM/ODM Service:
If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea

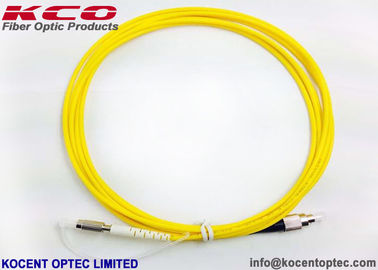

SM Cable Fiber Optic Patch Cords Jumpers Single Mode DIN/UPC PVC LSZH PE OFNR 2
