Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications

  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
  • Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MU/UPC Connector 2 SC, LC, FC, ST, DIN, E2000, ...
Fiber Count Simplex, Duplex, Multi-fibers Insertion Loss 0.2dB
Return Loss 50dB Fiber Type OS2, OM1, OM2, OM3, OM4, OM5
Color Yellow, Orange, Aqua, Violet, Lime Green Cover PVC, LSZH
Highlight

fiber optic pigtail cables

,

patch cord pigtail
Leave a Message
Product Description

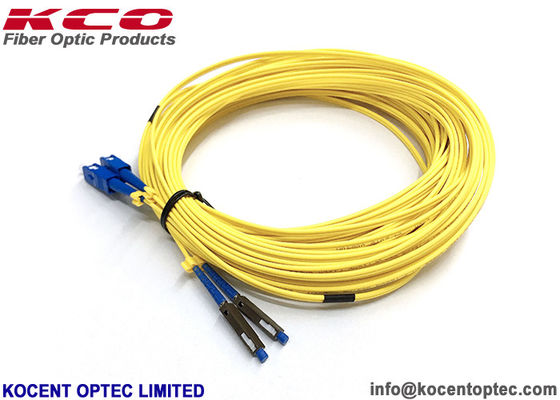

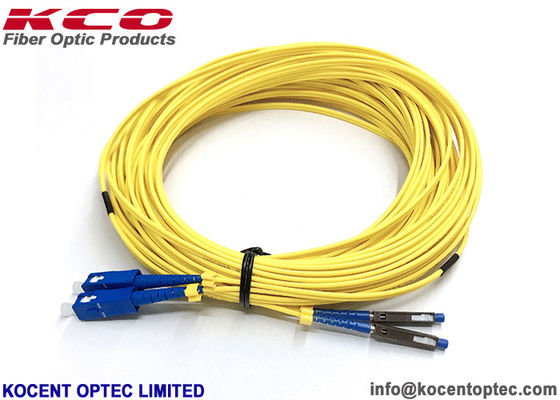

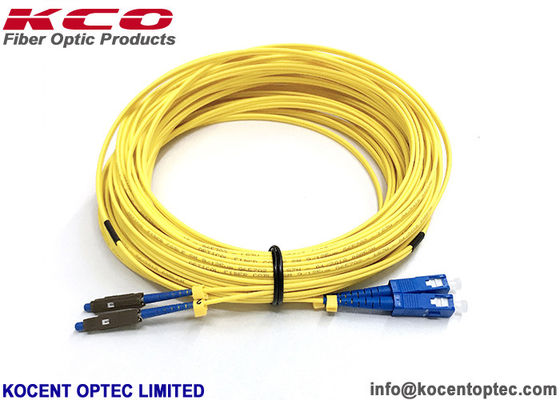

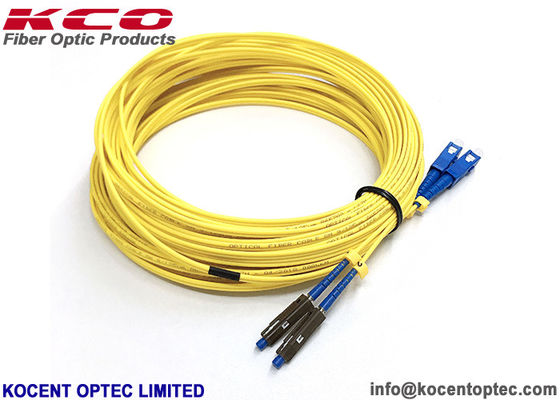

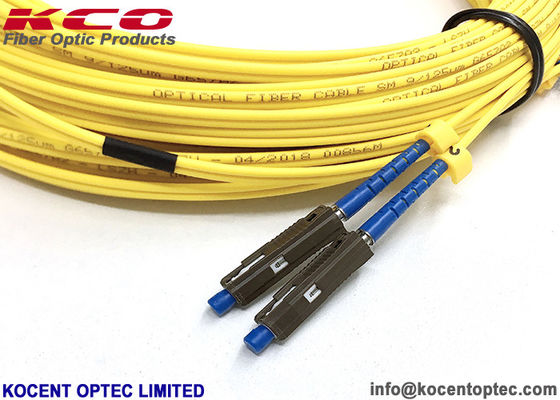

Low Insertion Loss Fibre Optic Patch Cable MU SM DX 2.0mm G657A1 LSZH Yellow Color
Product Description

MU UPC Single Mode G657B3 Fibre Optical Patch Cord Simplex Cable LSZH

KOCENT OPTEC LIMITED is a reliable fiber optic supplier committed to building long-lasting relationships with distributors, installers, design consultants, system integrators, and end users. We stay at the forefront of emerging trends and technological innovation in this fast-moving industry.

Key Features
  • Fiber patch cable connects computers with equipment
  • Easy to connect and manage with thicker protective layer
  • Available in all standard connector styles, fiber types, and cable configurations
  • Factory terminated, assembled, tested, and inspected prior to shipment
  • Manufactured using OFNR riser grade cable with LSZH option
  • 100% factory tested to meet industry standards
  • 1.25mm diameter ferrule for compact multiple optical connectors
  • Ideal for high-speed data communications and telecommunications
Characteristics
  • Low insertion loss
  • Good repeatability
  • High return loss
  • Excellent mutual insert performance
  • Superior temperature stability
Applications
  • Optical fiber communication systems
  • Optical access networks
  • Fiber-optic data transmission
  • Fiber optic CATV
  • Local area networks (LAN)
  • Test equipment
  • Fiber optic sensors
Technical Specifications
Insertion Loss: UPC ≤ 0.2dB, APC ≤ 0.3dB (Typical: 0.1dB)
Return Loss: SM UPC ≥ 55dB, APC ≥ 65dB; MM UPC ≥ 35dB
Interchangeability: ≤0.2dB
Salt Spray: ≤0.2dB
Repeatability: (1000 times) ≤0.1dB
Vibration: (550Hz 1.5mm) ≤0.1dB
High Temperature: (+85°C sustain 100 hours) ≤0.2dB
Low Temperature: (-40°C sustain 100 hours) ≤0.2dB
Temperature Circularly: (-40°C to +85°C sustain 100 hours) ≤0.2dB
Humidity: (+25°C to +65°C 93% R.H. 100 hours) ≤0.2dB
Apex Offset: 0μm to 50μm
Radius of Curvature: 7mm to 25mm
Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 0 Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 1 Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 2 Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 3 Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 4 Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 5
Available Options
  • Connector Types: LC, SC, FC, ST, E2000, MU, MPO, MTRJ, D4, DIN, SMA, FDDI, ESCON
  • Cable Types: Simplex, Duplex, Fan-Out, Branch Out
  • Fiber Modes: SM (G652D, G655, G657), MM (G651.1)
  • Standard Lengths: 0.5m, 1m, 2m, 3m, 5m, 10m (custom lengths available)
Data Unit FC, LC, SC Jumper SR, MU MT-RJ, MPO E2000
Insert loss DB ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return loss DB ≥45 ≥50 ≥60 ≥30
Work wavelength NM 1310,1510 1310,1510 1310,1510 1310,1510
Interchange ability DB ≤0.2 ≤0.2 ≤0.2 ≤0.2
OEM/ODM Service

We offer custom branding options for cables, packaging, labels, and more to meet your specific requirements.

Packaging & Shipping
  • Standard export packaging options: carton box, wooden box, wooden pallet
  • International shipping via express (UPS, TNT, DHL), air freight (CA, AA, EA), or sea transport
Low Insertion Loss 0.2dB Fiber Optic Patch Cord with 50dB Return Loss for High-Speed Data Communications 6
