1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter

  • 1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter
  • 1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter
  • 1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Rack-1x8-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 1.0m
Splitter Type 1*8 1x8 Split Way 1 Way Input & 16 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-Rack-1x8-SCA MOQ 1pc
High Light

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description



SC APC 1*8 PLC Splitter Patch Panel / 19'' Rack Mount Type SC UPC 1x8 Fiber Optic Splitter



Introduction:

- Kocent Optec Limited supply full series of fiber optic PLC Splitter such as: mini tube type, ABS Box modular Type, LGX box type, Rackmount type, Wall mount type, ....

- We provide a whole series of 1 x N and 2 x N splitters that are tailored for specific applications.

- All products meet Telcordia 1209 and 1221 reliability requirements and are certified by TLC for network development requirment.

- With more than 10 years of experience in passive fiber optic production, and closed of QC process, we promise that 100% of goods are tested and pass tested before shipment.

- Our company's production of the chip packaging optical divider adopts the compact arrangement method, at the same time convenient operation.


Descriptions:
- Kocent Optec Limited supply all type of rackmoutn type fiber optic splitter. Include: 1x2, 2x2, 1x4, 2x4, 1x8, 2x8, 1x16, 2x16, 1x32, 2x32, 1x64, 2x64 and even 1x128.
- Connector can be: SC/APC, SC/UPC, LC/APC, LC/UPC, FC/UPC, FC/APC or other connector as customer request.
- 1U 19'' rack mount plc splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
- It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.


Features:
- Low Insertion loss
- Low PDL Compact Design
- Good channel-to-channel uniformity

- Ultra-end insertion loss and associated loss of polarization
- Good spectral uniformity
- Wide range of working environment
- High reliability
- Compact Size

- Wide Operating Wavelength: from 1260nm to 1650nm
- Wide Operating Temperature: from -40℃ to 85℃​

- Adopt 100% new raw material, ROHS compliance



Applications:
- FTTx Systems
- Digital, hybrid and AM-Video systems
- LAN, WAN and Metro Networks
- CATV systems
- Other applications in fiber optic systems



Product photo:

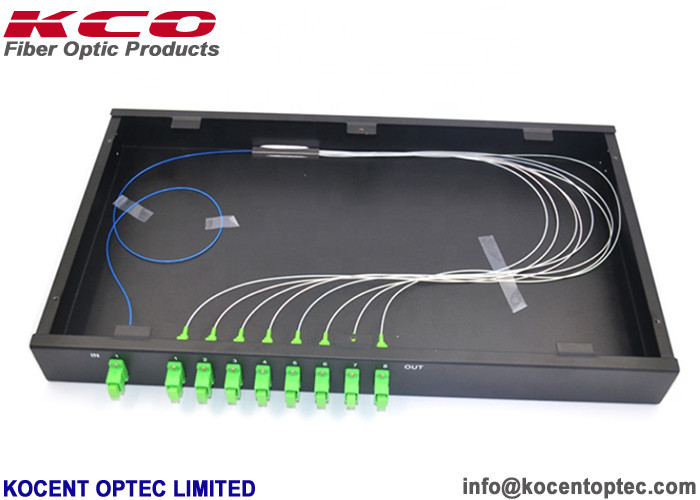

1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter 0

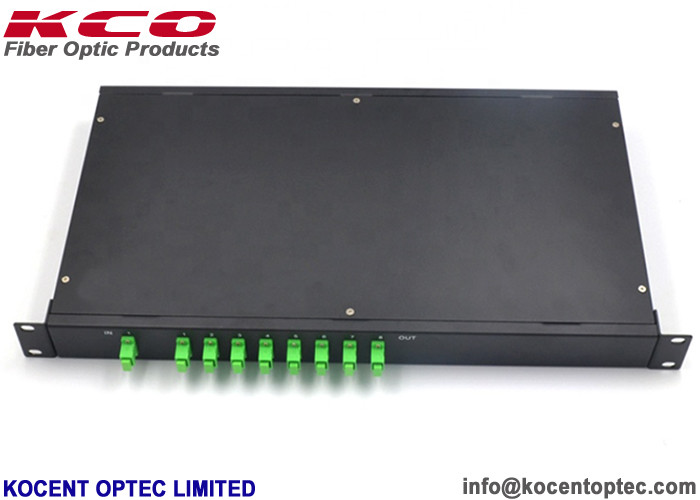

1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter 1

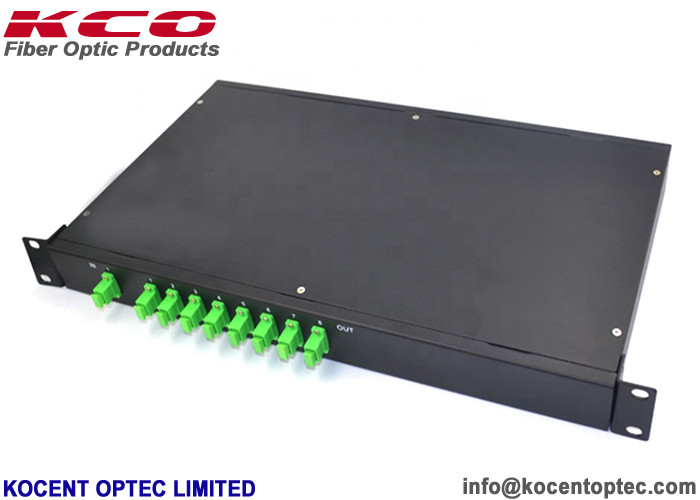

1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter 2





Specifications:

Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min * 55
Return Loss (dB) Min * 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Port Configuration 1x2 1x4 1x8 1x16 1x32 1x64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
PDL(dB) 0.2 0.2 0.2 0.25 0.3 0.35
Wavelength Dependent Loss(dB) 0.3 0.3 0.3 0.5 0.5 0.5
Temp. Dependent Loss (-40~85 ) (dB) 0.4 0.4 0.4 0.5 0.5 0.5
Port Configuration 2X2 2X4 2X8 2X16 2X32 2X64
Insertion Loss(dB) Typical 3.8 7.4 10.8 14.2 17 21
Insertion Loss (dB) Max 4.2 7.8 11.2 14.6 17.5 21.5
Loss Uniformity (dB) 1 1.4 1.5 2 2.5 2.5
PDL (dB) 0.2 0.2 0.4 0.4 0.4 0.5
Wavelength Dependent Loss(dB) 0.8 0.8 0.8 0.8 0.8 1
Temp. Dependent Loss(-40~+85°C) 0.5 0.5 0.5 0.8 0.8 1



Relation products:



1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter 3





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



1*8 PLC Optical Fiber Splitter 1x8 SC/APC Patch Panel Rackmount Splitter 4



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
