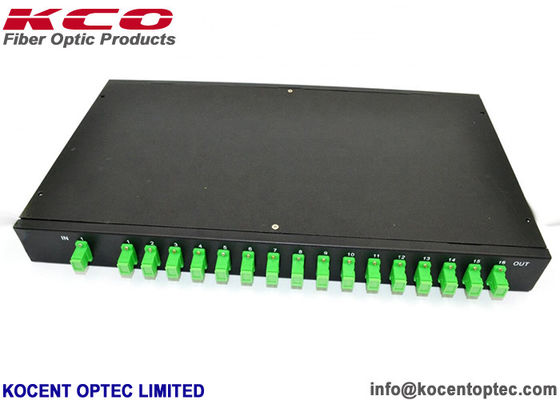

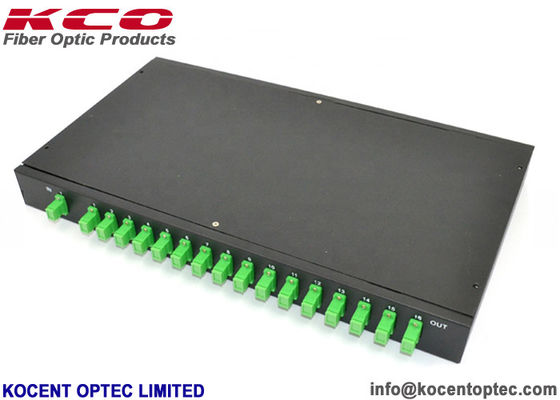

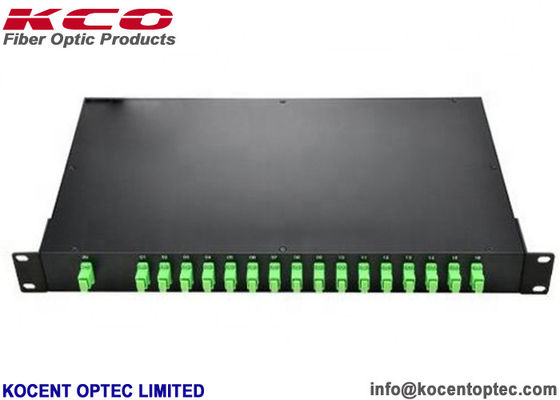

1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount

  • 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount
  • 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount
  • 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount
  • 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-Rack-1x16-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~5 days
Payment Terms Western Union,T/T,L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Type LGX Box Length 1.0m
Splitter Type 1*16 1x16 Split Way 1 Way Input & 16 Way Output
Connector SC/APC Cable 0.9mm
P/N KCO-Rack-1x16-SCA MOQ 1pc
Highlight

PLC Optical Splitter

,

ABS Box PLC Splitter
Leave a Message
Product Description
1×16 SC/APC Patch Panel Fiber Optic Splitter - 19" Rack Mount PLC Splitter ODF
This rack-mountable PLC fiber optic splitter features SC/APC connectors and delivers high-performance signal splitting for optical networks. The compact 1U design offers reliable power management with excellent channel uniformity.
Key Features
  • PLC technology for reduced insertion loss and high reliability
  • Compact 1U 19" rack mount design
  • Available in various configurations (1×2 to 1×128)
  • Multiple connector options: SC/APC, SC/UPC, LC/APC, LC/UPC, FC/UPC, FC/APC
  • Wide operating wavelength: 1260nm to 1650nm
  • Broad temperature range: -40℃ to 85℃
  • Telcordia GR-1209/1221 qualified
  • ROHS compliant materials
1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount 0 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount 1
Applications
  • Fiber to the point (FTTX)
  • Fiber to the home (FTTH)
  • Passive optical networks (PON)
  • Local area networks (LAN)
  • Cable television (CATV)
  • Test equipment
Technical Specifications
Parameter Value
Fiber length 1m or custom length
Connector Type Custom specified
Optical Fiber Type Corning SMF-28e fiber, G657A1 or as customized
Directivity (dB) Min 55
Return Loss (dB) Min 55 (50)
Power Handling (mW) 300
Operating Wavelength (nm) 1260 ~ 1650
Operating Temperature(°C) -40~ +85
Storage Temperature(°C) -40 ~ +85
Performance Specifications
Port Configuration 1×2 1×4 1×8 1×16 1×32 1×64
Insertion Loss(dB) Typical 3.6 7.1 10.2 13.5 16.5 20.5
Insertion Loss (dB) Max 4.0 7.3 10.5 13.7 16.9 21.0
Loss Uniformity (dB) 0.6 0.6 0.8 1.2 1.5 2
OEM/ODM Services
Custom branding available for cables, packaging, labels, and products. Contact our sales team for personalized solutions.
1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount 2 1.0m 1x16 SC/APC Fiber Optic Splitter with Low Insertion Loss and Telcordia GR-1209/1221 Qualified for 19'' Rack Mount 3
Packaging & Shipping

Packaging: Standard export packing in carton boxes, wooden boxes, or on pallets.

Shipping Options: International express (DHL, UPS, TNT), air freight, or sea freight from major Chinese ports.
