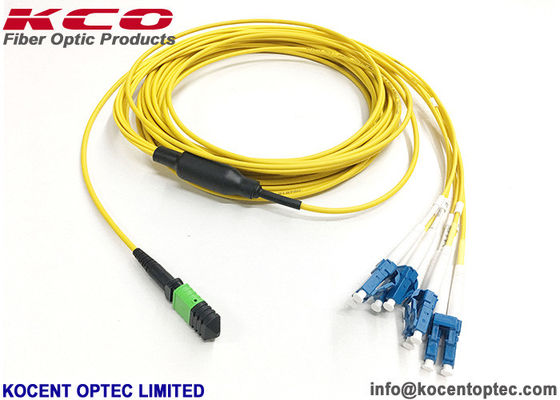

40G 100G Duplex Harness MPO MTP Patch Cord for Data Center MPO Fiber Optic Patch Cord

  • 40G 100G Duplex Harness MPO MTP Patch Cord for Data Center MPO Fiber Optic Patch Cord
  • 40G 100G Duplex Harness MPO MTP Patch Cord for Data Center MPO Fiber Optic Patch Cord
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPO/F-LC/UPC-G657A-xm-LSZH
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO/APC Product Name MTP/MPO To LC Fanout Patch Cord
Fiber SM Cover LSZH
Insertion Loss 0.35dB Return Loss 55dB
Diameter 3.0mm Polish APC,UPC
Highlight

qsfp breakout cable

,

fiber optic breakout cable
Leave a Message
Product Description
Product Overview

The 40G/100G MPO/MTP to LC Duplex Harness Fiber Optic Patch Cable is engineered for high-density data center environments. It provides a secure, high-performance transition between MPO/MTP backbone connections and LC or SC discrete patching interfaces, supporting rapid deployment and simplified reconfiguration of critical network infrastructure.

Key Features
  • MTP/MPO standard-compliant multifibre connector
  • LC (SFF data center standard) and SC discrete interfaces
  • Available in OS1/OS2, OM3, and OM4 fibre grades (OM1 and OM2 also available)
  • 12 and 24 fibre versions — 12 LC (Duplex) / SC (Simplex) optical parts
  • Polarity options: A (standard), B, or C
  • Factory terminated and fully tested for guaranteed performance
  • High-performance zirconia sleeve adaptors
Detailed Description

MTP/MPO Cassette Modules provide a secure transition between MTP/MPO and LC or SC discrete connectors. They are used to interconnect MTP/MPO backbones with LC or SC patching. The modular system allows for rapid deployment of high-density data center infrastructure, as well as improved troubleshooting and reconfiguration during moves, adds, and changes. Cassettes can be mounted in 1U or 3U 19" multislot chassis.

MTP/MPO Cassettes contain factory-controlled and tested MTP/MPO-LC fanouts to deliver consistent optical performance and reliability. Low-loss MTP/MPO Elite and LC or SC Premium versions are offered, featuring low insertion loss for demanding power-budget high-speed networks.

Quick Details
  • Name: MPO-LC Single Mode 8 Core Optical Fiber Patch Cord
  • Ferrule End-face: PC, UPC, APC
  • Fiber Type: OS1, OS2, OM1, OM2, OM3, OM4, OM5
  • Cable Core: 8-core, 12-core, 24-core, 48-core, 72-core, 96-core, 144-core
  • Cable Type: Flat, Round
Manufacturer Introduction

Kocent Optec Limited is a leading company in developing and manufacturing advanced fiber optic products. The company primarily offers CPRI waterproof jumpers, MPO/MTP patch cords, standard fiber optic patch cords, fast connectors, PLC splitters, fiber optic boxes, and cables.

We provide OEM/ODM services with all types and lengths of MPO/MTP patch cables. Our MPO/MTP patch cables are available in Single Mode and Multimode (OM1, OM2, OM3, OM4, and OM5). Connectors can be MPO/MTP as well as other types such as LC, FC, ST, SC, E2000, MU, DIN, and MTRJ.

Applications
  • CATV
  • Metro networks
  • Test equipment
  • Premise installations
  • Active device termination
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Wide Area Networks (WANs)
  • FTTx (FTTH, FTTO, FTTB, FTTA, and more)
Specifications
Parameter Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Maximum Insertion Loss — Elite / Low Loss ≤0.35 dB ≤0.35 dB ≤0.35 dB
Maximum Insertion Loss — Standard / Low Loss ≤0.75 dB ≤0.75 dB ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310 nm 1310 nm 1310 nm
Polarity Types
Diagram illustrating Polarity A, B, and C configurations for MPO/MTP fiber optic patch cords

Polarity A (standard), B, and C configurations available.

Related Products
Selection of related fiber optic products including MPO/MTP patch cords, PLC splitters, and fiber optic connectors
OEM/ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — it is no problem. Our OEM and ODM service is always ready to accommodate your requirements.

Example of OEM/ODM branding options for fiber optic cables and packaging
Packing & Shipping
Packing

According to standard export packing: carton box, wooden box, or wooden pallet.

Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
