36 Connector Fiber Optic Polishing Equipment Fixture Jigs

Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-4JIG-FCA-36
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-4JIG-FCU-36 Grade 0.3dB, 3D
Polishing Scope SC/UPC Connector Disk Size 179mm
Connector 36 Connector Machine Corner Pressure Polishing Machine
High Light

24 Ports Grinding Machine Jigs

,

SC UPC Connector Fixture Jigs

Leave a Message
Product Description

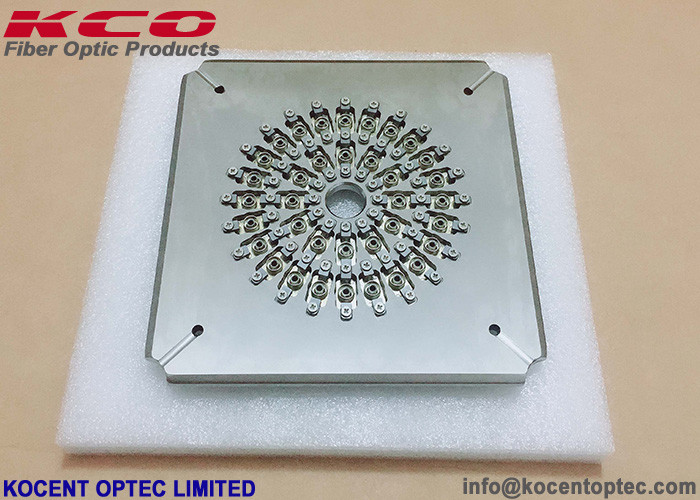

FC/UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass For Four Corners Polishing Machine



Description:

- The polishing jigs (or also be called polishing fixture) is using to fix the fiber optic connector when polishing.

- It is one of most importance part in the fiber optic patch cord production line.

- A good polishing jigs can help make to high quality that can pass 3D of fiber optic patch cord / pigtail.

- This polishing jigs is designed for corner pressure fiber optic polishing machine only.

- It has 36 FC/APC adapter on the jigs, maximum can polish 36 connectors each time, increase grinding efficiency
- It is suitable for FC/APC connector polishing style.
- Come with 36 positions for connector head.
- Polishing 36 connector a time.

- FC/APC poloshing jig is available in 24 ports, 32 ports, and maximum 36 ports.



Feature:

- The interference rate of 2. is over 90%.

- High quality steel construction, high precision.

- Each grinding disc can be fitted with a plurality of grinding heads, and the production efficiency is high.
- Adapters interchangeable to extend the service life of the grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable.

- The utility model saves the number of the grinding disk and saves the production cost.
- Grinding can be integrated grinding disk, also suitable for rework.
- The use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.

- According to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.





36 Connector Fiber Optic Polishing Equipment Fixture Jigs 0

36 Connector Fiber Optic Polishing Equipment Fixture Jigs 1

36 Connector Fiber Optic Polishing Equipment Fixture Jigs 2



Specification

Product Size
174mm*174mm*5.1mm
Wet weight
About 1.2kg
Application
Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher
Four-corner pressure optical fiber connector polishing machine
Material
Hardened stainless steel2316



Applications:

Product Type Application
D

· Lapping for Fiber optic connector, fiber array, glass pig tail(angel removal, rough grinding, medium polishing, fine finishing)

·Polishing for magnetic heads and hard disks

·Lapping and polishing for optical glasses, optical crystal , LED

·Lapping and polishing for Semiconductor wafer (gallium arsenide, indium phosphide etc.)

·Edge polishing for silicon wafer

SC

·Epoxy and glass removal

·Lapping and polishing for plastic ferrules

·Fine finishing and polishing for magnetic heads

AO

·Polishing for fiber optical connectors

·Polishing for silicon wafer used in Solar cells

·Polishing for hard disks

·Polishing for ITO

·Lapping and polishing for optical crystal

CO

·The final polishing for fiber optical connectors

·Polishing for optical devices

SO ·The final super-precise polishing of optical fiber connector



Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green
20       White
16       White
15 Yellow-Green Tawny Light Green Brown
12       Yellow
9 Blue Orange Gray-green Blue
6 Yellow
5     Gray-green White
3 Pink Tan Pink & White
2     Gray-green Bright Green
1 off-white Lavender Gray-green Blue
0.5 off-white Brown-yellow   White White
0.3       White Dark Red
0.2 Grey
0.1 Light Brown   White
0.02           Transparent
0.01           Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm(6inch),

228*228mm(9inch)

Note: Other film sizes are available upon request.
