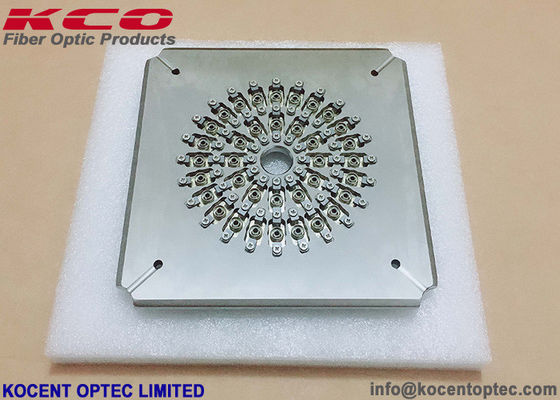

36 Connector Fiber Optic Polishing Fixture Jigs / Optical Fiber Patch Cord Polishing Equipment
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | RoHS, ISO |
| Model Number | KCO-4JIG-FCA-36 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 200,000 pcs/ month |
Product Details
| P/N | KCO-4JIG-FCU-36 | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | SC/UPC Connector | Disk Size | 179mm |
| Connector | 36 Connector | Machine | Corner Pressure Polishing Machine |
| Highlight | 24 Ports Grinding Machine Jigs,SC UPC Connector Fixture Jigs |
||
Product Description
FC/UPC Fiber Optic Connector Polishing Jigs 36 Ports 3D Pass For Four Corners Polishing Machine
Description:
- The polishing jigs (or also be called polishing fixture) is using to fix the fiber optic connector when polishing.
- It is one of most importance part in the fiber optic patch cord production line.
- A good polishing jigs can help make to high quality that can pass 3D of fiber optic patch cord / pigtail.
- This polishing jigs is designed for corner pressure fiber optic polishing machine only.
- It has 36 FC/APC adapter on the jigs, maximum can polish 36 connectors each time, increase grinding efficiency
- It is suitable for FC/APC connector polishing style.
- Come with 36 positions for connector head.
- Polishing 36 connector a time.
- FC/APC poloshing jig is available in 24 ports, 32 ports, and maximum 36 ports.
Feature:
- The interference rate of 2. is over 90%.
- High quality steel construction, high precision.
- Each grinding disc can be fitted with a plurality of grinding heads, and the production efficiency is high.
- Adapters interchangeable to extend the service life of the grinding disk.
- Three kinds of grinding heads, SC/PC, FC/PC, ST/PC, interchangeable.
- The utility model saves the number of the grinding disk and saves the production cost.
- Grinding can be integrated grinding disk, also suitable for rework.
- The use of independent afterburner way to eliminate the grinding head of different length of exposure on the impact of grinding.
- According to customer requirements design, APC, MPO, E2000, MTP, MPX and so on.
Specification
| Product Size | 174mm*174mm*5.1mm |
| Wet weight | About 1.2kg |
| Application | Fixed FC / APC Fiber Connector Polished |
| Suitable Fiber Connector Polisher | Four-corner pressure optical fiber connector polishing machine |
| Material | Hardened stainless steel2316 |
Applications:
| Product Type | Application |
|---|---|
| D |
|
| SC |
|
| AO |
|
| CO |
|
| SO |
|
Specifications:
| Type | D(Diamond) | SC (Silicon Carbide) | AO(Aluminum Oxide) | CO(Cerium Oxide) | SO(Silicon Oxide) | ||
|---|---|---|---|---|---|---|---|
| Grit Size/um | 30 | Green | Light Green | Green | |||
| 20 | White | ||||||
| 16 | White | ||||||
| 15 | Yellow-Green | Tawny | Light Green | Brown | |||
| 12 | Yellow | ||||||
| 9 | Blue | Orange | Gray-green | Blue | |||
| 6 | Yellow | ||||||
| 5 | Gray-green | White | |||||
| 3 | Pink | Tan | Pink & White | ||||
| 2 | Gray-green | Bright Green | |||||
| 1 | off-white | Lavender | Gray-green | Blue | |||
| 0.5 | off-white | Brown-yellow | White | White | |||
| 0.3 | White | Dark Red | |||||
| 0.2 | Grey | ||||||
| 0.1 | Light Brown | White | |||||
| 0.02 | Transparent | ||||||
| 0.01 | Transparent | ||||||
| Recommended Polishing Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water | ||
| Standard Size | Disk:Φ70mm, Φ110mm, Φ127mm(5inch), Φ203mm(8inch) | ||||||
Sheet: 114mm*114mm, 152mm*152mm(6inch), 228*228mm(9inch) | |||||||
| Note: Other film sizes are available upon request. | |||||||
Fiber Optic Patch Cord Production Process:
OEM/ODM Service:
If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.
Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.
Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
