KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure

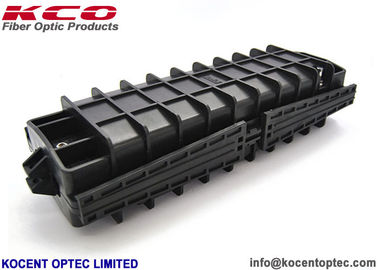

Large Image :  KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure

Product Details:
Place of Origin: Guangdong, China
Brand Name: KCO, Kocent Optec Limited
Certification: iSO9001, RoHS
Model Number: KCO-MADIDI-MSC-D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: Carton box, wooden pallet
Delivery Time: 5~14 working days
Payment Terms: T/T, L/C
Supply Ability: 5,000pcs/week
Detailed Product Description
Type: Inline Type Cable Ports: 4 Ports
Cable Diameter: 8.0~22.0mm Min. Capacity: 4 Cores
Max Capacity: 96 Cores Material: PPR, ABS, PC, PP
High Light:

Inline Optical Fiber Enclosure


48fo Fiber Optic Distribution Box


KCO-MADIDI-MSC-D 48fo 4tray Fiber Optic Splice Closure Box 12 Cores 24 Fibers



- Kocent Optec Limited is one of lead supplier of passive fiber optic product in China. Special is all type of fiber optic splice eclosure box.

- We can provide Horizontal type ABS/PC/PPR fiber optic splice closure from 6 cores up to 288 cores for fiber optic cables connection use for aerial, underground, pipeline, hand-holes in Telecom project.

- The cable out-port can do 3 ports up to 10 ports.

- We also can supply vertical type of fiber optic splice enclosure box. Also, OEM Service is available, such as LOGO print, package, label, etc all can be customized.


Quick detail:

- Name: Inline fiber optic splice enclosure box

- Part number: KCO-MADIDI-MSC-D

- Size: 480*160*105mm

- Weight: about 2.2kg

- Cable entry port: 4 ports

- Capacity of fibers: 96 cores

- Splice tray number: max. 4 trays

- Material: ABS/ PC/PPR/PP Plastic

- Cable Diameter: 7.0-22.0mm

- Working temperature: -40℃ to 65℃


- CATV networks

- Local area networks

- Widely used in FTTH access network
- Telecommunication networks
- Data communications networks

- Aerial, Direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.



- High quality plastic made.

- Great corrosion resistance.
- Suitable for any harsh environment.
- Anti-lighting.

- Great water-proof function.




Main parts:

No. Name Quantity Usage Remark
1 Crust 1 set Protecting fiber cable splices in whole
2 Fusion splice tray Max.4 tray Fix fiber, Protect heat-shrinkable tube Sleeve
3 Foundation 1 set Fix cable,reinforced core and tray
4 Seal fitting 1 set Air-proof between cover and bottom
5 Port plug 4 pieces Sealing empty ports
6 Valve 1 set Pressure measurement,inspection sealing Configure by user


Accessories list:

No. Name of accessories Quantity Usage Remarks
1 Heat shrinkable tube   Protecting fiber splices Configuration as per capacity
2 Nylon tie   Fixing fiber with protective coat Configuration as per capacity
3 Insulation tape 1 roll Enlarging diameter of fiber cable for easy fixing
4 Seal tape 1 roll Enlarging diameter of fiber cable which fits in with seal fitting Configuration as per specification
5 Hanging hook 1 set For aerial use
6 Label tape 1 piece Sign fiber
7 Spanner 1 piece Install bolts of shell
8 Desiccant 1 bag Desiccating air.



Product pictures:

KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure 0

KCO-MADIDI-MSC-D 12 Cores 4 Tray 48fo Horizontal Fiber Optic Splice Enclosure 1


OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
