Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables

  • Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables
  • Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables
  • Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables
  • Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables
  • Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-YTTC-1
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-YTTC-1 Color Green
Insertion Loss 0.2dB Return Loss 50dB
3D Pass Length 50mm 55mm 60mm
Highlight

FTTH FTTA Fiber Optic Connector

,

60mm Fiber Optic Connector
Leave a Message
Product Description
60mm Length FTTH FTTA SC UPC Fiber Optic Fast Connector
SC UPC Fast Connector Fiber Optic Quick Connector FTTH FTTA Conector De Campo Fibra
Key Features
  • Factory pre-polished, field-installable connectors eliminate hand polishing
  • Mechanical splice technology ensures precision fiber alignment
  • No special assembly tools required
  • Reconnectable in the field without epoxy or polishing
  • Compatible with 3mm drop cable and 3x2mm flat cable
  • Fast and easy installation with one-touch, push-pull system
  • Low reflection and high reliability with no matching gel
  • Splicing point protected inside connector with heat shrinkable tube
  • High optical performance: average insertion loss < -0.20dB, return loss > 55dB
  • Durable construction with tensile strength > 60N
  • Simple operation requiring no professional skills
Technical Specifications
Item KCO-YTTC-1
Suitable Cable OD 2.0mm, 3.0mm, 0.9mm
Optical fiber diameter 125μm
Tight buffer diameter 900μm
Fiber mode Single & multi mode
Operation time About 120s (no fiber cut)
Insert loss ≤ 0.3dB (1310nm & 1550nm)
Return loss > 40dB
Tensile strength >50 N
Using temperature -40~+75°C
Applications
  • Patch panels
  • Distribution frames
  • Maintenance or emergency restoration of fiber networks
  • FTTH Outlets fast connector
  • Connection at the desk for LAN environments

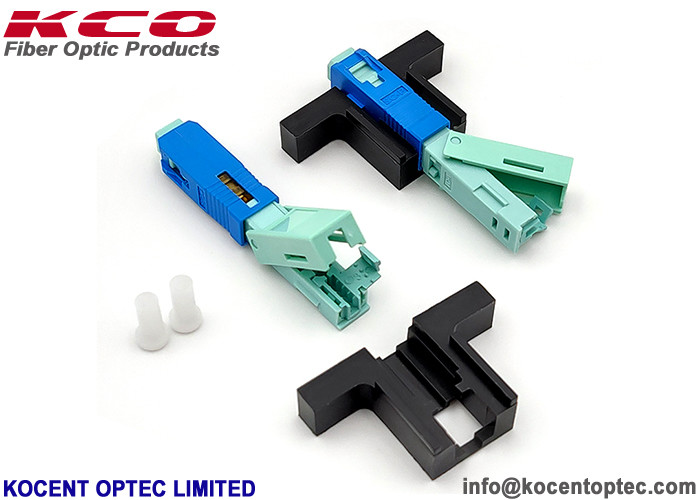

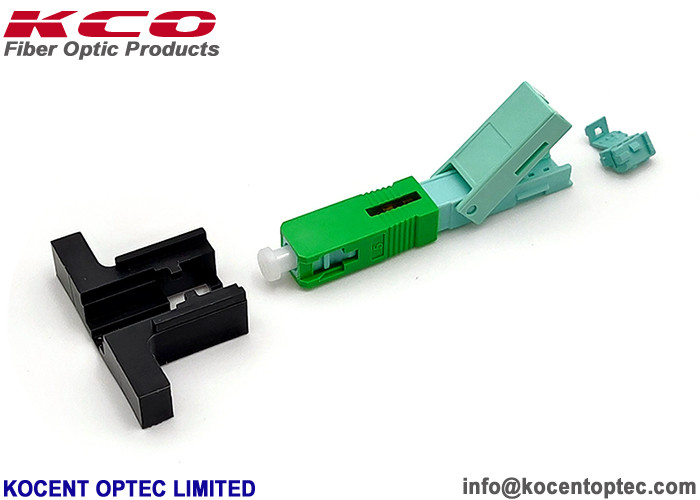

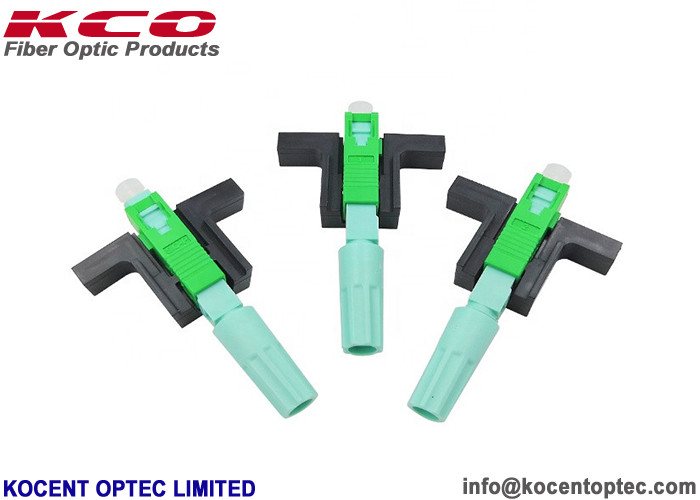

Product Images
Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables 0 Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables 1 Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables 2
Delivery Information
Material Preparation Time: 3 days (or inventory)
Production & Assembly Time: 7 days
Testing & Packaging Time: 2 days
Total Delivery Time: 12 days in 50,000pcs for safe delivery lead time
Faster delivery available upon negotiation
Manufacturer Information
Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China. Our products meet Telecom requirements including Viettel and VNPT standards.
Logo print: Free for quantity > 10k (pcs)
Logo Lettering: Free for quantity > 100k (pcs)

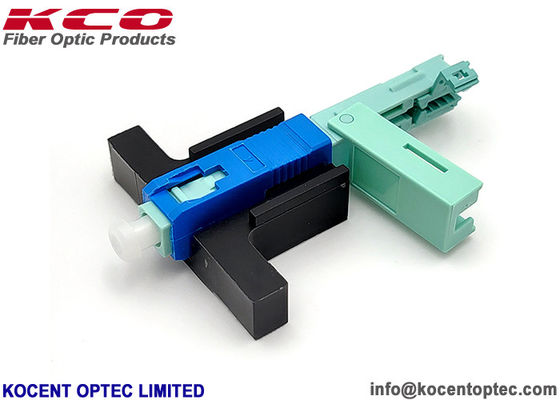

Pre-Polished SC UPC Fast Connector with 60mm Length and Tensile Strength >60N for 3mm and 2mm Cables 3
OEM/ODM Services
Custom branding available on goods, packaging, and labels. Contact our sales team for OEM and ODM support.
Packaging & Shipping
Packaging: Standard export packing (carton box, wooden box, wooden pallet)
Shipping Options:
  • International express (UPS, TNT, DHL)
  • International air (CA, AA, EA)
  • Sea freight
Standard Export Ports: Shenzhen, Hongkong, Ningbo
Standard Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
