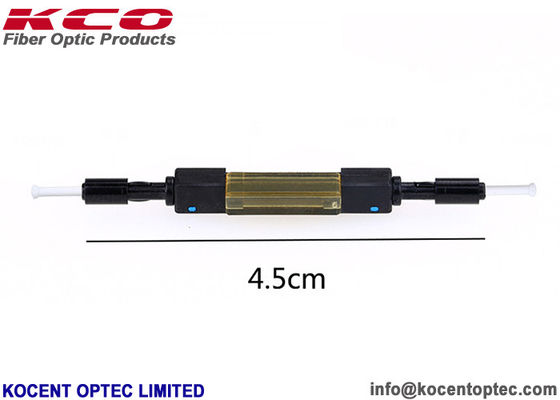

45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector

  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
  • 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-L925B
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 100,000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-L925B Color Black
Insertion Loss 0.2dB Return Loss 50dB
3D Pass Length 45mm
Highlight

45mm Fiber Optic Connector

,

Optical Fiber Mechanical Splicer
Leave a Message
Product Description
Drop Cable KCO-L925B 45mm FTTH Fiber Optic Mechanical Splicer
Product Description

KCO-L925B FTTH Fiber Optic Quick Connector Optical Fiber Field Assembly Mechanical Splicer for Drop Cable featuring mechanical splice technology ensuring precision fiber alignment.

Key Specifications
Item KCO-L925B
Applicable for φ0.25 mm & φ0.90 mm fiber
Size 45*4.0*4.7mm
Optical fiber diameter 125μm (G652D & G657A)
Tight buffer diameter 250μm & 900μm
Applicable mode Single & multimode
Insert loss ≤ 0.15 dB (1310nm & 1490nm & 1550nm)
Return loss ≤ -50dB
Using temperature -40°C to +75°C
Product Features
  • Bare fiber, tight-clad and pigtail triple can fully meet environmental requirements
  • Unique Box type crimping technology for secure connections
  • Precision metal alloy components with coaxial autocollimator for durable optical performance
  • Fiber axial solid fit reduces performance degradation
  • Integrated shell protection for long-term outdoor use
  • High success rate with average connecting time of 150 seconds
  • No epoxy or polishing required for fast field termination
  • Compatible with 3mm drop cable and 3x2mm flat cable
  • Splicing point protected inside connector - no additional work required
  • One-touch push-pull system for easy assembly
Performance Advantages
Average insertion loss less than -0.20dB
Return loss more than 55dB
Tensile strength greater than 60N
No failure rate with long service life
Reduces late maintenance costs

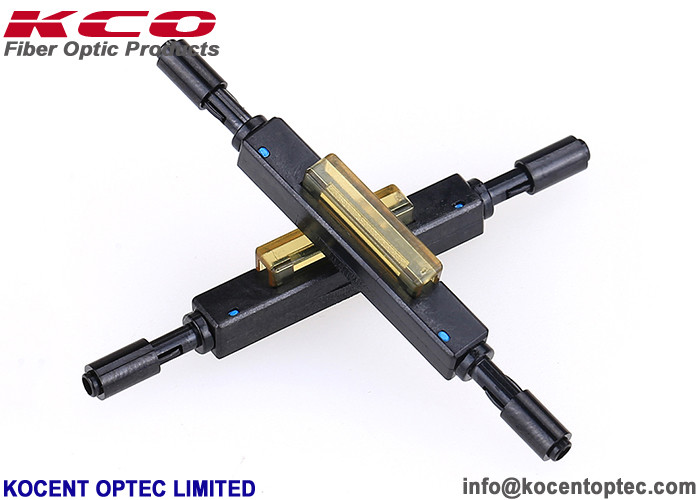

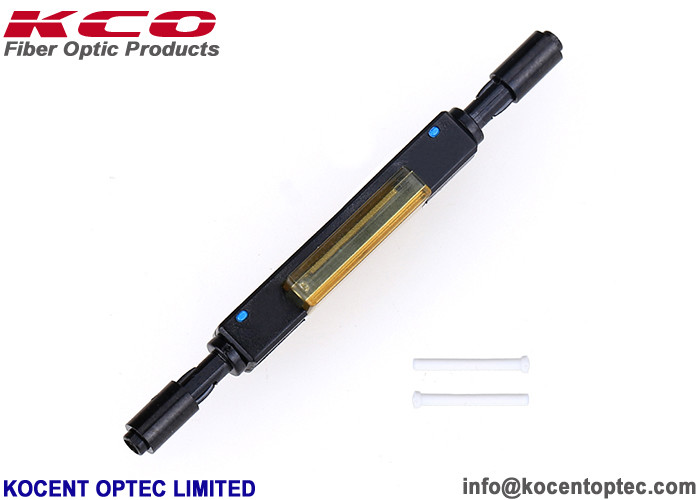

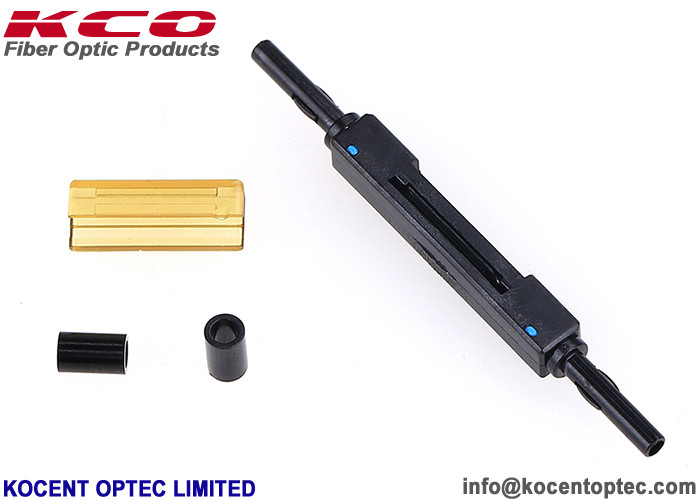

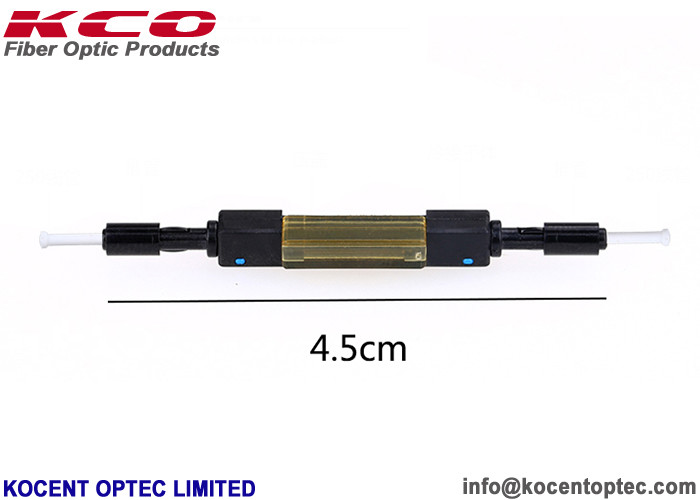

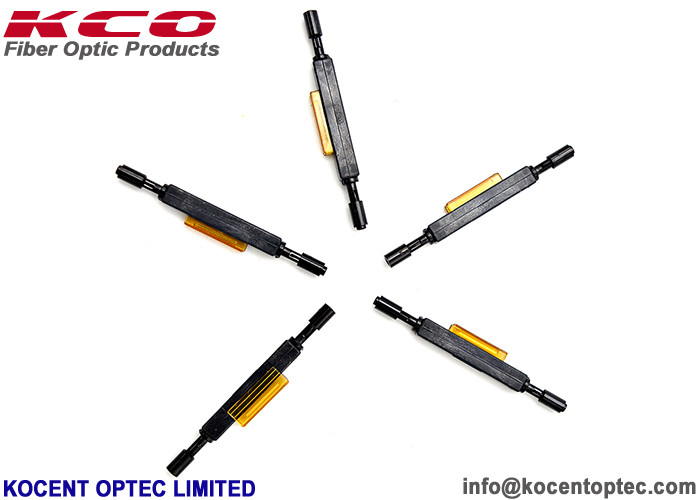

Product Photos
45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector 0 45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector 1
Delivery Information
  • Material Preparation: 3 days (or inventory)
  • Production & Assembly: 7 days
  • Testing & Packaging: 2 days
  • Total Delivery Time: 12 days for 50,000pcs
  • Faster delivery available upon negotiation
Manufacturer Information

Kocent Optec Limited is a leading supplier of fiber optic fast connectors in China, meeting Telecom requirements for Viettel, VNPT and others.

  • Free logo print for quantities over 10,000pcs
  • Free logo lettering for quantities over 100,000pcs
45mm Length FTTH Quick Connector with 0.2dB Insertion Loss and 50dB Return Loss Fiber Optic Fast Connector 2
OEM/ODM Services

Custom branding available on products, packaging, and labels. Contact our sales team for OEM/ODM solutions.

Packaging & Shipping
  • Standard export packing (carton box, wooden box, pallet)
  • International express: UPS, TNT, DHL
  • International air freight
  • Sea shipping available
  • Standard export ports: Shenzhen, Hongkong, Ningbo
  • Standard airports: Shenzhen, Hongkong, Hangzhou, Shanghai
