G657A1 Elite Insertion Loss APC MPO MTP Patch Cord Single Mode MPO Fiber Patch Cable

  • G657A1 Elite Insertion Loss APC MPO MTP Patch Cord Single Mode MPO Fiber Patch Cable
  • G657A1 Elite Insertion Loss APC MPO MTP Patch Cord Single Mode MPO Fiber Patch Cable
  • G657A1 Elite Insertion Loss APC MPO MTP Patch Cord Single Mode MPO Fiber Patch Cable
  • G657A1 Elite Insertion Loss APC MPO MTP Patch Cord Single Mode MPO Fiber Patch Cable
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number MPOAF-MPOAF-G657A1-48fo-xxM
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C
Product Details
Connector MPO Fiber MM, OM1, OM2, OM3, OM4, OM5
Cover PVC, LSZH Insertion Loss 0.2dB
Return Loss 55dB Diameter 2.0mm, 3.0mm
Length 1, 3, 5, 7, 10, 15, 20, ... Core 9/125
Fiber Count 8fibers, 12 Fibers, 24 Fibers Color Pink, Violet, Customized
Highlight

G657A Fibre Optic Patch Cable

,

0.35dB Fibre Optic Patch Cable

,

48cores Single Mode Patch Cable
Leave a Message
Product Description
Product Overview

The MPO APC 24-fiber / 48-core G657A1 Elite Insertion Loss MTP Fiber Optic Trunk Patch Cable is engineered for rapid deployment of high-density backbone cabling in data centers and other high-fiber environments. It significantly reduces network installation and reconfiguration time and cost.

These MPO/MTP cable assemblies are used to interconnect cassettes, panels, or fan-outs. They are available in standard 8, 12, 24, or 48 core versions using a compact and rugged microcable structure. The compact cable optimizes cableway use and improves airflow.

Built with the highest quality components, low-loss Elite versions are offered, featuring low insertion loss for demanding high-speed networks where power budgets are critical. The MTP/MPO connector is approximately the same size as an SC connector but can accommodate 8, 12, 16, or 24 fibers, providing up to 8, 12, 16, or 24 times the density — offering savings in circuit card and rack space.

A simple push-pull latching mechanism ensures easy and intuitive insertion and removal.

Key Features
  • Available in Elite insertion loss and standard insertion loss versions
  • Utilizes MPO/MTP connectors
  • Inner: Ceramic Ferrule
  • Standard 8-fiber, 12-fiber, 16-fiber, and 24-fiber MPO/MTP connector options
  • Available in OS1/2, OM1, OM2, OM3, OM4, and OM5 fiber types
  • Compliant with Telcordia GR-326-Core and IEC standards
  • Green production, RoHS compliant
  • High-density cable design
  • Optimized performance
  • Interface polished types: PC, UPC, and APC
  • Supports direct attachment to 40G/100G transceivers
  • 100% factory tested, with test results included for each assembly
  • Factory terminated
Applications
  • CATV
  • Metro networks
  • Data centers
  • Test equipment
  • Premise installations
  • Active device termination
  • Passive fiber optic systems
  • Data processing networks
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Wide Area Networks (WANs)
  • FTTx (FTTH, FTTO, FTTB, FTTA, etc.)
Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24, etc. 8, 12, 24, etc. 8, 12, 24, etc.
Fiber Type G652D, G657A1, etc. G652D, G657A1, etc. OM1, OM2, OM3, etc.
Maximum Insertion Loss Elite: ≤0.35 dB
Standard: ≤0.75 dB		 Elite: ≤0.35 dB
Standard: ≤0.75 dB		 Elite: ≤0.35 dB
Standard: ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310 nm 1310 nm 1310 nm
Product Photos

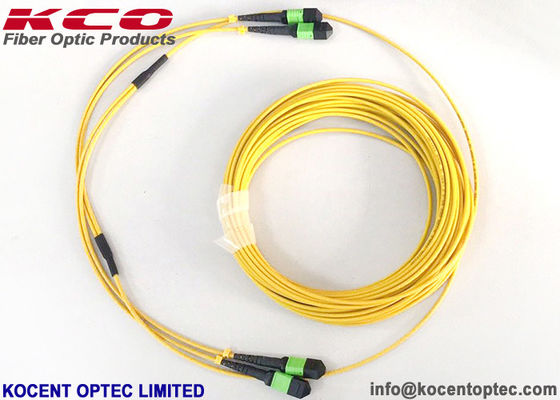

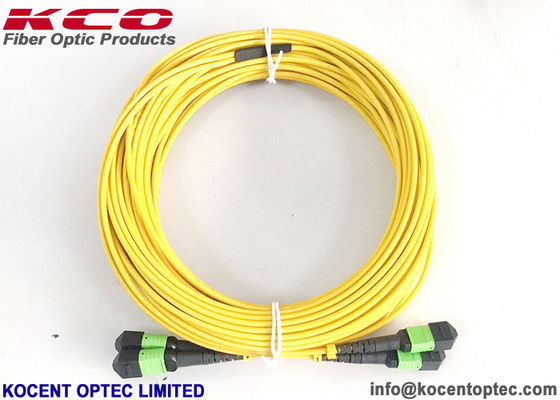

MPO APC 24-fiber 48-core G657A1 MTP fiber optic trunk patch cable with connectors

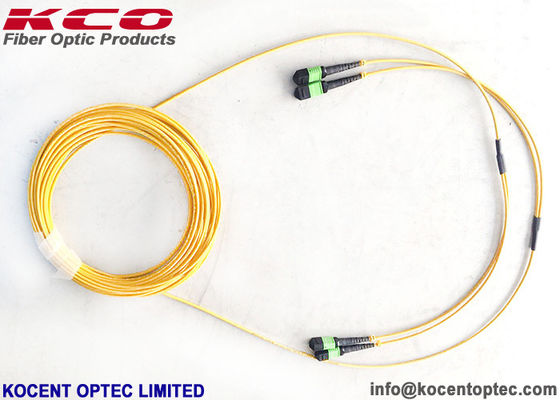

Close-up view of MPO MTP fiber optic cable assembly showing connector and cable structure
MPO MTP fiber optic patch cable product diagram showing dimensions and connector types
Related Products
Related fiber optic products including MPO MTP cable assemblies and accessories
OEM / ODM Service

If you want to show your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — our OEM and ODM service is always ready to accommodate. Please contact our sales team to get the best support.

OEM ODM custom branding service for fiber optic cables and packaging
Packing & Shipping
Packing
  • According to standard export packing
  • Carton box, wooden box, wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
  • Standard export sea port: Shenzhen, Hongkong, Ningbo
  • Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
