OM3 OM4 12fo 24fo 50/125 MPO MTP Patch Cord MPO Trunk Cable for Data Center
Product Details
| Connector | MPO | Fiber | MM, OM1, OM2, OM3, OM4, OM5 |
|---|---|---|---|
| Cover | PVC, LSZH | Insertion Loss | 0.35dB |
| Return Loss | 55dB | Diameter | 2.0mm, 3.0mm |
| Length | 1, 3, 5, 7, 10, 15, 20, ... | Core | 50/125 |
| Fiber Count | 4fibers, 8fibers, 12 Fibers, 24 Fibers | Color | Aqua, Pink, Violet, Customized |
| Highlight | OM4 Optical Fibre Patch Cable,96fiber Optical Fibre Patch Cable,48fiber MPO MTP Patch Cable |
||
Product Description
Product Overview
The MPO-12 12F/24F Multimode OM3/OM4 50/125 MPO/MTP Optical Fibre Trunk Cable is a high-density, multi-fiber connectivity solution designed for high-bandwidth and high-density cabling system applications. Available in 4F, 8F, 12F, and 24F configurations with Elite or Standard insertion loss, this cable is ideal for data center, enterprise, and telecom environments.
The MPO connector is a connector for ribbon cables with at least 8 fibers, designed to provide multi-fiber connectivity in a single connector. It is compliant with the IEC 61754-7 standard and the U.S. TIA-604-5 standard.
Technical Description
Industry standards define three polarity methods for MPOs — Method A, Method B, and Method C. Each method uses different types of MPO cables.
The MPO connector relies on pins and holes to align the ferrules for the entire row(s) of fibers between the pins. The MPO connector can have 1 to 6 rows of 12 fibers each, although only two versions — 12 or 24 fibers — have gained significant market acceptance.
The 24-fiber MTP/MPO cable is commonly used to establish 100GBASE-SR10 links between CFP to CFP transceivers. It allows the use of the ratified 100GBASE-SR10 20-fiber technology today, maximizing infrastructure investment in the event of 4×25 Gb/s ratification.
OM4 fiber is designed to enhance the system cost benefits enabled by 850nm VCSELs for existing 1 Gb/s and 10 Gb/s applications as well as future 40 Gb/s and 100 Gb/s systems. OM4 fiber supports Ethernet, Fibre Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gb/s for ultra-long building backbones and medium-length campus backbones.
Applications
- Metro networks
- Bank data centers
- Communication center rooms
- Building communication centers
- FTTH (Fiber to The Home)
- FTTA (Fiber to The Antenna)
- LAN (Local Area Network)
- Fiber optic testing
- Fiber optic communication systems
- Optical fiber connected and transmitted equipment
- Defense combat readiness
Key Features
- High-density cable design
- Optimized performance
- Available in Elite insertion loss and Standard insertion loss
- Utilizes MPO/MTP connectors
- Available with 8-fiber, 12-fiber, 16-fiber, and 24-fiber MPO/MTP connector standards
- Available in OS1/2, OM1, OM2, OM3, OM4, and OM5 fiber types
- Compliant with Telcordia GR-326-Core and IEC standards
- Green production, RoHS compliant
- Interface polished types: PC, UPC, and APC
- Supports direct attachment to 40G/100G transceivers
- 100% factory tested, with test results included for each assembly
MPO/MTP Polarity

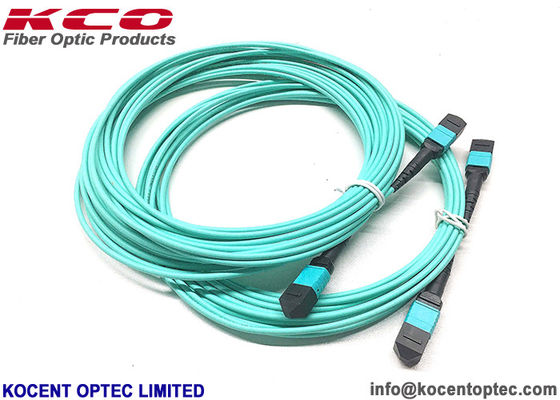

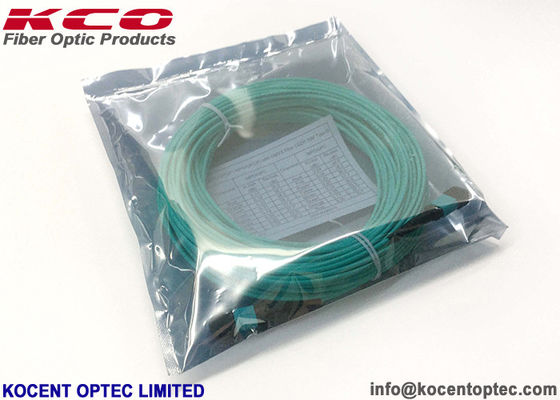

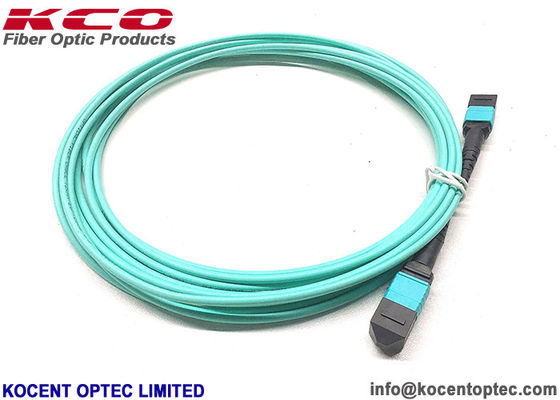

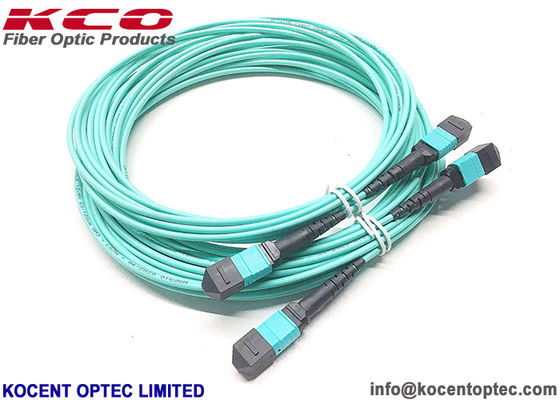

Product Photos
Specifications
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) |
|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. |
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. |
| Maximum Insertion Loss | Elite Low Loss: ≤0.35 dB Standard Low Loss: ≤0.75 dB | Elite Low Loss: ≤0.35 dB Standard Low Loss: ≤0.75 dB | Elite Low Loss: ≤0.35 dB Standard Low Loss: ≤0.60 dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ |
| Test Wavelength | 1310nm | 1310nm | 1310nm |
