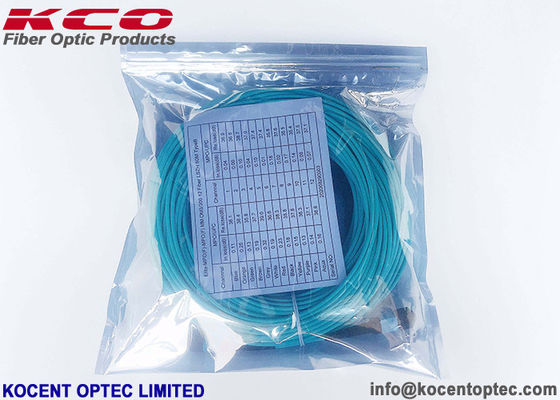

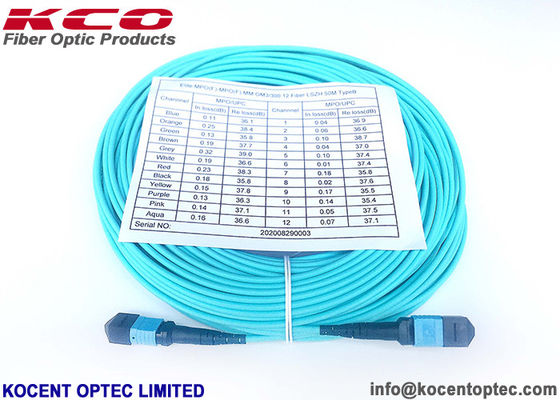

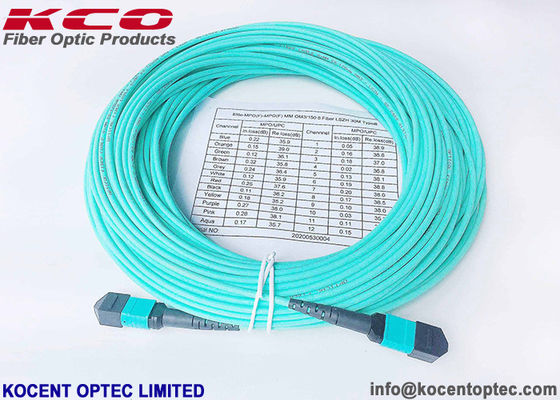

OM4 MPO MTP Patch Cord 16fo 24fo Low IL 0.35dB MPO Fiber Patch Cable for 40G 100G Networks
Product Details
| Connector | MPO | Fiber | MM, OM1, OM2, OM3, OM4, OM5 |
|---|---|---|---|
| Cover | PVC, LSZH | Insertion Loss | 0.35dB |
| Return Loss | 55dB | Diameter | 2.0mm, 3.0mm |
| Length | 1, 3, 5, 7, 10, 15, 20, ... | Core | 50/125 |
| Fiber Count | 4fibers, 8fibers, 12 Fibers, 24 Fibers | Color | Aqua, Pink, Violet, Customized |
| Highlight | 16fo OM4 MPO Patch Cable,Low IL MPO Patch Cable,24fo Optical Fiber Patch Cable |
||
Product Description
Product Overview
The OM4 MPO Patch Cable is available in 4-fiber, 8-fiber, 12-fiber, 16-fiber, and 24-fiber configurations. The cable jacket can be PVC or LSZH, based on customer requirements. Patch cable length is fully customizable. It is designed to fit seamlessly with 40G and 100G network systems.
OM4 fiber is engineered to enhance system cost benefits enabled by 850nm VCSELs for existing 1 Gb/s and 10 Gb/s applications, as well as future 40 Gb/s and 100 Gb/s systems. OM4 fiber supports Ethernet, Fibre Channel, and OIF applications, allowing extended reach upwards of 550 meters at 10 Gb/s for ultra-long building backbones and medium-length campus backbones.
The MPO connector is a connector for ribbon cables with at least 8 fibers, designed to provide multi-fiber connectivity in a single connector to support high-bandwidth and high-density cabling system applications. It is compliant with the IEC 61754-7 standard and the U.S. TIA-604-5 standard.
The MPO connector relies on pins and holes to align the ferrules for the entire row(s) of fibers between the pins. The MPO connector can have 1 to 6 rows of 12 fibers each, although only two versions — 12 or 24 fibers — have gained significant market acceptance.
The 24-fiber MTP/MPO cable is commonly used to establish 100GBASE-SR10 links between CFP to CFP transceivers. It allows the use of the ratified 100GBASE-SR10 20-fiber technology today, maximizing infrastructure investment in the event of 4×25 Gb/s ratification.
MPO Polarity Methods
Industry standards call out three different polarity methods for MPOs — Method A, Method B, and Method C. Each method uses different types of MPO cables.
Applications
- Metro networks
- Bank data centers
- Fiber optic testing
- FTTH (Fiber to The Home)
- FTTA (Fiber to the Antenna)
- LAN (Local Area Network)
- Communication center rooms
- Building communication centers
- Fiber optic communication systems
- Optical fiber connected and transmitted equipment
Key Features
- Available in Elite insertion loss and Standard insertion loss
- Utilizes MPO/MTP connectors
- Available with 8-fiber, 12-fiber, 16-fiber, and 24-fiber MPO/MTP connector standards
- Available in OS1/2, OM1, OM2, OM3, OM4, and OM5 fiber types
- Compliant with Telcordia GR-326-Core and IEC standards
- Green production, RoHS compliant
- Interface polished type: PC, UPC, and APC
- High-density cable design
- Optimized performance
- Supports direct attachment to 40G/100G transceivers
- 100% factory tested, with test results included for each assembly
How to Connect the MPO Connector with MPO Adapter

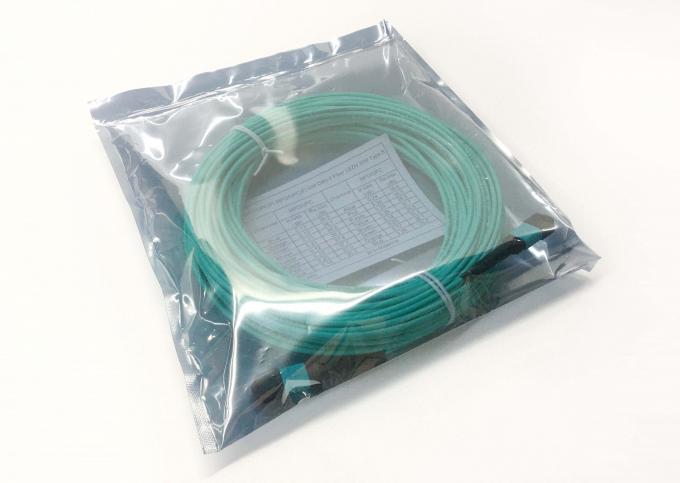

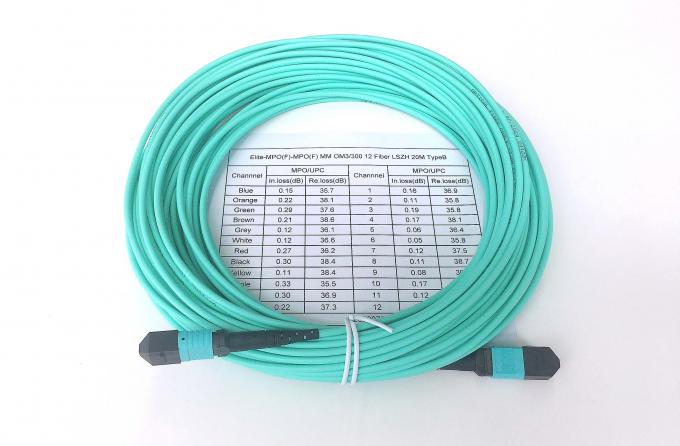

Product Photos
Specifications
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) | |||
|---|---|---|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. | |||
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. | |||
| Maximum Insertion Loss | Elite | Standard | Elite | Standard | Elite | Standard |
| Low Loss ≤0.35 dB | ≤0.75 dB | Low Loss ≤0.35 dB | ≤0.75 dB | Low Loss ≤0.35 dB | ≤0.60 dB | |
| Return Loss | ≥60 dB | ≥60 dB | NA | |||
| Durability | ≥500 times | ≥500 times | ≥500 times | |||
| Operating Temperature | -40℃ ~ +80℃ | -40℃ ~ +80℃ | -40℃ ~ +80℃ | |||
| Test Wavelength | 1310 nm | 1310 nm | 1310 nm | |||
Related Products
OEM / ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — our OEM and ODM service is always ready to accommodate. Please contact our sales team to get the best support.
Packing & Shipping

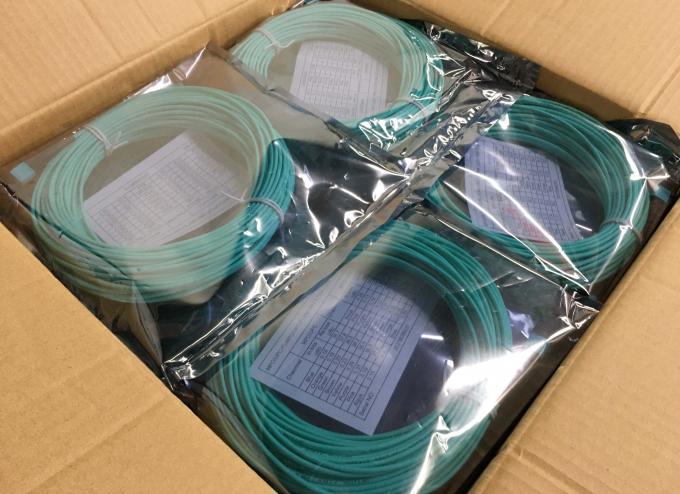

Packing
- Standard export packing
- Carton box, wooden box, wooden pallet
Shipping
- International express: UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
