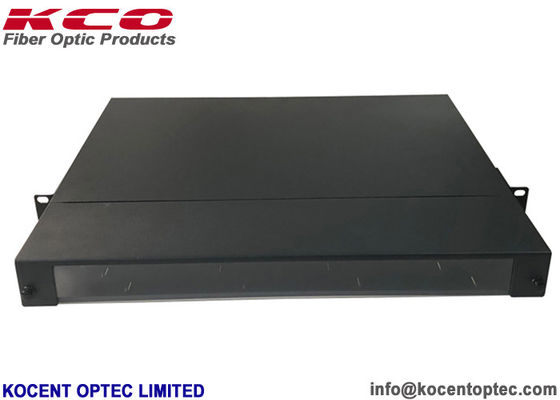

96 cores 1U Rack-mount MPO Patch Panel OM3 OM4 OM5 MTP Optical Patch Panel for High Density Fiber

  • 96 cores 1U Rack-mount MPO Patch Panel OM3 OM4 OM5 MTP Optical Patch Panel for High Density Fiber
  • 96 cores 1U Rack-mount MPO Patch Panel OM3 OM4 OM5 MTP Optical Patch Panel for High Density Fiber
  • 96 cores 1U Rack-mount MPO Patch Panel OM3 OM4 OM5 MTP Optical Patch Panel for High Density Fiber
  • 96 cores 1U Rack-mount MPO Patch Panel OM3 OM4 OM5 MTP Optical Patch Panel for High Density Fiber
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-1U-96-LC OM3
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 96cores
Color Black, Beige Length 0.5m, 1.0m, 1.5m, Customized
Highlight

SM MTP Optical Patch Panel

,

OM5 MTP Optical Patch Panel

,

96cores Rack Mountable Patch Panel
Leave a Message
Product Description
Product Overview

The SM / MM / OM3 / OM4 / OM5 High-Density 96-Core 1U MPO Optical Patch Panel (MTP Rack-Mount Terminal Box) is a steel-tape, rack-mountable solution engineered for high-density fiber optic deployments. It delivers an economical and cost-effective approach to structured cabling, supporting up to 96 front LC connections in a single rack unit.

The MPO Series features a removable top case, a sliding and locking front tray, adjustable mounting brackets, and a hinged front panel. Each panel ships with a complete set of mounting hardware and is compatible with pre-terminated fiber cassettes or fiber adapter panels for instant deployment.

Quick Information
  • P/N: KCO-RM-MPO-1U-96-LC-xx
  • Name: 19'' MPO MTP Patch Panel
  • Capacity: 96 core
  • Maximum module number: 4 pc
  • Optical port: LC duplex, MPO
  • Cable length: 0.3 m
  • Patch panel size: 480 × 245 × 1U (mm)
  • Color: Black (OEM other colors available)
Key Features
  • Insertion loss type available in Standard, Elite / Low Loss
  • Fiber count available in 6, 8, 12, and 24
  • MTP/MPO connector type available in Male and Female
  • Fiber type available in SM (G652D, G657A1, G657A2) and MM (OM3, OM4)
  • Fanout length available in 0.5 m, 1 m, etc.
  • Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
  • Single-fiber connector type available in LC, SC with APC or UPC polishing type
  • Factory terminated and tested with guaranteed quality
  • High density design to dramatically save space
Product Photos

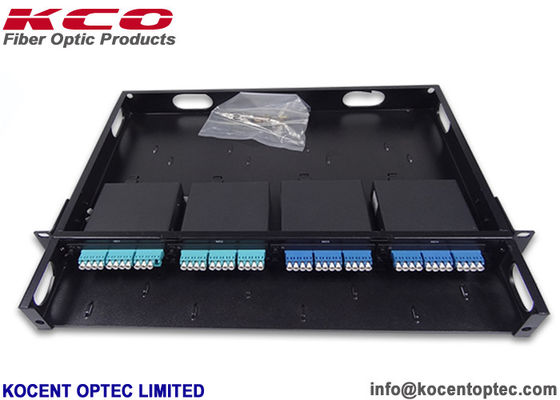

96-core 1U MPO MTP optical patch panel front view with LC duplex adapters
Front view — 96-core 1U MPO/MTP patch panel

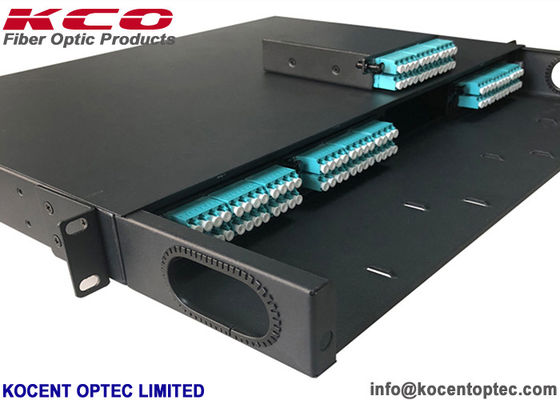

96-core 1U MPO MTP optical patch panel with sliding tray and hinged front panel
Sliding tray and hinged front panel detail
Product Dimensions
Technical dimension drawing of the 1U 96-core MPO MTP rack-mount patch panel showing 480mm width and 245mm depth
Dimensional drawing — 480 × 245 × 1U (mm)
MTP/MPO Connector Specifications
Type Single Mode (APC Polish) Single Mode (UPC Polish) Multi Mode (PC Polish)
Fiber Count 8, 12, 24 etc. 8, 12, 24 etc. 8, 12, 24 etc.
Fiber Type G652D, G657A1 etc. G652D, G657A1 etc. OM1, OM2, OM3 etc.
Max. Insertion Loss Elite Low Loss ≤0.35 dB
Standard ≤0.75 dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.75 dB		 Elite Low Loss ≤0.35 dB
Standard ≤0.60 dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310 nm 1310 nm 1310 nm
Insert-pull Test 1000 times < 0.5 dB
Interchange < 0.5 dB
Anti-tensile Force 15 kgf
Panel Specifications
Fiber Capacity of Panel 12–144 core (12, 24, 48 port usually)
Panel Connector SC, LC, ST, FC
Type Fixed
Dimension 19'' 1U / 2U / 3U / 4U ...
Material Cold Rolled Steel or Aluminum
Storage Temperature -45℃ ~ +65℃
Thickness 1.0 mm / 1.2 mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO Type SM: G652D, G657A1, G657A2  |  MM: OM1, OM2, OM3, OM4, OM5
Cover LSZH
Length 0.3 m, 0.5 m
Related Product
Related MPO MTP fiber optic patch panel and cassette solution
Related MPO/MTP solution product
Kocent Optec Limited Product Catalog
  • Fiber Optic Cable: Outdoor cable, indoor cable, FTTH drop cable
  • Fiber Optic Patch Cord: Indoor patch cord, FTTH drop patch cord, field fiber optic patch cord, outdoor patch cord
  • MPO/MTP Solution Products: MPO/MTP patch cord, MPO/MTP attenuator, MPO/MTP loop back, MPO/MTP adapter, MPO/MTP patch panel
  • Fiber Optic Splitter: PLC splitter, FTB coupler, multimode splitter
  • Fiber Optic Terminal Box: Distribution frame, cross cabinet, ODF unit, patch panel, indoor terminal box, outdoor terminal box, FDB, FAT, CTO
  • Fiber Optic Splice Closure: Inline type, dome type, aerial type, wall mount type
  • Fiber Optic Fast Connector: SC, FC, LC
OEM / ODM Service

If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — our OEM and ODM service is always ready to accommodate your requirements. Please contact our sales team to get the best support.

Packing & Shipping
Packing
  • According to standard export packing
  • Carton box, wooden box, wooden pallet
Shipping
  • International express such as UPS, TNT, DHL, etc.
  • International air: CA, AA, EA, etc.
  • By sea
  • Standard export sea port: Shenzhen, Hongkong, Ningbo
  • Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
