144cores LC/APC 1U MPO MTP Patch Panel Rack Mount Optica Fibra MPO MTP Patch Panel
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO |
| Certification | RoHS, ISO9001 |
| Model Number | MPO-1U-144-LC/UPC |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 2~7 days after get payment |
| Payment Terms | Western Union,T/T,L/C |
| Supply Ability | 50,000pcs/month |
Product Details
| Connector 1 | MPO, MTP | Connector 2 | LC/UPC, LC/APC Or Customized |
|---|---|---|---|
| Size | 480x245x1U | Capacity | 144cores |
| Color | Black, Beige | Length | 0.5m, 1.0m, 1.5m, Customized |
| Cable | 0.3m | Fiber | Single Mode, Multimode |
| IL | 0.35dB | RL | 50dB |
| Highlight | 144cores Rack Mount Patch Panel,LC/APC Rack Mount Patch Panel,1U Optica Fibra Patch Panel |
||
Product Description
Product Overview
The 1U Ultra High Density 144 Port Optica Fibra MPO/MTP Rack Mount Patch Panel is engineered to fit standard 19-inch fiber optic distribution frames. It supports up to 12 pieces of 12-core MPO-LC cassette boxes, delivering exceptional port density in a compact 1U form factor.
- Designed for standard 19-inch fiber optic distribution frames.
- Accommodates up to 12 pcs of 12-core MPO-LC cassette boxes.
- Drawer-type design for easier installation and maintenance.
- 3-layer construction for high density and space savings.
- Available in Single Mode, Multimode OM3, OM4, and OM5.
- Factory pre-installed for rapid deployment.
- 100% tested before shipping.
- Available in Type A, Type B, and Type C polarity.
- Default with Low Loss Standard (Elite Insertion Loss: less than 0.35 dB).
Key Features
- 19-inch standard size for easy installation.
- Lightweight yet strong construction with good anti-shock and dustproof performance.
- Well-organized cable management for easy fiber identification.
- Roomy interior ensures proper fiber bend radius.
- Adapter fence can be installed or removed as needed.
- Drawer with guide rail for smooth operation.
MPO/MTP Patch Panel Solution for Data Center
Quick Information
P/N: KCO-RM-MPO-1U-144-LC-xx
Name: 19'' MPO MTP Patch Panel
Capacity: 144 core
Maximum Module Number: 12 pc
Optical Port: LC duplex, MPO
Cable Length: 0.3 m
Patch Panel Size: 480 × 245 × 1U (mm)
Color: Black (OEM other color available)
Operating Conditions
| Operating Temperature | -20℃ to +60℃ |
|---|---|
| Storage Temperature | -40℃ to +70℃ |
| Humidity | 90% at 30℃ |
| Air Pressure | 70 kPa – 106 kPa |

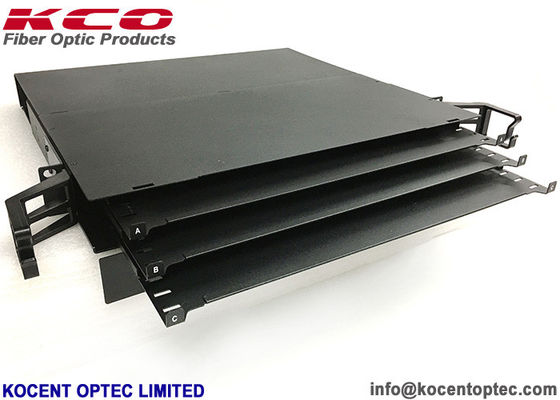

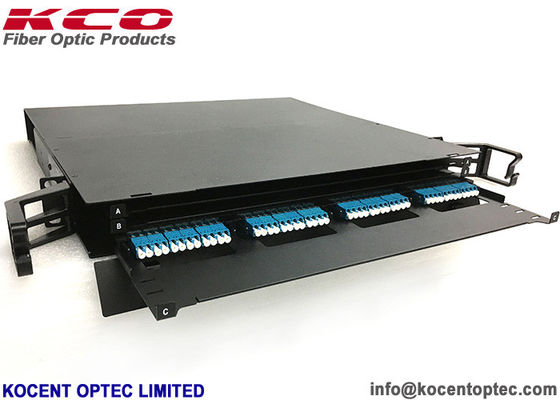

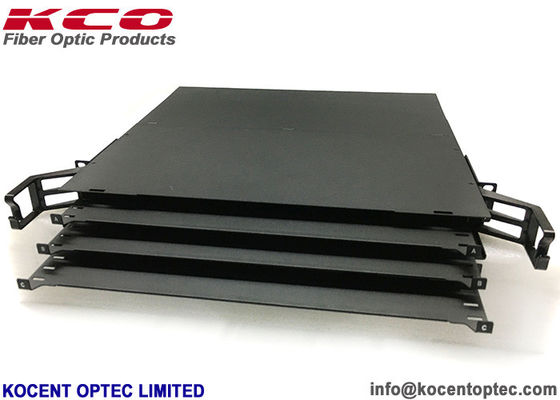

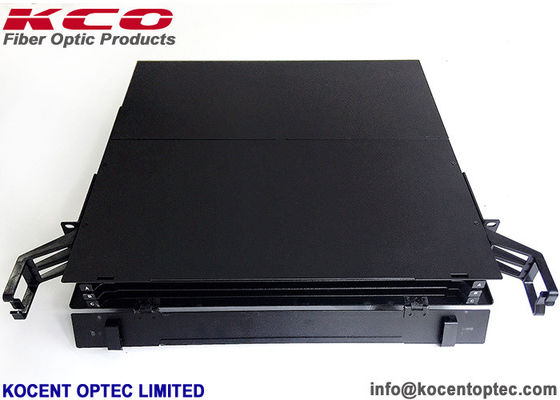

Product Photos
MTP/MPO Connector Specifications
| Type | Single Mode (APC Polish) | Single Mode (UPC Polish) | Multi Mode (PC Polish) |
|---|---|---|---|
| Fiber Count | 8, 12, 24 etc. | 8, 12, 24 etc. | 8, 12, 24 etc. |
| Fiber Type | G652D, G657A1 etc. | G652D, G657A1 etc. | OM1, OM2, OM3 etc. |
| Max. Insertion Loss | Elite Low Loss ≤0.35 dB / Standard ≤0.75 dB | Elite Low Loss ≤0.35 dB / Standard ≤0.75 dB | Elite Low Loss ≤0.35 dB / Standard ≤0.60 dB |
| Return Loss | ≥60 dB | ≥60 dB | NA |
| Durability | ≥500 times | ≥500 times | ≥500 times |
| Operating Temperature | -40℃ to +80℃ | -40℃ to +80℃ | -40℃ to +80℃ |
| Test Wavelength | 1310 nm | 1310 nm | 1310 nm |
| Insert-Pull Test | 1000 times < 0.5 dB | ||
| Interchange | < 0.5 dB | ||
| Anti-Tensile Force | 15 kgf | ||
Panel Descriptions
| Fiber Capacity of Panel | 12–144 core (12, 24, 48 port usually) |
|---|---|
| Panel Connector | SC, LC, ST, FC |
| Type | Fixed |
| Dimension | 19'' 1U / 2U / 3U / 4U... |
| Material | Cold Rolled Steel or Aluminum |
| Storage Temperature | -45℃ to +65℃ |
| Thickness | 1.0 mm, 1.2 mm |
| Accessories | Cable ties, mounting ear screws, and spiral wrap tube |
| MPO Type | SM: G652D, G657A1, G657A2; MM: OM1, OM2, OM3, OM4, OM5 |
| Cover | LSZH |
| Length | 0.3 m, 0.5 m |
Related Products
OEM/ODM Service
If you want to display your own brand logo on the goods — such as on the cable, package bag, label, or anywhere else — our OEM and ODM service is always ready to accommodate. Please contact our sales team to get the best support.
Packing & Shipping
Packing
- According to standard export packing.
- Carton box, wooden box, wooden pallet.
Shipping
- International express such as UPS, TNT, DHL, etc.
- International air: CA, AA, EA, etc.
- By sea.
- Standard export sea port: Shenzhen, Hongkong, Ningbo.
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai.
