1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port

  • 1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port
  • 1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port
  • 1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port
Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number MPO-1U-144-LC/UPC
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union,T/T,L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC/UPC, LC/APC Or Customized
Size 480x245x1U Capacity 144cores
Color Black, Beige Length 0.5m, 1.0m, 1.5m, Customized
Cable 0.3m Fiber Single Mode, Multimode
IL 0.35dB RL 50dB
Highlight

144cores Optical Patch Panels

,

0.3m Cable Optical Patch Panels

,

LC/UPC Rack Mounted Patch Panels
Leave a Message
Product Description
1U Ultra High Density 144 Port Optica Fibra MPO MTP Rack Mount Patch Panel
Description:
  • MPO/MTP Rack Mount Patch Panel is design to fit with standard 19 inch of fiber optic distribution Frame.
  • This high capacity fiber optic distribution frame support fiber cable fast connection and distribution.
  • It load MTP/MPO and ribbon fiber cable inside, easy to use by connector plug.
  • It is an ideal equipment for supporting the fiber distribution in high-density capacity data center.
  • It has simple & fast installation, compact design, high precision, plug and play etc. advantages.
  • Can up load with 12 pcs of 12 cores MPO-LC cassette box.
  • Drawing type, easier to install and maintain.
  • 3 layers, high density, more save space.
  • Availabel in Single mode, Multimode OM3 OM4 and OM5.
  • Factory pre-install.
  • 100% testing before shipping.
  • Available in Type A, Type B and Type C.
  • Default with Low Loss Standard (Elite Insertion Loss: less than 0.35dB).
Features:
  • Drawer with guild rail, easy to install and maintain.
  • 19" standard size , easy install
  • Light weight, strong strength, good anti-shocking and dustproof
  • Well cable management, cable can be distinguished easily
  • Roomy space ensure fiber bent ratio
  • Adapter fence can be installed or uninstalled
Technical Data:
Connector typeMini LC Duplex adapter
Capacity144 cores
MaterialGalvanized Steel Sheet or cold rolled steel
Performance IndexMax capacity reach to 144 cores
Available adapter port: Defaul use Mini LC Duplex (optional: ST, FC, SC, MU, MTRJ, E2000, ...)
With various panels to fit different adaptor interface
MPO/MTP Patch Panel Solution for Data Center:

1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port 0

Quick informations:
P/N:
KCO-RM-MPO-1U-144-LC-xx
Name:
19'' MPO MTP Patch Panel
Capacity:
144 core
Maximum module number:
12pc
Optical port:
LC duplex, MPO
Cable length:
0.3m
Patch panel size:
480x245x1U(mm)
Color:
black (OEM other color)
Operation Conditions
Operating Temperature-20℃ -- +60℃
Storage Temperature-40℃ -- +70℃
Humidity90% at 30℃
Air Pressure70kPa – 106kPa

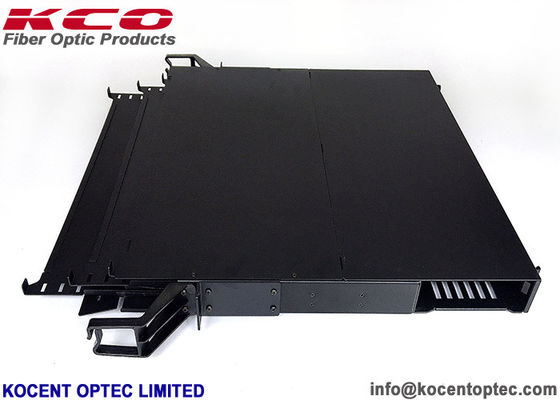

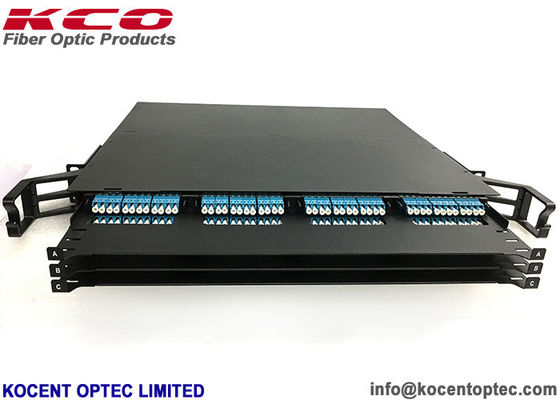

Product photo:

1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port 1

1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port 2

MTP/MPO Connector Specifications:
TypeSingle ModeSingle ModeMulti Mode
(APC Polish)(UPC Polish)(PC Polish)
Fiber Count8,12,24 etc.8,12,24 etc.8,12,24 etc.
Fiber TypeG652D,G657A1 etc.G652D,G657A1 etc.OM1,OM2,OM3 etc.
Max. Insertion LossEliteStandardEliteStandardEliteStandard
Low LossLow LossLow Loss
≤0.35 dB≤0.75dB≤0.35 dB≤0.75dB≤0.35 dB≤0.60dB
Return Loss≥60 dB≥60 dBNA
Durability≥500 times≥500 times≥500 times
Operating Temperature-40℃~+80℃-40℃~+80℃-40℃~+80℃
Test Wavelength1310nm1310nm1310nm
Insert-pull test1000 times＜0.5 dB
Interchange＜0.5 dB
Anti-tensile force15kgf
Descriptions:
Fiber Capacity of panel12-144 core(12 24 48 port usually)
Panel ConnectorSC LC ST FC
TypeFixed
Dimension19'' 1U/2U/3U/4U...
MaterialCold Rolled Steel or Aluminum
Storage Temperature-45~+65℃
Thickness1.0 1.2 mm
AccessoriesCable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2

MM: OM1, OM2, OM3, OM4, OM5

CoverLSZH
Length0.3m, 0.5m
Relation Product:

1U 144cores Rack Mounted MTP MPO Optical Patch Panels 144fibers LC Duplex Port 3

OEM/ODM Service:

- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:

- According to Stardard Export Packing.

- Carton box, wooden box, wooden pallet.

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

- Standard export sea port: Shenzhen, Hongkong, Ningbo

- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
