48cores Horizontal Inline 1*8 PLC Fiber Optical Splice Enclosure KCO-H0848-SZ

Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-H0848-SZ
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Type Inline Type Cable Ports 8 Ports
Cable Diameter 8.0~18.0mm Min. Capacity 4 Cores
Max Capacity 48 Cores Material PPR, ABS, PC, PP
P/N KCO-H0848-SZ Color Black
High Light

48cores Fiber Optical Splice Enclosure


PPR Fiber Optical Splice Enclosure


Horizontal Inline Splice Closure

Leave a Message
Product Description


48 Cores Horizontal Inline Type 1:8 PLC Splitter Fiber Optical Splice Enclosure Box KCO-H0848-SZ​



- KCO-H0848-SZ fiber optic splice clusre box is mainly used for optical fiber connection and protection. It is design with 3 layers, easier to operating.

- Its design with adapter plate and spiltter box, it can install 1pc of 1*16 PLC Splitter or 2pcs of 1*8 PLC Splitter with SC port.

- It is suitable for the connection of overhead, pipe and buried straight and branch.

- Water-proof design with IP65 Protection level
- Integrated with splice cassette and cable management system
- Manage fibers in a reasonable fiber radius condition
- Easy to maintain and extend the capacity
- Fiber bend radius control more than 40mm

- It can be opened again and reused after installation.


- CATV networks

- Local area networks

- Telecommunication networks
- Data communications networks

- Widely used in FTTH access network

- For outdoor using: Aerial, direct buried, underground, pipeline, hand-holes, duct mountig, wall mounting.



- Excellent mechanical properties, long lifetime.
- Excellent sealing performance, be suiable to use for outdoor.
- The product has multiple reuse and capacity expansion functions.
- It has the capability to protect the optical fiber connector from environmental impact.
- Good corrosion resistance, compressive resistance and tensile strength.


Product pictures:

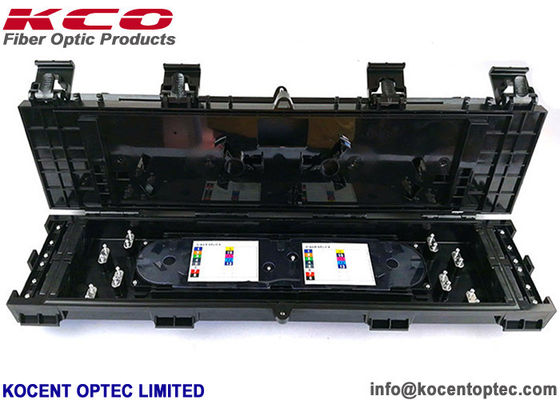

48cores Horizontal Inline 1*8 PLC Fiber Optical Splice Enclosure KCO-H0848-SZ 0

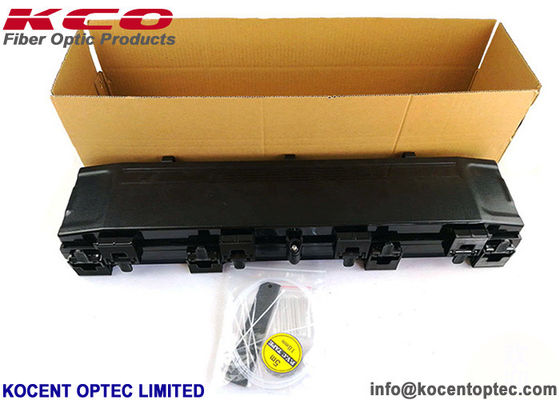

48cores Horizontal Inline 1*8 PLC Fiber Optical Splice Enclosure KCO-H0848-SZ 1



Product Name
Fiber optic splice closure
Inline type (horizontal type) for earial application
Mechanical seal
Cable out of the tube configuration
Up to four out of the tube fiber optic cable
  P/N   KCO-H0848-SZ
  Size(mm)   600*190*100
  Gross weight (kg)   2.75
  Port no.    8
  Cable dia. (mm)   8~18
  Tray no. (pc)   1
  Min. Capacity (fo)   4
  Max. Capacity (fo)   48


Packing way:

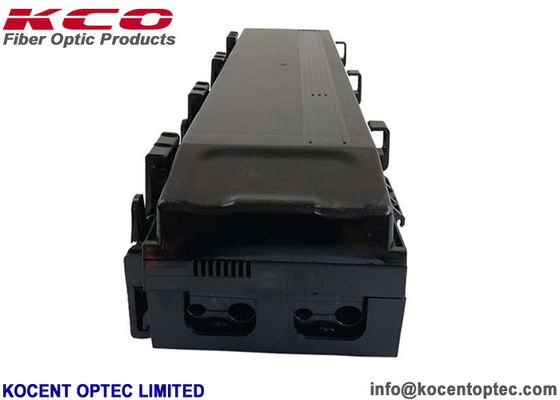

48cores Horizontal Inline 1*8 PLC Fiber Optical Splice Enclosure KCO-H0848-SZ 2


Main performance:
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;
- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
