ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box

  • ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box
  • ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box
  • ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box
  • ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box
  • ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-V6-48-ZG
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Dome Type, Vertical Type Cable Ports 1 In 5 Out
Cable Diameter 6.0~18.0mm Min. Capacity 24 Cores
Max Capacity 48 Cores Material ABS, PPR, PC
P/N KCO-V6-48-ZG Color Black
High Light

FTTO Outdoor Optical Splice Enclosure

,

96f Outdoor Optical Splice Enclosure

,

CATV Fiber Optic Junction Box
Leave a Message
Product Description



ABS PPR PC 1in 5out Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box



Introduction:

- Fiber optic closure, also known as fiber optic splicing closures, is a device used to provide space and protection for fiber optic cables spliced together. The fiber optic closure connects and stores optical fibers safely either in the outside plant or indoor buildings.

- Fiber Splice Closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.

- KCO-V15-96-ZG fiber optic splice closure is dome type fiber optic splice closure box, it is water-proof, can use for outdoor application.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
- The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance. The casing can be opened repeatedly without air leakage. No special tools are required.
- The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance



Feature:

- The product is made of high-quality and impact resistant plastics, and has a standard user interface;
- Anti-UV, impact resistant and waterproof;
- Can be mounted on the wall or pole;
- Unique and reversible middle plate can be flipped≥180 oC, that provides more distinctive area for fiber splicing and
splitting, and the line crossing is reduced.
- Cable can access the box with no need of breaking.


Application

- The scope of application is: aerial, underground, wall-mounting, wall-mounting in duct and handhole.

- FTTX (FTTO, FTTH, FTTN, FTTC)
- Local Area Networks (LAN)
- Test Equipment
- CATV
- Analog/Digital Passive Optical Networks (PON)



Quick detail:
- Name: Mini Size Heat Shrink Port Fiber Optic Splice Closure
- Type: Dome type, or vertical type​
- Part number: KCO-V6-48-ZG
- Size: 330*100mm
- Weight: 0.9kg
- Cable entry port: 1 ports
- Cable out port: 5 ports

- Cable Diameter: 2.0-18.0mm
- Capacity of fibers: 24 cores

- Max. Capacity: 48 cores
- Splice tray number: max. 2 trays
- Material: PC/ ABS / PP Plastic
- Water-proof grade: IP65

- Application: Outdoor
- Working temperature: -30℃ to 60℃
- Install way: pole mount, aerial, underground, pipe line, ...
- Life time: >25 years





Product pictures:

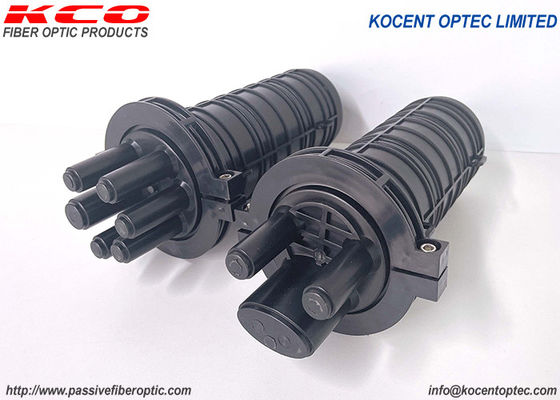

ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box 0

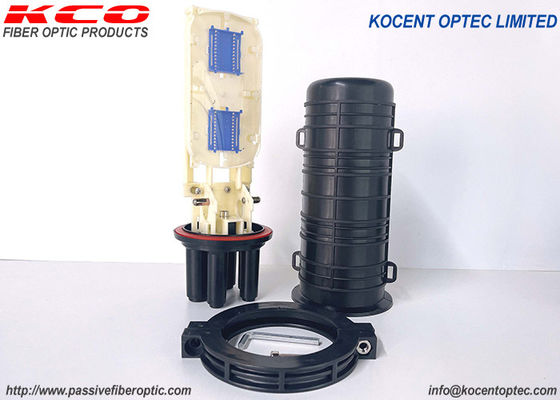

ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box 1




Main performance
- Stretch: the box body inflated after sealing 60KPa ± 5Kpa, can withstand 1000N axial tension, to maintain 1 min, no change in air pressure;
- Flattening: The box body is sealed and inflated at 60KPa ± 5Kpa, and it can bear the horizontal uniform pressure of 2000N / 10cm. The pipe can withstand 600N / 10cm without change of air pressure.
- Hit: the box after sealing inflatable 60KPa ± 5Kpa, in the box above the 1.6 drop 1 kg steel ball, the impact of three times, the box does not crack, pressure no change;

- Resistance to voltage intensity: water depth 1.5m, soak 24hr, 15KV DC 1min without breakdown, no arcing phenomenon;
- High temperature test: the box after sealing inflated 60kPa ± 5kPa, at + 60 ℃ for 2hr, the box without deformation, no leakage;
- Low-temperature test: box sealed inflatable 60kPa ± 5kPa. The temperature at -40 ℃ for 2hr, the box without deformation, no leakage;
- Temperature cycle test: the box after sealing inflatable 60kPa ± 5kPa. -40 ℃ each point constant temperature 2hr, three cycles, the pressure drop amplitude ≤ 5kPa.
- Bending: the box after sealing inflatable 60KPa ± 5Kpa, tension load 150N, bending angle ± 45°, 10 cycles, no change in air pressure;
- Reverse: the box after sealing inflatable 60KPa ± 5KPa, torque 50N.m, torsion angle +90°, 10 cycles, no change in air pressure;
- Sealing performance: gas pressure 100kPa ± 5kPa, water bath soak 1 5min, no bubbles to escape, no change after 24hr pressure;
- Insulation resistance: water depth 1.5m, soak 24hr, the insulation resistance ≥ 2 × 104MΩ;



Main Components:

No Name of components Quantity Usage
1 FOSC cover 1 piece protecting fibre cable slices in whole
2 Fiber optic splice tray(FOST) Max.6trays Fixing heat shrinkable
Bunchy protective sleeve ans holding fibers
Max.4trays
Ribbon
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1 set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing value 1 set After inject air,it is used for pressure testing and sealing testing
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection





Related products:

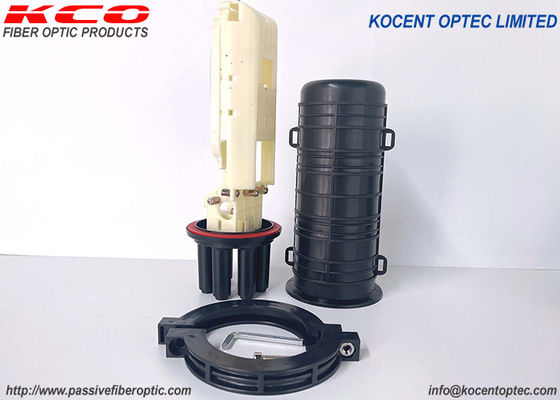

ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.


ABS PPR PC 1in 5out 6 Ports Dome Outdoor Waterproof Fiber Optical Splice Enclosure Box 3


Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.


Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
