1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box

  • 1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box
  • 1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box
  • 1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box
  • 1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box
  • 1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification iSO9001, RoHS
Model Number KCO-ML0416
Minimum Order Quantity Negotiation
Price Negotiable
Packaging Details Carton box, wooden pallet
Delivery Time 5~14 working days
Payment Terms T/T, L/C
Supply Ability 5,000pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Inline Type Input Cable Port 4 Ports
Cable Diameter 8.0~18.0mm PLC Splitter 1*2, 1*4, 1*8, 1*16
Material PP P/N KCO-ML0416
Color Black Output Cable Port 16
Waterproof IP68
High Light

SC APC Optical Splice Enclosure

,

1x16 PLC Optical Splice Enclosure

,

Inline Pole Mount Splice Closure
Leave a Message
Product Description



1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box



Description:

- KCO-ML0416 fiber optic splice clusre box is mainly used for optical fiber connection and protection, it is specially designed to protect joints of optic cable.

- It is suitable for the connection of overhead, aerial or wall mount.

- The box body and base are sealed with hoops and rubber.

- The splice closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

- Excessive fibers can be stored in storage baskets behind the splice trays.
- The optical fibers are fusion on sides of the tray.
- One tray can splice 24 fibers;
- Available for 2 trays to splice total 48fibers.
- Good quality and long service life.

- The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

- The splice trays is inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm.

- Each optical cable and fiber can be operated individually.

- It can be opened again and reused after installation.



Technical inform:

- Working Temperature: -40~+70°C
- Atmospheric Pressure: 70~150Kpa
- Axial Tension: ≥2000N/1min
- Stretching Resistance: 2500N/10c㎡(1min)
- Insulation resistance: ≥2*104MΩ
- Voltage Strength: 15KV/1min, no arcover or breakdown
- Pressure in the water: 50m/72hours
- Splice tray with optical taking-in radius: 30mm.

- Low optical loss.



Applications:

- Telecom project

- FTTH, FTTA, FTTB, FTTO

- CATV networks

- Local area networks
- Telecommunication networks
- Data communications networks

- WAN, LAN

- PON, GPON



Features:

- High-strength engineering plastic shell

- Water proof grade: IP68

- Great aging resistant ability
- High mechanical performance

- Excellent sealing performance

- Does not require special tools, easy to install and open the duplicate.
- Endure harsh conditions such as vibration, impact, tensile cable distortion and strong temperature changes



Product pictures:

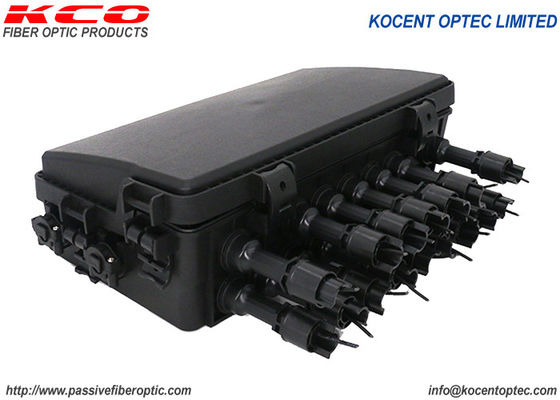

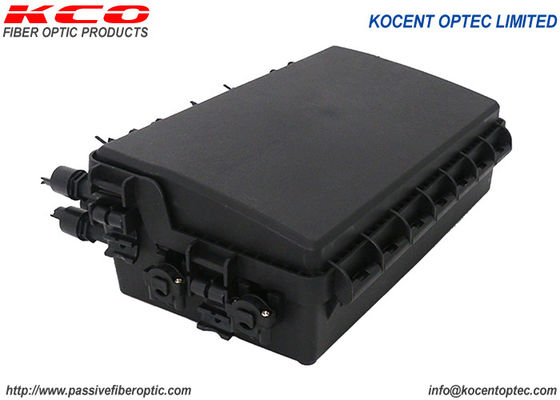

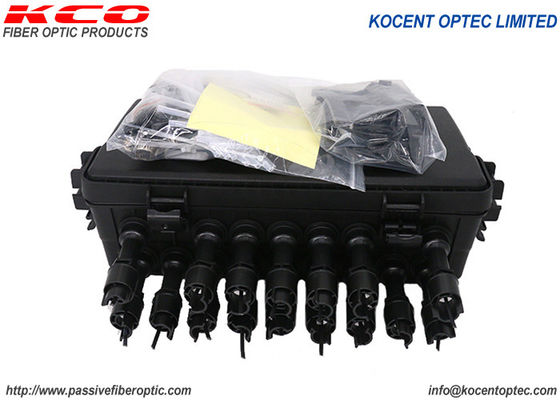

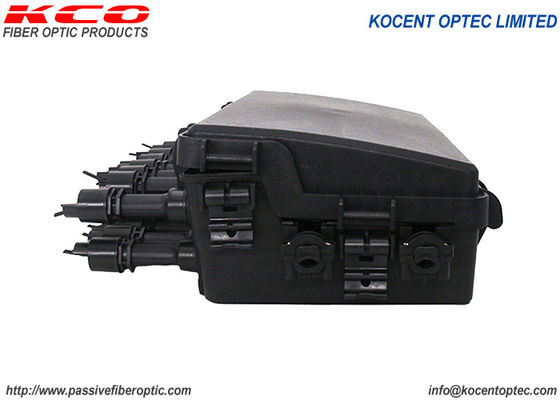

1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box 0

1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box 1



Specification:

Product Name
Fiber optic splice closure
Type
Inline type (horizontal type) for earial application
Cores
16cores
Seals
Mechanical seal
Material
PC
Cable out of the tube configuration
Up to four out of the tube fiber optic cable
  P/N   KCO-ML0416
  Size(mm)   359*277*120mm
  Gross weight (kg)   2.75
  Port no.    8
  Cable dia. (mm)   8~18
  Tray no. (pc)   1
  Min. Capacity (fo)   4
  Max. Capacity (fo)   48





Relation products:

1x16 PLC Splitter SC APC Aerial Pole-mount Optica Fibra Splice Enclosure NAP Box 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
