19 Inch 2U MPO Patch Panel 192 Core MTP Rack Mount ODF LC Duplex

Place of Origin Guangdong, China
Brand Name KCO
Certification RoHS, ISO9001
Model Number KCO-MPO-1922U
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden pallet
Delivery Time 2~7 days after get payment
Payment Terms Western Union, T/T, L/C
Supply Ability 50,000pcs/month
Product Details
Connector 1 MPO, MTP Connector 2 LC Duplex
Size 480x245x2U Capacity 192 Cores
Color Black Length 0.2m, 0.3m
Module Type Fix Type Module Core No. 12fo, 24fo
Logo Print Customized OEM Service Yes
High Light

2U MPO Patch Panel


192 Core MPO Patch Panel


MTP Rack Mount Patch Panel

Leave a Message
Product Description


192core 19inch 2U MPO Patch Panel MTP Rack Mount Terminal Box ODF



- The MPO MTP Patch panel is made with cold rolled sheet and frosted painting; cassette is made with plastic, and adapter plate is made with plastic

- The cassette is fixed on the panel with pressing valve.

- The MPO fiber optic patch panel, SC/FC/ST/LC, UPC, APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components.

- Typical MPO fiber optic patch panel is with 1U, 2U with 19inch standard size, inside the patch panel.

- It can be splice trays with 1XN MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel.

- The 1U MPO fiber patch panel can be with max 48 cores or 96 cores output optical strand, the output connectors can be SC/FC/ST/LC.

- The 2U MPO fiber patch panel can be with max 192 cores LC connecor and 96 core for SC, FC or ST Connector


- Made by strength steel tape.

- Roomy space ensure fiber bent ratio.

- Hyperdensity, 1U rack can install 96fiber, save more space.

- 19" standard size, Fit with 19'' Rack type Cabinet, easy to install.
- Provides a complete system solution for connectivity.
- Well cable management, cable can be distinguished easily.
- Light weight, strong strength, good anti-shocking and dustproof.
- Provide higher patch field density in fewer rack units saving valuable space.
- Assures flexibility and ease of network deployment and moves, adds, and changes.
Product photo:

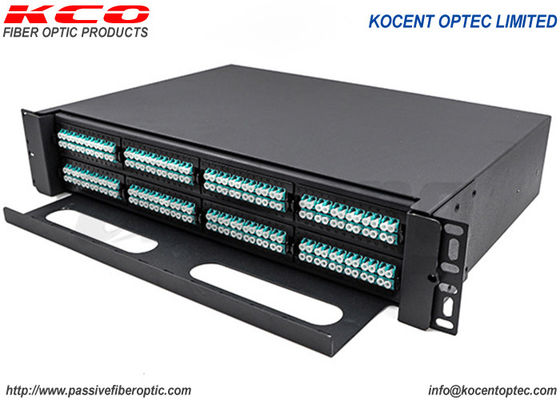

19 Inch 2U MPO Patch Panel 192 Core MTP Rack Mount ODF LC Duplex 0

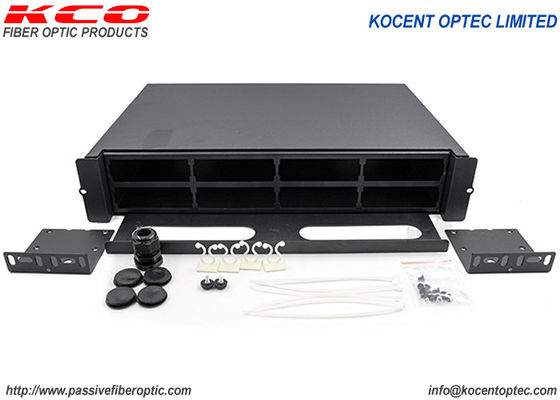

 19 Inch 2U MPO Patch Panel 192 Core MTP Rack Mount ODF LC Duplex 1

Product Size:

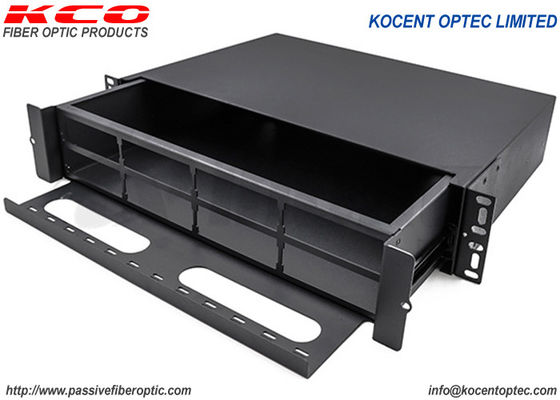

19 Inch 2U MPO Patch Panel 192 Core MTP Rack Mount ODF LC Duplex 2


MTP/MPO Connector Specifications:

Type Single Mode Single Mode Multi Mode
  (APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Max. Insertion Loss Elite Standard Elite Standard Elite Standard
  Low Loss   Low Loss   Low Loss
  ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃~+80℃ -40℃~+80℃ -40℃~+80℃
Test Wavelength 1310nm 1310nm 1310nm
Insert-pull test 1000 times<0.5 dB
Interchange <0.5 dB
Anti-tensile force 15kgf



Fiber Capacity of panel Max 96fo
Panel Connector LC duplex
Type Drawting
Dimension 19''1U
Material Cold Rolled Steel or Aluminum
Storage Temperature -45~+65℃
Thickness 0.6 0.8 1.0 1.2 1.5mm
Accessories Cable ties, mounting ear screws, and spiral wrap tube
MPO type

SM: G652D, G657A1, G657A2
MM: OM1, OM2, OM3, OM4, OM5

Cable Cover LSZH
Length 0.3m, 0.5m
