FTTA Fiber Optical Patch Cable 8fo 12fo Waterproof Tactical Armoured YZC Connector

Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-YZC-LC-4fo
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union, T/T, L/C
Product Details
Connector 1 YZA/ YZB/ YZC Connector 2 FC, LC, SC, ST, E2000, ...
Core 1 2 4 6 8 12 Cores Insertion Loss 0.2dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Application Tactical Army, Aviation
High Light

FTTA Fiber Optical Patch Cable

,

8fo Fiber Optical Patch Cable

,

Tactical Armoured Patch Cord

Leave a Message
Product Description



YZA YZB YZC 2fo 4fo 6fo 8fo 12fo Tachtical Waterproof Amoured FTTA Fiber Optical Patch Cable



Introduction:

- Kocent Optec Limited is one of lead outdoor field fiber optic patch cord manufacturer. Special is in all type of field fiber optic patch cord with waterproof connector, such as: YZA, YZB, YZC, Fullaxs, OptiTap, Huawei Mini SC, Military Connector, PDLC, ODVA, ...

-  With more than 10 years of production exprerience, we supply standard telecom and broadcast television grade of patch cord for customers. All of goods are tested before shipment. We provide OEM and ODM service. Contact with our sales team to get more informations about us and products.

- FTTA Water-proof Army Field Military Tactical Fiber Optic Patch Cord Connector is designed for military field fiber optic cable supporting, neutral bayonet locking structure can be realized head and seat, head and head, seat and seat fast any connection.

- With multi-core once connected and blind insertion;connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc.,

- Can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection.

- Product is available in 2 core, 4-core, 6-core, 8-core, 12-core.



Features:

- Low insertion loss;

- High return loss;

- 100% interferometer measurement;

- Dust proof, Water proof,

- High tension,

- UV resistant

- Suitable for outdoor application.



Application:

- 3G, 4G, 5G Base Station;
- Aerospace&Defence;
- Equipment diagnosis,
- FO sensor;
- FTTA/FFTP/BBU/RRU etc.

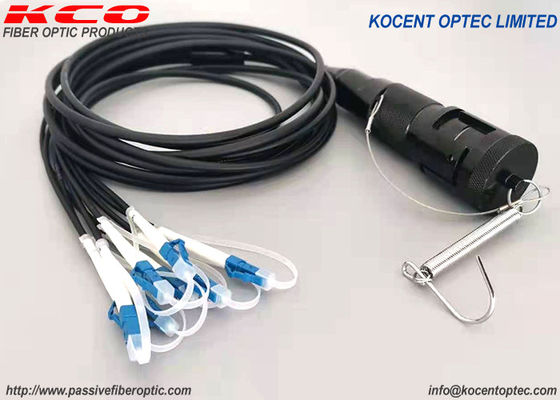

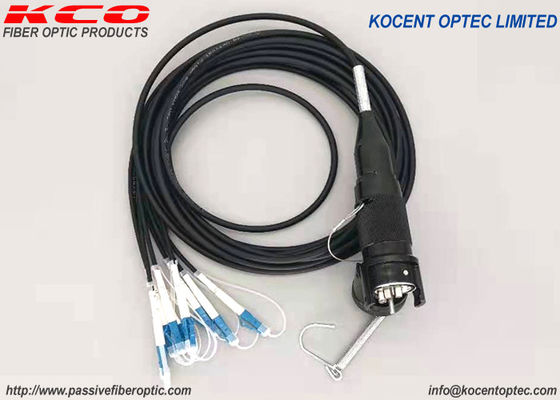

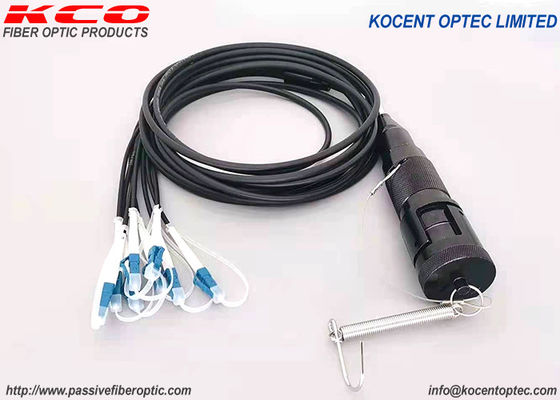

Products photo:



FTTA Fiber Optical Patch Cable 8fo 12fo Waterproof Tactical Armoured YZC Connector 0





Specifications:

Parameters Standard Fiber Cable Assemblies
Connector Side A: SC with armored
  Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC(duplex LC), NSN, Ericson, Huawei, ...
Fiber count

2 cores
4 cores
6 cores
8 cores
12 cores

Fiber Type

SM
G.652D
G.657A (A1, A2, B3, ...)



MM
OM1
OM2
OM3
OM4
OM5)

Jacket Materials

LSZH
TPU
PE

Cable diameter

4.8mm
5.0mm
5.5mm
6.0mm
6.5mm
7.0mm

Testing Wavelengths

SM:
1310±30nm
1550±30nm



MM:
850±30nm
1300±30nm

Insertion Loss(dB)
TIA/EIA-455-107
≤ 0.3dB(PC/UPC/APC)
≤ 0.3dB(UPC)
Return Loss(dB)
TIA/EIA-455-107
≥45dB (PC/UPC)
≥55dB (APC)
≥35dB (UPC)
Exchange ability ≤ 0.2dB
Cable Assemblies Pigtail/ Simplex/ Duplex/ Fan-out Patch cord/ Branch out patch cord
Operating Temperature -14℃~+ 85℃
Storage Temperature -40℃~+85℃



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

FTTA Fiber Optical Patch Cable 8fo 12fo Waterproof Tactical Armoured YZC Connector 1



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
