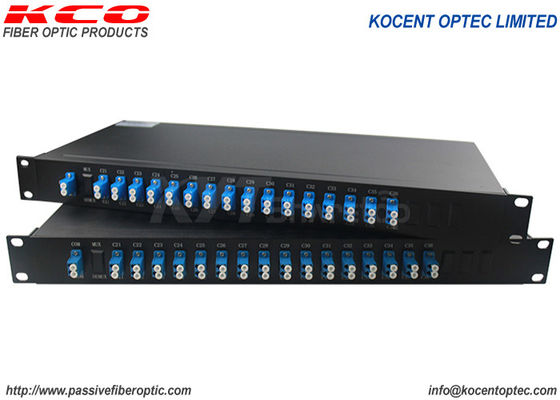

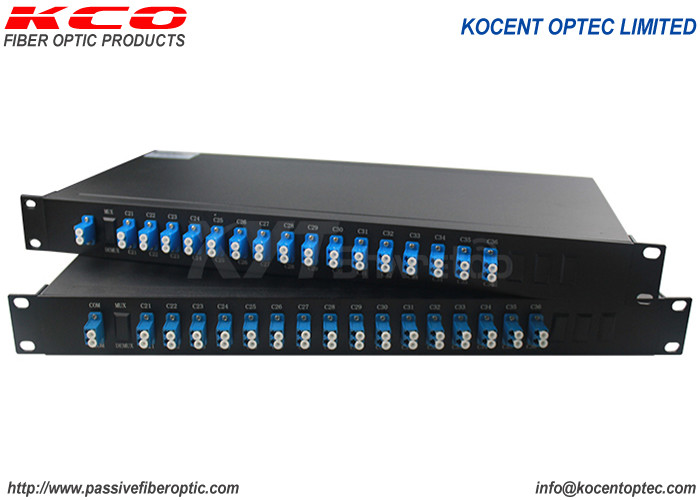

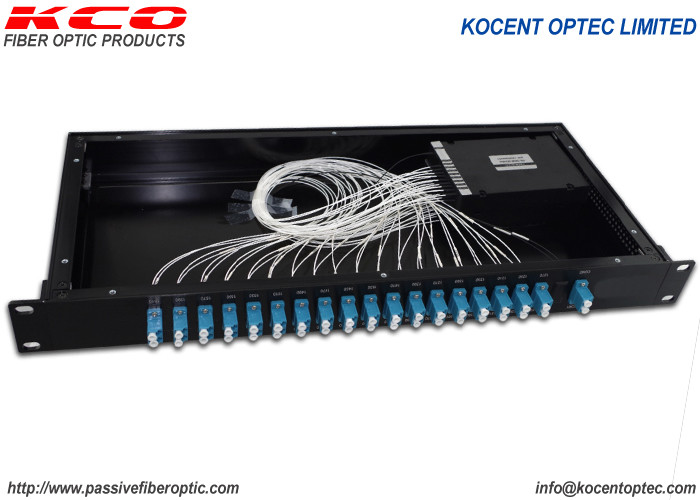

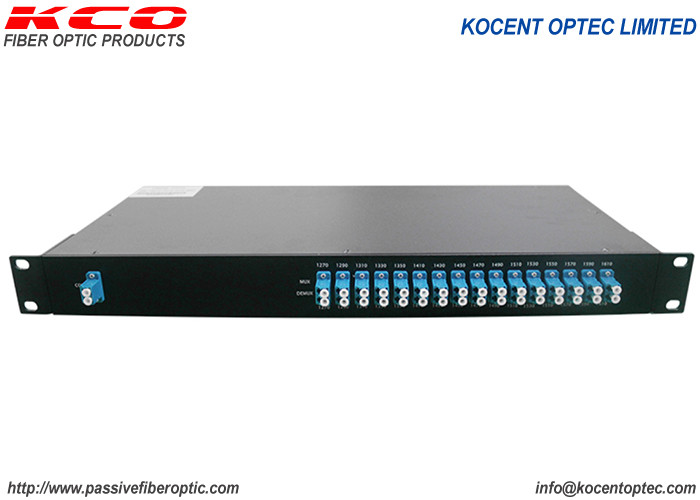

FWDM CCWDM Wavelength Division Multiplexer DWDM 16CH 18CH
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | ISO9001, RoHS |
| Model Number | KCO-CDWM-MD-PN-16CH-LCU |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | Carton box, wooden pallet |
| Delivery Time | 5~8 days |
| Payment Terms | Western Union, T/T, L/C |
| Supply Ability | 20,000 set/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Package | Steel Tape Patch Panel | Channel No. | 18CH |
|---|---|---|---|
| Fiber Type | Single Mode | Pigtail Length | 0.5m |
| Cable Dia. | 0.9mm | Terminal Connector | LC/UPC |
| IL | ≤3.0dB | RL | ≥45dB |
| Fiber No. | Dual Fiber (mux + Demux) | Size | 1U |
| High Light | CCWDM Wavelength Division Multiplexer,FWDM Wavelength Division Multiplexer,DWDM Mux Demux CWDM |
||
Product Description
Dual Fiber 16CH 18CH Chanel Mux Demux CWDM DWDM FWDM CCWDM Optical Fiber xWDM
Descriptions:
- CWDM Mux/Demux Module are based on thin film filter technology.
- CWDM technology provides the flexibility to increase capacity of existing fiber infrastructure by enabling multiple channels (wavelengths) over the same fiber cabling.
- Each channel carries data independently from each other, allowing network designers to transport different data rates and protocols for different customers or applications.
- CWDM maximum can multiplex 18 channel of wavelength.
- In contrast to Dense WDM (DWDM), CWDM uses only a "coarse" wavelength grid, so the underlying optical component technology is simpler. This makes CWDM systems very cost-effective, but also limits them in terms of total capacity.
- 19 inch CWDM patch panel can fit with standard 19 inch cabinet for data center.
- CWDM can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost low power consumption and small compact, it is widely used in metro aggregation and access layer to do transmission on a short time.
Features:
- Low PDL
- Low Insertion Loss
- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength
- From 1260nm to 1620nm
- Wide Operating Temperature
- From -40°C to 85°C
- High Reliability and Stability
Applications:
- WDM system
- Passive Fiber Optic Networks
- 3G, 4G, 5G Mobile Fronthaul
- Data Center
- Metro/Access networks
- Fiber optical amplifier
- CATV system
Product size:
Specifications:
| Parameter | 4 Channel | 8 Channel | 18 Channel | ||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||
| Channel Wavelength (nm) | 1270~1610 | ||||||
| Center wavelength Accuracy (nm) | ±0.5 | ||||||
| Channel Spacing (nm) | 20 | ||||||
| Channel Passband (@-0.5dB bandwidth (nm) | >13 | ||||||
| Insertion Loss (dB) | ≤1.6 | ≤2.5 | ≤3.0 | ||||
| Channel Uniformity (dB) | ≤0.6 | ≤1.0 | ≤1.5 | ||||
| Channel Ripple (dB) | 0.3 | ||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 |
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |
| Inertion Loss Temperature Sensitivity (dB/°C) | <0.005 | ||||||
| Wavelength Temperature Shifting (nm/°C) | <0.002 | ||||||
| Polarization Dependent Loss (dB) | <0.1 | ||||||
| Polarization Mode Dispersion | <0.1 | ||||||
| Directivity (dB) | >50 | ||||||
| Return Loss (dB) | >45 | ||||||
| Maximum Power Handling (mW) | 300 | ||||||
| Opterating Temperature (°C) | -5~+75 | ||||||
| Storage Temperature (°C) | -40~85 | ||||||
| Package dimension (mm) | 19'' 1U | ||||||
