19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks

  • 19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks
  • 19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks
  • 19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks
  • 19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Mux-PN-40CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Patch Panel Channel No. 40CH
Fiber Type Single Mode Pigtail Length 1.0m
Cable Dia. 2.0mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Single Fiber (Mux Or Demux) High 1U
Highlight

Patch Panel Passive Optical DWDM

,

40CH Passive Optical DWDM

,

Single Fiber DWDM Multiplexer
Leave a Message
Product Description

100G Mux 40CH DWDM 19'' Patch Panel Passive Fiber Optic Device For 3G 4G 5G Networks



Descriptions:

- Dense Wavelength Division Multiplexer (DWDM): DWDM is defined in terms of frequencies.

- DWDM’s tighter wavelength spacing fits more channels onto a single fiber, but costs more to implement and operate.

- DWDM is for systems with more than eight active wavelengths per fiber.

- DWDM dices spectrum finely, fitting 40-plus channels into the C-band frequency range.

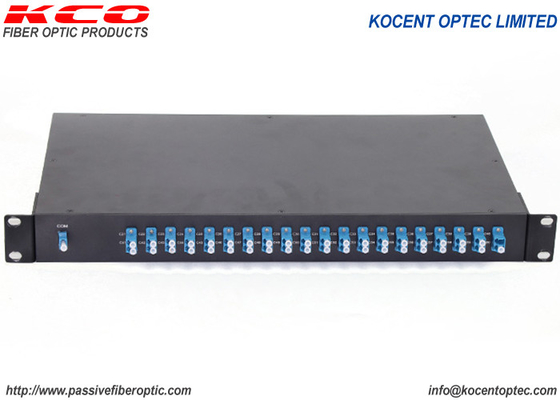

19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks 0



Product advantage:

- One of the best features of deploying DWDM over a flexible grid photonic line system is signal independence—the ability to support multiple generations of transponders independent of format, bit rate, symbol rate, etc.

- As such, many networks designed for 10 and 40 Gb/s are now carrying 200 Gb/s channels, and many that were deployed with flexible grid capability are now carrying 400 Gb/s and even 800 Gb/s signals!



Key Features
- Low Insertion loss
- Standard ITU channel
- High channel isolation
- Epoxy-free Optical path
- Stable performance


Applications
- DWDM System
- CATV networks

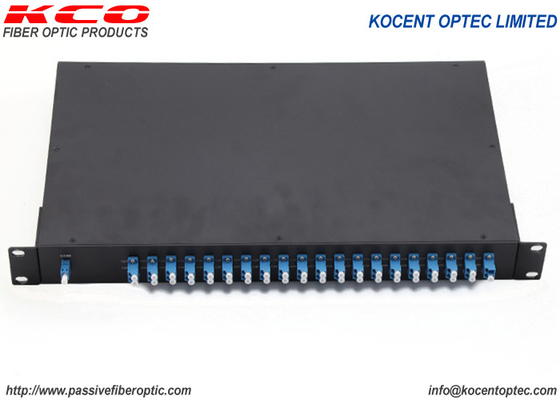

19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks 1


  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55


Product photo:

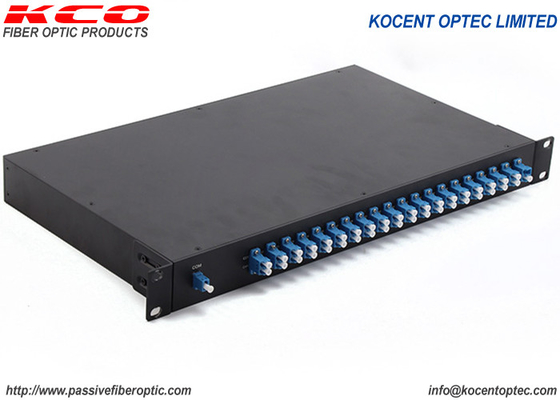

19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks 2

19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks 3





Relation products:

19'' Patch Panel Passive Optical DWDM 40CH Single Fiber For 3G 4G 5G Networks 4





OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
