5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G

  • 5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G
  • 5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G
  • 5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G
  • 5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Mux-Module-5CH-2.0-SCA
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package ABS Box Channel No. 4+1CH
Fiber Type Single Mode Pigtail Length 1.0m
Cable Dia. 2.0mm Terminal Connector SC/APC
IL ≤2.0dB RL ≥45dB
Fiber No. Single Fiber (Mux Or Demux) P/N KCO-DWDM-Mux-Module-5CH-2.0-SCA
High Light

Mux Demux Optical Fiber DWDM

,

5CH Optical Fiber DWDM

,

SC APC DWDM Module
Leave a Message
Product Description

200G Mux Demux Passive Fiber Optic 5CH DWDM Modular Box 2.0mm SC/APC Connector



Descriptions:

- Dense wavelength division multiplexing (DWDM) is an optical fiber multiplexing technology that is used to increase the bandwidth of existing fiber networks. It combines data signals from different sources over a single pair of optical fiber, while maintaining complete separation of the data streams.

- A separate light wavelength carries each signal, and the dense in DWDM refers to its ability to accommodate up to 80 different wavelengths. Each wavelength is about 0.8 nanometer wide and shares a single optical fiber.

- With DWDM, vendors have found various techniques for cramming 40, 88, or 96 wavelengths of fixed spacing into the C-band spectrum of a fiber.

- Traditional DWDM line systems use Wavelength Selective Switches (WSS) designed with fixed 50GHz or 100GHz filters.

- These fixed-grid line systems can accommodate channels from early generations of coherent transponders whose wavelengths require less than 50GHz or 100GHz of spectrum (depending on the filter used).

- Today, networks with high- bandwidth applications and sustained bandwidth growth that are quickly facing capacity exhaustion are turning to C+L-band solutions, which also leverage the L-band spectrum of a fiber to potentially double the fiber capacity.

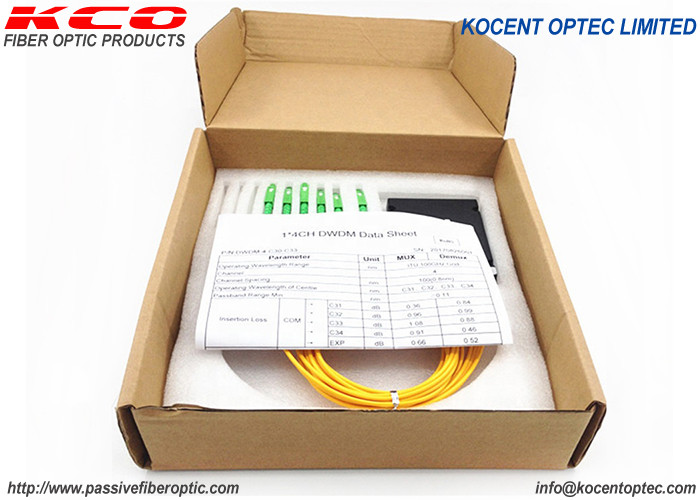

5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G 0



Product advantage:

- One of the best features of deploying DWDM over a flexible grid photonic line system is signal independence—the ability to support multiple generations of transponders independent of format, bit rate, symbol rate, etc.

- As such, many networks designed for 10 and 40 Gb/s are now carrying 200 Gb/s channels, and many that were deployed with flexible grid capability are now carrying 400 Gb/s and even 800 Gb/s signals!

- With DWDM, vendors have found various techniques for cramming 40, 88, or 96 wavelengths of fixed spacing into the C-band spectrum of a fiber



Key Features

- Low PDL

- Low Insertion Loss
- High Isolation
- Compact Design
- Good channel-to-channel uniformity
- Wide Operating Wavelength: ITU DWDM C&L Band
- Operating Temperature: 0℃ to 70℃; storage temperature: -40°C~ +80°C
- High Reliability and Stability


Applications
- DWDM System
- CATV networks

- PON Systems

- FTTx Systems

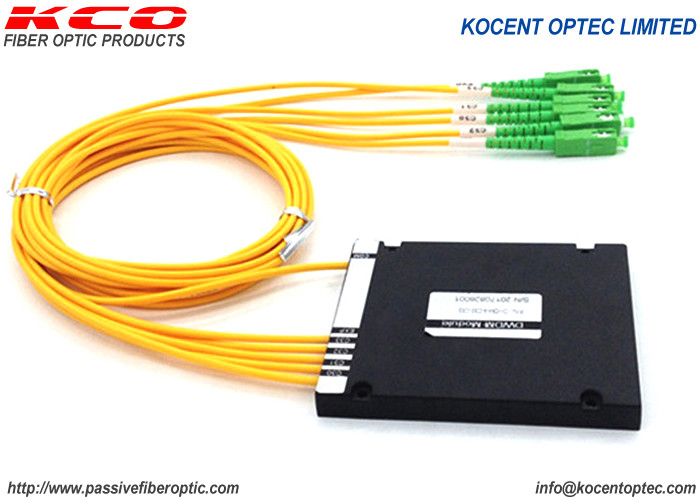

5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G 1


  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55











Relation products:

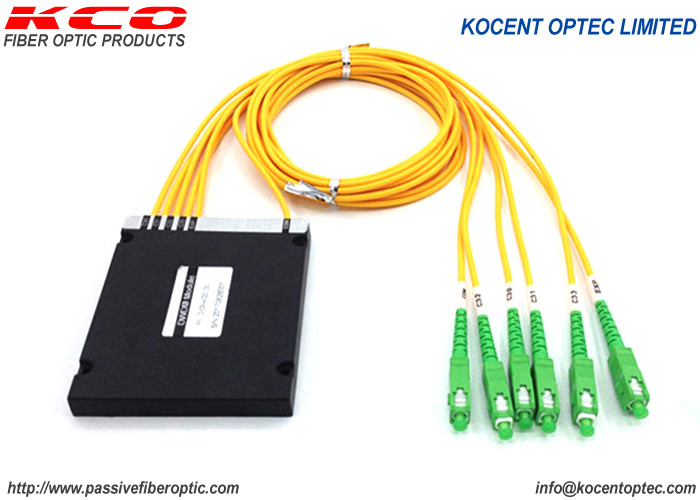

5CH Mux Demux Optical Fiber DWDM 2.0mm SC APC Connector 200G 2



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
