FC APC Wavelength Division Multiplexer 100G 50GHz Passive ABS Module

100G 50GHz 16CH Channel Passive Optical Fiber DWDM ABS Module Box FC/APC Connector

Descriptions:

- Dense Wavelenth Division Multiplexing (DWDM): DWDM is defined in terms of frequencies.

- DWDM’s tighter wavelength spacing fits more channels onto a single fiber, but costs more to implement and operate.

- DWDM is for systems with more than eight active wavelengths per fiber. DWDM dices spectrum finely, fitting 40-plus channels into the C-band frequency range.

- While the volume of data transmitted with DWDM is impressive, demand will continue to grow as we move toward IoT and 5G

- Simply put, data from various signals are separated and encoded on different wavelengths and put together (multiplexed) in a single optical fibre. At the receiving end, the wavelengths are separated out again and reconverted into the original digital signals.

- The tremendous expansion in data volume afforded with DWDM can be seen in comparison with other optical methods. A standard transceiver, often called a grey transceiver, is a single-channel device – each fibre has a single laser source. You can transmit 10 Gbps with grey optics. Coarse Wavelength Division Multiplexing (CWDM) has multiple channels, although far fewer than possible with DWDM. For example, with a 4-channel CWDM you can transmit 40 Gbps. DWDM can accommodate up to 100 channels.

- DWDM C-band spectrum supports up to 96 wavelengths, spaced at the standard ITU grid of 50GHz, 64 wavelengths, spaced at the standard ITU grid of 75GHz, and 48 wavelengths, spaced at the standard ITU grid of 100GHz. DWDM also supports flex-grid in which flexible bandwidth spectrum slices are allocated to the optical signals.

- The DWDM dense division multiplexing architecture enables the fitting of multiple wavelengths on a single fiber and supports long haul, metro and DCI applications with capacities of 10G/100G/200G/400G per wavelength.

Key Features

- Low Insertion Loss

- Wide Wavelength Range

- High Channel Isolation

- High stability and reliability

- Epoxy-free optical path

- Wide Operating Wavelength: ITU DWDM C&L Band

Applications
- DWDM System
- CATV networks

- PON Systems

- FTTx Systems

- Metro

- FTTx Systems

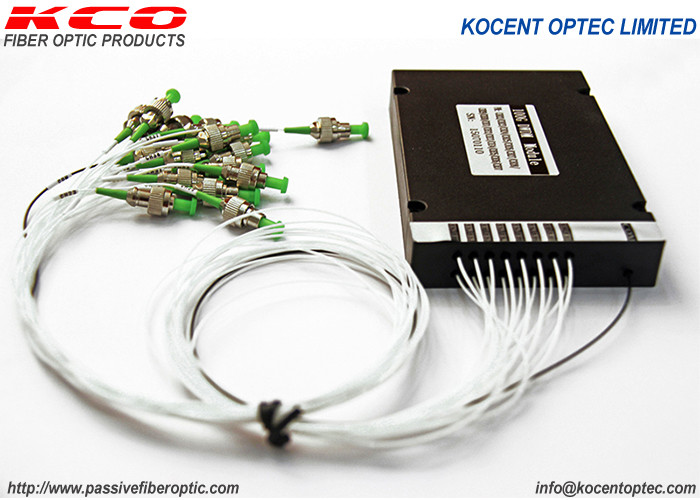

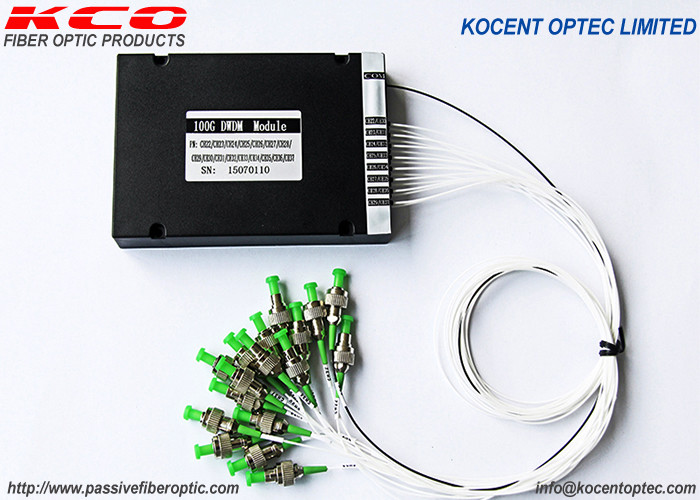

Product photo:

Relation products:

OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.

Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.

Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
