40CH Mux Demux DWDM Passive Optical Network PON Rackmount

  • 40CH Mux Demux DWDM Passive Optical Network PON Rackmount
  • 40CH Mux Demux DWDM Passive Optical Network PON Rackmount
  • 40CH Mux Demux DWDM Passive Optical Network PON Rackmount
Place of Origin Guangdong, China
Brand Name KCO, Kocent Optec Limited
Certification ISO9001, RoHS
Model Number KCO-DWDM-Mux-PN-40CH-LCU
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details Carton box, wooden pallet
Delivery Time 5~8 days
Payment Terms Western Union, T/T, L/C
Supply Ability 20,000 set/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Package Steel Tape Channel No. 40CH
Fiber Type Single Mode Pigtail Length 0.3m
Cable Dia. 0.9mm Terminal Connector LC/UPC
IL ≤2.0dB RL ≥45dB
Fiber No. Single Fiber (Mux Or Demux), Dual Fiber (Mux And Demux) P/N KCO-DWDM-Mux-PN-40CH-LCU
High Light

Passive Optical Mux Demux DWDM

,

40CH Mux Demux DWDM

,

PON Rackmount Dwdm Multiplexer
Leave a Message
Product Description

200G 75GHz 40CH Channel Mux Demux DWDM Passive Optical Network PON Rackmount Terminal Box



Descriptions:

- DWDM (Dense Wavelength Division Multiplexer) technology is an extension of optical networking.

- Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase the bandwidth of existing optical networks

- DWDM devices (multiplexer, or Mux for short) combine the output from several optical transmitters for transmission across a single optical fiber. At the receiving end, another DWDM device (demultiplexer, or Demux for short) separates the combined optical signals and passes each channel to an optical receiver.

- Passive DWDM network architecture begins with a transponder or transceiver accepting data inputs of various traffic types and protocols. This transponder performs the essential function of mapping input data onto an individual DWDM wavelength. Each individual wavelength is fed to an optical multiplexer (MUX) which filters and combines multiple wavelengths onto a single output port for transmission over the main/core/common DWDM fiber. At the receiving end wavelengths can then be separated to isolate the individual channels by using an optical demultiplexer (De-MUX), each channel is then routed to the appropriate client-side output through an additional wavelength matched transponder.

- Dense Wavelength Division Multiplexing (DWDM) is an optical multiplexing technology used to increase the bandwidth of existing optical networks. The working principle of DWDM is to transmit multiple signals of different wavelengths at the same time on the same optical fiber. This technology creates multiple virtual optical fibers, increasing bandwidth on existing fiber optic backbones.

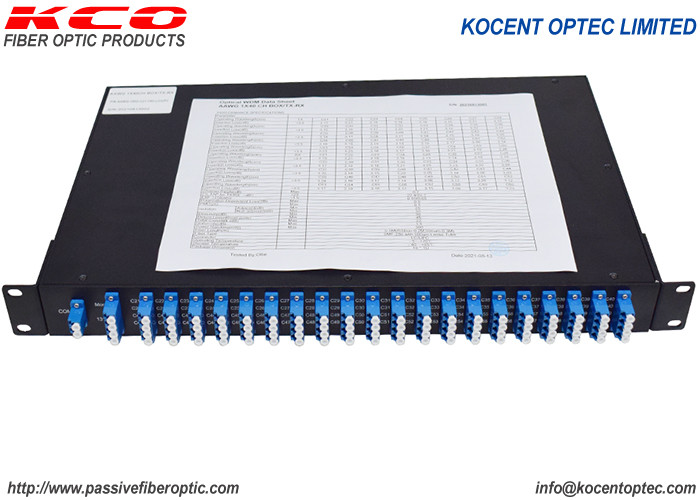

40CH Mux Demux DWDM Passive Optical Network PON Rackmount 0



Key Features

- 2-96 channels

- Uni- or bi-directional
- RF and data on a single strand of fiber
- Reduces the number of leased fibers required – by up to 96 times
- Can be part of ViaLite’s Long Distance Link
- High isolation between channels

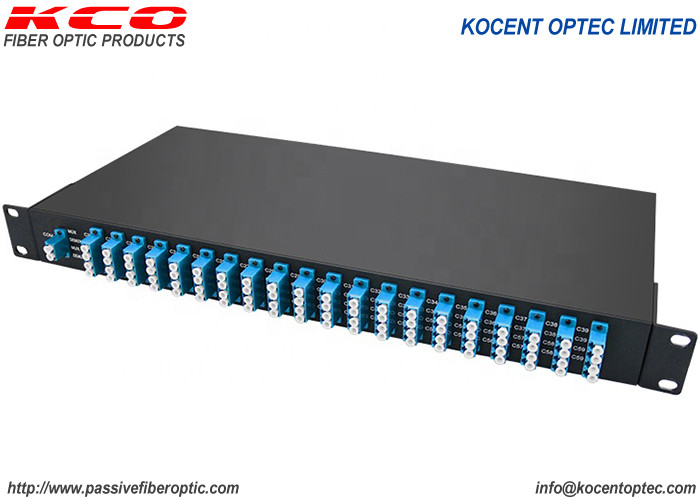

40CH Mux Demux DWDM Passive Optical Network PON Rackmount 1



Applications

- DWDM System

- PON Systems

- FTTx Systems

- CATV networks

- Metro

- Data Central

40CH Mux Demux DWDM Passive Optical Network PON Rackmount 2



Product photo:



40CH Mux Demux DWDM Passive Optical Network PON Rackmount 3


  DWDM C-band λc Wavelength Guide

  ITU Channel Code Wavelength ITU ChannelCode Wavelength
  21 1560.61 41 1544.53
  22 1559.79 42 1543.73
  23 1558.98 43 1542.94
  24 1558.17 44 1542.14
  25 1557.36 45 1541.35
  26 1556.55 46 1540.56
  27 1555.75 47 1539.77
  28 1554.94 48 1538.98
  29 1554.13 49 1538.19
  30 1553.33 50 1537.4
  31 1552.52 51 1536.61
  32 1551.72 52 1535.82
  33 1550.92 53 1535.04
  34 1550.12 54 1534.25
  35 1549.32 55 1533.47
  36 1548.51 56 1532.68
  37 1547.72 57 1531.9
  38 1546.92 58 1531.12
  39 1546.12 59 1530.33
  40 1545.32 60 1529.55


Relation products:

40CH Mux Demux DWDM Passive Optical Network PON Rackmount 4



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
- International express such as UPS, TNT, DHL, etc
- Internatioal air: CA, AA, EA, etc
- By sea
- Standard export sea port: Shenzhen, Hongkong, Ningbo
- Standard export airport: Shenzhen, Hongkong, Hangzhou, Shanghai
