Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine

  • Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine
  • Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine
  • Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine
  • Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-3D-2600
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-3D-2600 Grade 0.3dB, 3D
Polishing Scope All Type Of Connector Disk Size 179mm
Connector 1 Connector Machine 3D Interference
Highlight

fiber optic connector ferrule testing device

,

3D interference patch cord machine

,

fiber optic polishing production equipment
Leave a Message
Product Description
Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine
Model: KCO-3D-2600
Product Introduction

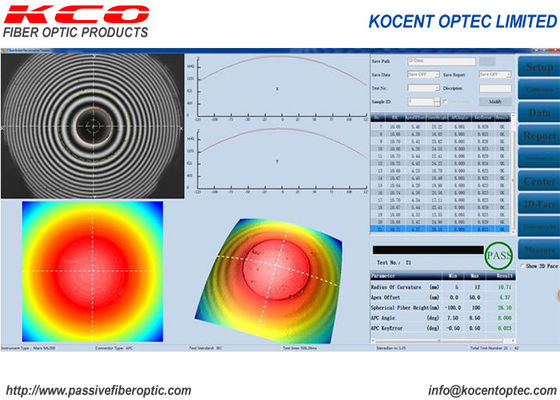

The Fiber Optic Connector Ferrule 3D Interference Testing Device is a high-performance, low-cost, auto-focus, non-contact fiber end-face interferometer. This advanced equipment accurately measures radius of curvature (ROC), apex offset, fiber height, grinding angle, and keying error of APC fiber connectors while displaying three-dimensional surface conditions in color images.
The system comprises two main components: an interferometer and specialized measurement software. It provides comprehensive guidance for polishing methodology optimization, including parameters for polishing pressure, time, speed, grain size, and pad hardness.
Computer integration supports data collection, printing, and network transmission capabilities. The device is compatible with various connector types: 2.5mm universal for FC/PC, SC/PC, ST/PC, E2000/PC, DIN, FC/APC, SC/APC connectors, and 1.25mm universal for LC/PC, MU/PC, LC/APC connectors.
Importance of End Face Geometry
Fiber optic connector performance is critically dependent on end face geometry, which determines contact areas during mating. Measuring parameters like radius of curvature, apex offset, and fiber height during polishing ensures both quality control and quality assurance.
Controlling end face geometry provides these essential benefits:
  • Guarantees optimal optical performance
  • Minimizes signal loss
  • Reduces back reflection
  • Ensures consistency in polishing process quality control
  • Provides long-term stability assurance under various environmental conditions including time, temperature, pressure, and vibration
Key Features
  • High measurement consistency with other brand equipment
  • Rapid 0.5-second measurement response
  • Precise data processing with high accuracy results
  • Robust algorithm for accurate measurements even with contaminated ferrule surfaces
  • High-precision, long-life fiber clamp
  • Automatic generation of 3D maps and fitting maps for detailed connector analysis
  • Automatic test reports and Excel format data for easy management and printing
Technical Specifications
Testing Item Testing Range Repeatability Reproducibility
Radius of curvature (mm) 3～∞ ±0.01 ±0.05
Optical fiber height (nm) -150~150 ±0.5 ±0.7
Vertex offset (μm) 0~500 ±0.5 ±0.1
APC angle (deg) 7~9 ±0.01 ±0.02
APC key error (deg) ±1 ±0.01 ±0.0

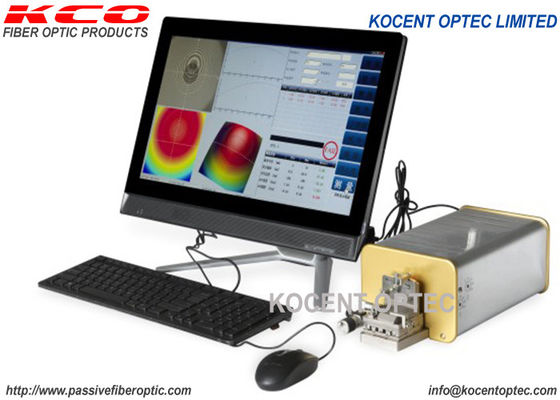

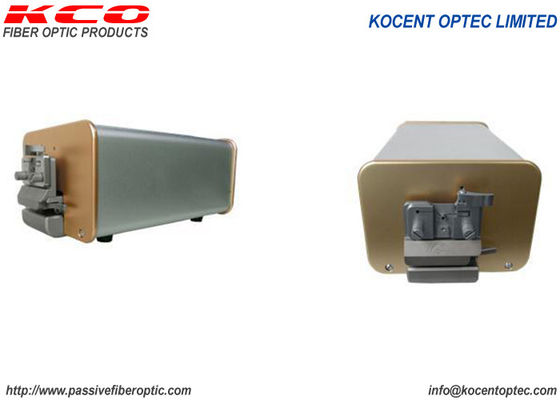

Device Image
Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine 0
Fiber Optic Patch Cord Production Process
Fiber Optic Connector Ferrule 3D Interference Testing Device Patch Cord Production Machine 1
OEM/ODM Services
We offer comprehensive OEM and ODM services for custom branding on cables, packaging, labels, and other components. Contact our sales team for personalized support and solutions.
Packing & Shipping
Packing: Standard export packaging with carton boxes, wooden boxes, and wooden pallets.
Shipping Options:
  • International express services (UPS, TNT, DHL)
  • International air freight
  • Sea freight
Standard Export Ports: Shenzhen, Hongkong, Ningbo
Standard Export Airports: Shenzhen, Hongkong, Hangzhou, Shanghai
