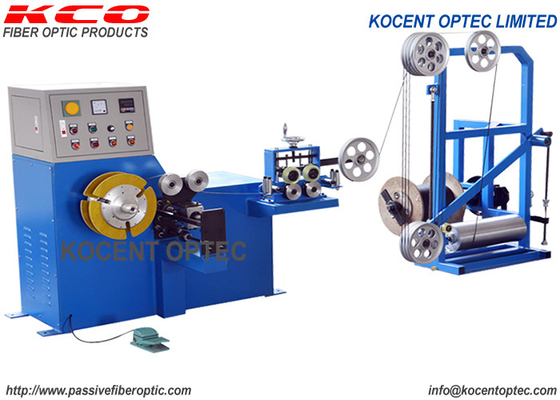

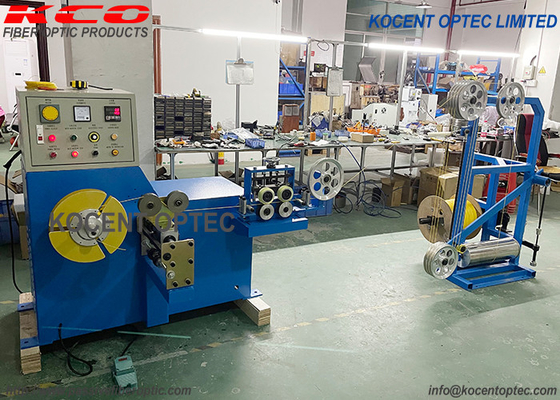

Half Automatic Fiber Optic Cable Cutting Machine with 1650 Spindle Motor Speed 220V Voltage for 500m Max Length FTTH Drop Cable

  • Half Automatic Fiber Optic Cable Cutting Machine with 1650 Spindle Motor Speed 220V Voltage for 500m Max Length FTTH Drop Cable
  • Half Automatic Fiber Optic Cable Cutting Machine with 1650 Spindle Motor Speed 220V Voltage for 500m Max Length FTTH Drop Cable
  • Half Automatic Fiber Optic Cable Cutting Machine with 1650 Spindle Motor Speed 220V Voltage for 500m Max Length FTTH Drop Cable
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-CUTTING-06
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-CUTTING-06 Cable Type FTTH Drop Cable
Length Max 500m Cable Dia. 5.0mm
Voltage 220V Machine Drop Cable Rolling Machine
Highlight

FTTH Drop Cable Rolling Machine

,

1800W Cable Rolling Machine

,

3m/S Cable Cutting Machine
Leave a Message
Product Description
Fiber Optic Cable Cutting Equipment / FTTH Drop Cable Rolling Cutting Machine
Half Automatic Fiber Optic Drop Cable Rolling Cutting Machine / Patch Cord Production Machine
  • Customizable cutting length in meters and number of cut cables
  • Adjustable unwinding/rewinding speed from 0-100% (recommended 60%) with 160mm coiled cable diameter
  • Advanced features: automatic cable detection alarm, automatic tracking, total length measurement, pigtail cutting, and coding data
  • Customs inspection exemption for smooth international import/export
  • Quick reel loading/unloading with cantilever guide wheel and linkage brake mechanism for tangle-free operation
  • Smooth rod guide wheel and tension-based automatic cable arrangement for neat, professional results (30-40 seconds per reel by experienced operators)
  • Self-expanding take-up shaft for secure fastening and easy removal
  • Right-side cable input with left-side output
  • Spindle motor speed: 1650 RPM
Technical Specifications
Parameter Specification
Power supply voltage AC220-240V
Power frequency 50/60Hz
Total power 1800W
Total mass 125Kg
Control method Mechanical button (customizable interface)
Cutting cable specification 2.0 - 12.0mm single/double core optical cable
Maximum cutting length ≤999 meters
Length error 3‰
Cutting speed 3m/s
Cable release method Automatic
Take-up method Single-disc or dual-disc linkage
Cable diameter 5.0~10.0mm
Maximum cutting length ≤999M
Shipping weight 400kgs, 3CBM
Reel outer diameter φ 380mm (adjustable)
Reel inner core φ 120mm
Reel width 40-120mm
Winding shaft speed 0-600r/min
Power supply 220VAC 50/60Hz
Cable cutting types FTTH drop cable, butterfly cable, self-supporting drop cable
Power 2.2kW
Cable send speed ≤2m/s (adjustable)
Fiber Optic Patch Cord Production Process
Half Automatic Fiber Optic Cable Cutting Machine with 1650 Spindle Motor Speed 220V Voltage for 500m Max Length FTTH Drop Cable 0
OEM/ODM Services
We offer custom branding solutions for your cable products, packaging, labels, and more. Contact our sales team for personalized OEM/ODM support.
Packaging Options
Standard export packaging including carton boxes, wooden cases, and wooden pallets.
Shipping Methods
  • International express: UPS, TNT, DHL
  • International air freight: CA, AA, EA
  • Ocean freight
  • Standard export sea ports: Shenzhen, Hongkong, Ningbo
  • Standard export airports: Shenzhen, Hongkong, Hangzhou, Shanghai
