Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine

  • Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
  • Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
  • Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-PM-JIG
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T,Western Union,L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
P/N KCO-PM-JIG Grade 0.3dB, 3D
Polishing Scope SC, FC, ST, LC, E2000, MRTJ, ... Disk Size 179mm
Connector 24, 36, 48 Connectors Machine Corner Pressure Polishing Machine
Highlight

fiber optic polishing jig fixture

,

grinding connector for patch cord

,

corner pressure polishing machine
Leave a Message
Product Description
Grinding Fiber Optic Jig Connector Fixture
Specialized fixture designed for securing fiber optic connectors, ferrules, and related components during the polishing process. Essential equipment in fiber optic patch cord production lines, ensuring high-quality end face finishing.
Key Features
  • Produces excellent optical fiber connector end face polishing quality with high 3D pass rate and low repair rate
  • Simple and flexible operation with user-friendly design
  • Compatible with SC, FC, LC, ST, E2000, SMA, MPO, MTP connectors via interchangeable adapters
  • Manufactured through multiple special processes for wear resistance, rust protection, and dimensional stability
  • IPC structure with independent compression for each connector
  • ≥98% pass rate with interference testing
  • Constructed from high-quality hardened S136 steel for extended service life
  • High stability and superior surface quality performance
Applications
  • Polishing fiber optic connectors, patch cords, and ferrule end faces
  • Processing non-standard materials including metal, glass, and ceramic end faces
  • Precision parts end face polishing operations
  • Simultaneously polishes 36-48 connectors in a single operation
Technical Specifications
Product Size 174mm × 174mm × 5.1mm
Weight Approximately 1.2kg
Application Fixed FC/APC Fiber Connector Polishing
Compatible Equipment Four-corner pressure optical fiber connector polishing machine
Material Hardened stainless steel 2316

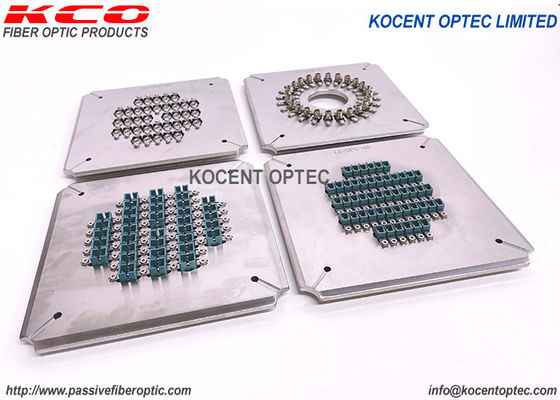

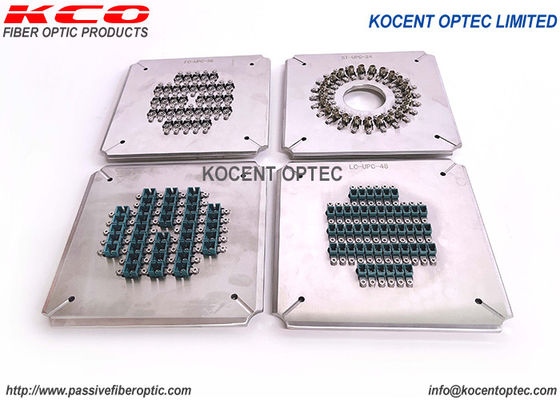

Product Images
Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 0 Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 1
Related Equipment
Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 2 Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 3 Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 4 Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 5 Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 6
Application Specifications by Type
Type Applications
D (Diamond)
  • Lapping for fiber optic connectors, fiber arrays, glass pig tails
  • Polishing for magnetic heads and hard disks
SC (Silicon Carbide)
  • Epoxy and glass removal
  • Lapping and polishing for plastic ferrules
AO (Aluminum Oxide)
  • Polishing for fiber optical connectors
  • Polishing for silicon wafer used in solar cells
Polishing Specifications
Type D (Diamond) SC (Silicon Carbide) AO (Aluminum Oxide) CO (Cerium Oxide) SO (Silicon Oxide)
30μm Green Light Green Green
15μm Yellow-Green Tawny Light Green Brown
Fiber Optic Patch Cord Production Process
Grinding Fiber Optic Jig Connector Fixture For Corner Pressure Patch Cord Polishing Machine 7
OEM/ODM Services
Custom branding services available for cables, packaging, labels, and other components. Contact our sales team for personalized OEM and ODM support.
Packaging & Shipping
  • Standard export packaging with carton boxes, wooden boxes, or wooden pallets
  • International shipping via UPS, TNT, DHL, and other carriers
  • Air freight and sea freight options available
  • Standard export ports: Shenzhen, Hong Kong, Ningbo
  • Standard export airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
All fiber polishing jigs and polishing modules can be customized according to specific customer requirements.
