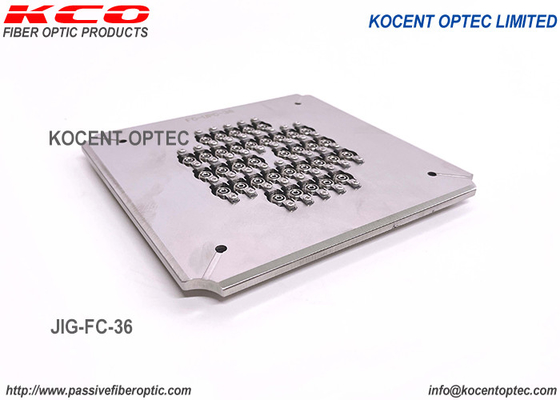

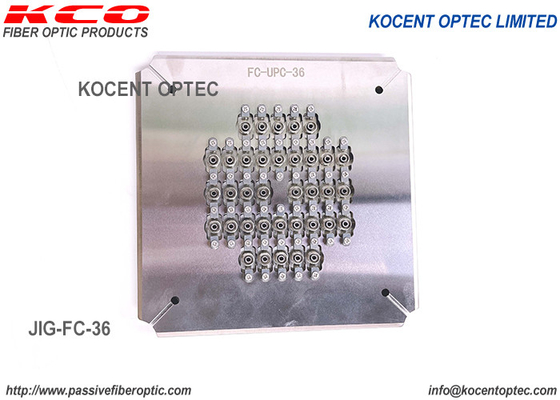

36 Connector Fiber Optic Polishing Jig with 0.3dB Grade and 3D Polishing for FC UPC APC Fiber Optic Connector Grinding Equipment
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | RoHS, ISO |
| Model Number | KCO-JIG-FC-36 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-JIG-FC-36 | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | FC PC APC | Disk Size | 179mm |
| Connector | 36 | Machine | Corner Pressure Polishing Machine |
| Highlight | 36 Connector Polishing Jig,IPC Structure Polishing Jig,UPC APC Grinder Angle Jig |
||
Product Description
36 Connector Fiber Optic Polishing Jig FC UPC APC Fiber Optic Connector Grinding Equipment
FC UPC APC Fiber Optic Connector Polishing Jig For Patch Cord Grinding Machine
The fiber optic polishing jig is an essential accessory for fiber optic patch cord production, designed for FC connectors with options for PC and APC configurations in 24 or 36 positions.
- Simple operation with easy connector changes
- High efficiency - polishes 36 connectors per cycle with 98%-100% first-pass yield
- IPC structure with independent compression for each connector
- Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, Insertion loss ≤0.20dB (typical)
- Replaceable accessories extend service life
- Constructed from high-quality, heat-treated hardened steel (S136) for durability
- Compatible with SC, FC, ST, LC connectors and customizable to customer requirements
Applications
- Polishing fiber optic ferrule end faces
- Precision part end face polishing
- Central pressurized polishing for stability
- Interchangeable connector plugs extend grinding plate life
- Independent pressurization eliminates ferrule length variation effects
All fiber polishing jigs/polishing modules can be customized to customer requirements.
Specifications
| Product Size | 174mm × 174mm × 5.1mm |
|---|---|
| Weight | Approximately 1.2kg |
| Application | Fixed FC/APC Fiber Connector Polishing |
| Compatible Polisher | Four-corner pressure optical fiber connector polishing machine |
| Material | Hardened stainless steel 2316 |
Detailed Applications by Product Type
| Product Type | Application |
|---|---|
| D |
|
| SC |
|
| AO |
|
| CO |
|
| SO | Final super-precise polishing of optical fiber connectors |
Technical Specifications by Type
| Type | D (Diamond) | SC (Silicon Carbide) | AO (Aluminum Oxide) | CO (Cerium Oxide) | SO (Silicon Oxide) |
|---|---|---|---|---|---|
| Grit Size/um | 30, 20, 16, 15, 12, 9, 6, 5, 3, 2, 1, 0.5, 0.3, 0.2, 0.1 | Green, Yellow-Green, Blue, Yellow, Tan, Brown-yellow | Light Green, Gray-green, Pink, Gray-green, White | Green, White, Brown, Yellow, Blue, White, Bright Green, Blue, White | White, Dark Red, Transparent |
| Recommended Medium | Water/Oil | Water/Oil | Water/Oil | SOQ-12D | Water |
Standard sizes: Disk - Φ70mm, Φ110mm, Φ127mm (5inch), Φ203mm (8inch)
Sheet - 114mm×114mm, 152mm×152mm (6inch), 228×228mm (9inch)
Other film sizes available upon request.
Sheet - 114mm×114mm, 152mm×152mm (6inch), 228×228mm (9inch)
Other film sizes available upon request.
Additional Services
- OEM/ODM Service: Custom branding available on cables, packaging, labels, etc.
- Packing Options: Standard export packing, carton boxes, wooden boxes, pallets
- Shipping Methods: International express (UPS, TNT, DHL), air freight, sea freight
- Export Ports: Shenzhen, Hongkong, Ningbo (sea); Shenzhen, Hongkong, Hangzhou, Shanghai (air)
