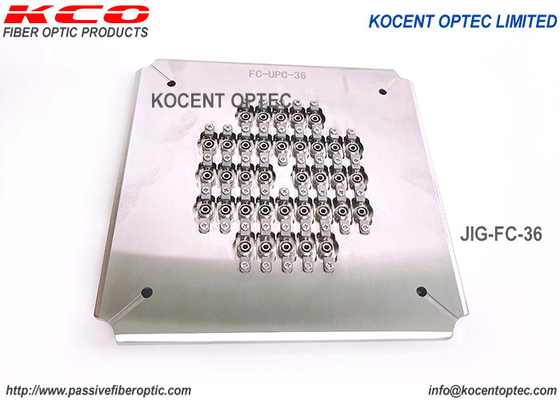

High Efficiency Fiber Optic Polishing Jig with IPC Structure and Independent Compression for FC UPC APC Connectors
| Place of Origin | China |
|---|---|
| Brand Name | KCO, Kocent Optec Limited |
| Certification | RoHS, ISO |
| Model Number | KCO-JIG-FC-36 |
| Minimum Order Quantity | Negotiation |
| Price | Negotiation |
| Packaging Details | paper bag, carton box |
| Delivery Time | 2~5 days after get payment |
| Payment Terms | T/T,Western Union,L/C |
| Supply Ability | 200,000 pcs/ month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| P/N | KCO-JIG-FC-36 | Grade | 0.3dB, 3D |
|---|---|---|---|
| Polishing Scope | FC PC APC | Disk Size | 179mm |
| Connector | 36 | Machine | Corner Pressure Polishing Machine |
| Highlight | Patch Cord Polishing Jig,Fiber Optic Connector Polishing Jig,UPC APC Grinder Sharpening Jig |
||
Product Description
FC UPC APC Fiber Optic Connector Polishing Jig For Patch Cord Grinding Machine
Product Description
The fiber optic polishing jig is an essential accessory for fiber optic patch cord production, designed for FC connectors with compatibility for PC and APC types. Available in 24 or 36 connector positions.
- Simple operation with easy connector changes
- High efficiency - polishes 36 connectors per cycle with 98%-100% first-pass yield
- IPC structure with independent compression for each connector
- Performance metrics: APC return loss ≥60dB, UPC return loss ≥55dB, Insertion loss ≤0.20dB
- Replaceable accessories extend service life
- Constructed from heat-treated hardened steel S136 for durability
- Customizable for SC, FC, ST, LC connectors per customer requirements
Key Features
- Designed for corner pressure polishing machines
- IPC jig technology ensures high finished yield rate
- Dual APC & UPC polishing capability
- High-quality stainless steel construction with heat treatment
- Quick-change jig system
- Superior centering accuracy
- Excellent end-face polishing quality
Product Images
Applications
- Polishing fiber optic ferrule end faces
- Precision parts end face polishing
- Non-standard material polishing (metal, glass, ceramic)
- Interchangeable plugs extend grinding plate service life
- Independent pressurization eliminates ferrule length variation effects
Note: Custom fiber polishing jigs/polishing modules available per customer requirements.
Related Machines
Technical Specifications
| Product Size | 174mm × 174mm × 5.1mm |
|---|---|
| Weight | Approximately 1.2kg |
| Application | Fixed FC/APC Fiber Connector Polishing |
| Compatible Polisher | Four-corner pressure optical fiber connector polishing machine |
| Material | Hardened stainless steel 2316 |
Application Matrix
| Product Type | Application |
|---|---|
| D | Lapping for fiber optic connectors, fiber arrays, glass pig tails (angle removal, rough grinding, medium polishing, fine finishing); Polishing for magnetic heads and hard disks; Lapping and polishing for optical glasses, optical crystal, LED; Lapping and polishing for semiconductor wafers; Edge polishing for silicon wafers |
| SC | Epoxy and glass removal; Lapping and polishing for plastic ferrules; Fine finishing and polishing for magnetic heads |
| AO | Polishing for fiber optical connectors; Polishing for silicon wafers used in solar cells; Polishing for hard disks; Polishing for ITO; Lapping and polishing for optical crystal |
| CO | Final polishing for fiber optical connectors; Polishing for optical devices |
| SO | Final super-precise polishing of optical fiber connectors |
Production Process
Additional Services
OEM/ODM Service: Custom branding available on cables, packaging, labels, or other components. Contact our sales team for details.
Packaging & Shipping
- Packaging: Standard export packing in carton boxes, wooden boxes, or on wooden pallets
- Shipping Methods:
- International express (UPS, TNT, DHL)
- International air freight
- Sea freight
- Export Ports: Shenzhen, Hong Kong, Ningbo
- Export Airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
