ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture

  • ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture
  • ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture
Place of Origin China
Brand Name KCO, Kocent Optec Limited
Certification RoHS, ISO
Model Number KCO-JIG-ST-24
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details paper bag, carton box
Delivery Time 2~5 days after get payment
Payment Terms T/T, Western Union, L/C
Supply Ability 200,000 pcs/ month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Fiber Optic Connector Polishing Fixture Grade 0.3dB, 3D
Polishing Scope ST PC Disk Size 179mm
Connector 24 Application Fixed FC / APC Fiber Connector Polished
High Light

Optical Fiber Polishing Jig

,

ST PC Fiber Polishing Jig

,

Fiber Optic Connector Polishing Fixture
Leave a Message
Product Description

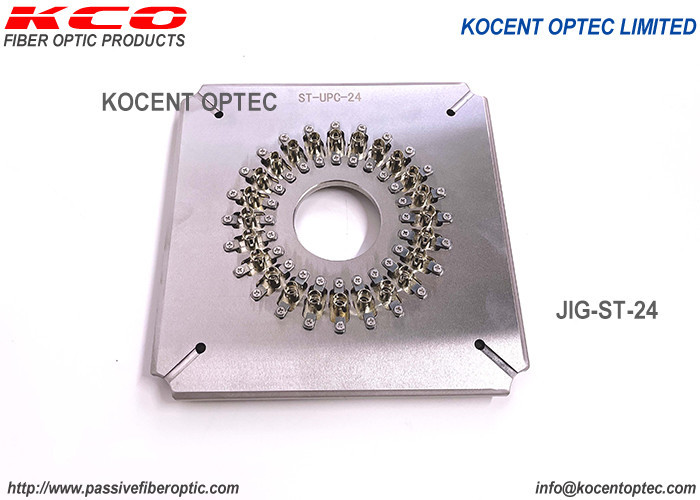

ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture



Description:

- The fiber optic polishign jig is is one of the indispensable accessories for the production of fiber optic patch cords.

- It is special designed for ST connector, use to fix the ST fiber optic connector when polishing.

- It is available for PC polishing type, come with 24 positions of connector (less or more position can be made according to customer request)
- High efficiency, polishing 24 tconnectors in one cycle. The first pass yield for end face quality reach 98%～100%
- Fiber polishing fixture using high quality steel with heated treat, the hardened steel S136 providing long service life.

- This fiber polishing fixture can be designed with the jig of SC, FC, ST, LC, etc, and also according to the customer request.

- The fiber polishing fixture is IPC Structure, Independent compression of each connector. The fiber polishing fixture pass rate with Interference> = 98% (100% Typical, according to IEC).


Application:

- Mainly used for polishing fiber optic ferrule end face; Or precision parts end face polishing; Or non-standard materials like metal, glass, ceramic end face polishing;

- Made with high quality, by using hardened steel;

- Adopt central pressurized way to polish, more stable;

- The plugs of connector polishing jig can be interchanged, prolong the service life of grinding plate;
- This fiber polishing jig adopt independent pressurized way, eliminate ferrules show the different length effects on polishing;
- Note: All kinds of fiber polishing jigs/Polishing Module can be customized according to customers' requirement.





Feature:

- Quick to change jigs,

- Easy and flexible to operate
- Super centering accuracy
- Excellent connector end-face polishing quality

- Easy to change, simple and flexible to operate.

- Designed for corner pressure polishing machine.
- Using a new I.P.C jig technology (every ferrule is pressed singly) and making the finished yield rate much higher.
- Dual APC & UPC polishing and Accommodating most styles of connectors.
- High efficiency to deal with all kinds of connectors.
- UPC return loss ≥55dB , Insertion loss ≤0.20dB ( typical)

-The polisher was made by high quality stainless steel with heat treatment and it is high accuracy and durability.



Product pictures:



ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture 0

Specification

Product Size 174mm*174mm*5.1mm
Wet weight About 1.2kg
Application Fixed FC / APC Fiber Connector Polished
Suitable Fiber Connector Polisher Four-corner pressure optical fiber connector polishing machine
Material Hardened stainless steel2316





Specifications:

Type D(Diamond) SC (Silicon Carbide) AO(Aluminum Oxide) CO(Cerium Oxide) SO(Silicon Oxide)
Grit Size/um 30 Green Light Green Green 　 　
20 　 　 　 White 　 　
16 　 　 　 White 　 　
15 Yellow-Green Tawny Light Green Brown 　 　
12 　 　 　 Yellow 　 　
9 Blue Orange Gray-green Blue 　 　
6 Yellow 　 　 　 　
5 　 　 Gray-green White 　 　
3 Pink Tan Pink & White 　 　
2 　 　 Gray-green Bright Green 　 　
1 off-white Lavender Gray-green Blue 　 　
0.5 off-white Brown-yellow 　 White White 　
0.3 　 　 　 White Dark Red 　
0.2 Grey 　 　 　 　
0.1 Light Brown 　 White 　 　
0.02 　 　 　 　 　 Transparent
0.01 　 　 　 　 　 Transparent
Recommended Polishing Medium Water/Oil Water/Oil Water/Oil SOQ-12D Water
Standard Size

Disk:Φ70mm,

Φ110mm,

Φ127mm(5inch),

Φ203mm(8inch)

Sheet:

114mm*114mm,

152mm*152mm (6inch),

228*228mm (9inch)
Note: Other film sizes are available upon request.



Fiber Optic Patch Cord Production Machine List:

- Full automatic fiber optic cable cutting machine,

- Full automatic fiber optic cable stripping machine,

- Fiber optic housing crimping machine

- 353ND glue centrifuger

- Full automatic 353ND Glue injection machine

- Curing Oven

- Fiber optic ferrule polishing machine

- Fiber optic microscope

- IL & Rl tester

- APC end-face 3D tester

- VFL ( Red laser pen)



Introduction:

- Kocent Optec Limited is one of lead passive fiber optic supplier in China. Company is based on Shenzhen City, Guangdong, China.

- Have more then 10 years of experience in fiber optic field.

- Our product catalog including:

+ Fiber optic patch cord production machine

+ Fiber Optic Cable ( indoor cable, ftth drop cable, outdoor cable)

+ Fiber Optic Splitter (FTB coupler splitter, PLC Splitter, Multimode Splitter, ...)

+ Fiber Optic Patch Cord and Pigtail ( Common type SC, FC, LC, ST Patch cord, MPO/MTP Patch cord, CPRI patch cord, Outdoor FTTA Waterproof patch cord such as ODVA, FullAxs, ODC, PLDC, Huawei Mini SC, ....)

+ Fiber Optic Acessories: fiber optic attenuator, fiber optic adapter, fiber optic connector housing, fiber optic ferrule, fiber optic protection tube, ...

+ Fiber Optic Splice Enclosure Box ( Inline type, Dome type, Aerial type, ...)

+ Fiber Optic Distribution Box (Steel Tape Patch Panel, SMC cross cabinet, ODF, Outdoor distribution box, indoor termination box, ...)

- OEM and ODM service is opening with all customer.



Fiber Optic Patch Cord Production Process:

ST PC Optical Fiber Polishing Jig Fiber Optic Connector Polishing Fixture 1



OEM/ODM Service:
- If you want to show your own brand LOGO on the goods such as cable, package bag, label or any where. Our OEM and ODM service is always ready to do it. Please contact with our sales team to get best support.



Packing:
- According to Stardard Export Packing.
- Carton box, wooden box, wooden pallet.



Shipping:
