Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments

  • Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments
  • Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments
  • Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments
  • Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments
Place of Origin Guangdong, China
Brand Name KCO
Certification ISO9001, RoHS
Model Number KCO-OTT-MPO-SM-12
Minimum Order Quantity Negotiation
Price Negotiation
Packaging Details PE bag, carton box, wooden roll
Delivery Time 2~5 days after get payment
Payment Terms Western Union,T/T,L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Connector 1 MPO MTP Connector 2 FC, LC, SC, ST, E2000, ...
Core 4 6 8 12 16 24 Cores Insertion Loss 0.35dB
Return Loss 55dB Cable Cover Material LSZH, TPU
Color Black Application Tactical Army, Aviation
Highlight

FTTA Fiber Optic Patch Cord

,

Fiber Optic Patch Cord

,

MPO SC fibre optic patch cable
Leave a Message
Product Description

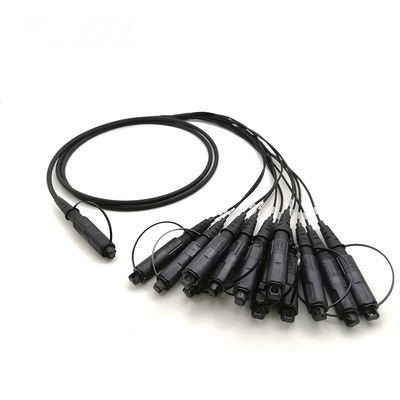

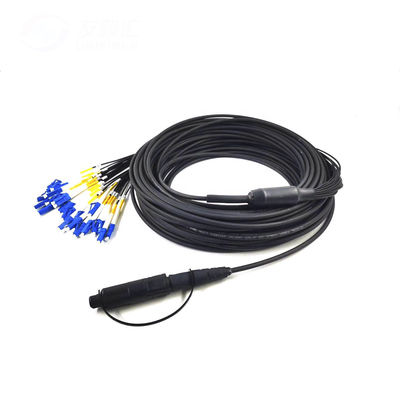

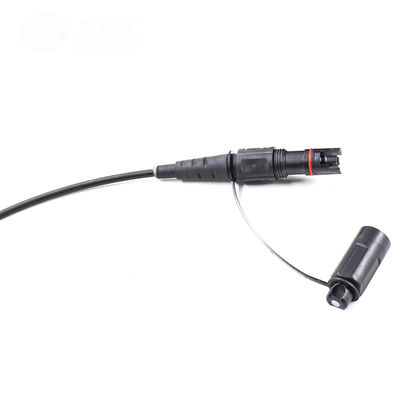

FTTA MPO MTP Outdoor Waterproof Fiber Optic Patch Cord MPO to SC Hardened
FTTA CPRI OptiTap Compatible H Connector MPO SC Hardened Outdoor Waterproof Fiber Optic Patch Cable
Introduction
  • Designed for military field fiber optic cable support with neutral bayonet locking structure for fast connections
  • Features multi-core blind insertion with low connection loss and high reliability
  • Rugged, waterproof, dustproof design resistant to harsh environments
  • Compatible with Corning OptiTap connector system for FTTA and 5G tower applications
  • Provides robust sealed connection solution for FTTH connectivity with SC/APC type connection
  • Suitable for military computer systems, airborne/shipborne equipment, and outdoor optical cable systems
  • Available in 2, 4, 6, 8, 12, and 24 core configurations
Key Features
  • Compatible with Corning OptiTap Waterproof and MPO MTP system connectors
  • Available in single fiber or multi-fiber configurations
  • In-line connection capability
  • Cable diameter options: 2.0mm to 7.0mm
  • IP67 rated for water and dust protection
  • Bird proof and rodent resistant
  • Low profile in-line receptacle available
  • Tool-free installation
Applications
  • 3G/4G/5G Base Stations
  • Aerospace & Defense systems
  • Equipment diagnosis
  • Fiber optic sensors
  • FTTA/FFTP/BBU/RRU applications
Technical Specifications
Parameters Specifications
Connector Side A: MPO MTP waterproof connector
Side B: LC, SC, ST, FC, MPO/MTP, ODVA connector, DLC, NSN, Ericsson, Huawei
Fiber Count 2, 4, 6, 8, 12, 24 cores
Fiber Type SM: G.652D, G.657A (A1, A2, B3)
MM: OM1, OM2, OM3, OM4, OM5
Jacket Materials LSZH, TPU, PE
Cable Diameter 4.8mm, 5.0mm, 5.5mm, 6.0mm, 6.5mm, 7.0mm
Testing Wavelengths SM: 1310±30nm, 1550±30nm
MM: 850±30nm, 1300±30nm
Insertion Loss ≤ 0.3dB (PC/UPC/APC)
Return Loss ≥45dB (PC/UPC), ≥55dB (APC), ≥35dB (UPC)
Exchangeability ≤ 0.2dB
Operating Temperature -14℃ to +85℃
Storage Temperature -40℃ to +85℃
Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments 0 Outdoor Waterproof Fiber Optic Patch Cord with MPO MTP Connector and IP67 Protection for Harsh Environments 1
OEM/ODM Services
Custom branding available on cables, packaging, and labels. Contact our sales team for OEM/ODM support.
Packaging & Shipping
  • Standard export packaging: carton box, wooden box, or pallet
  • Shipping options: international express (UPS, TNT, DHL), air freight, or sea freight
  • Export ports: Shenzhen, Hong Kong, Ningbo
  • Export airports: Shenzhen, Hong Kong, Hangzhou, Shanghai
